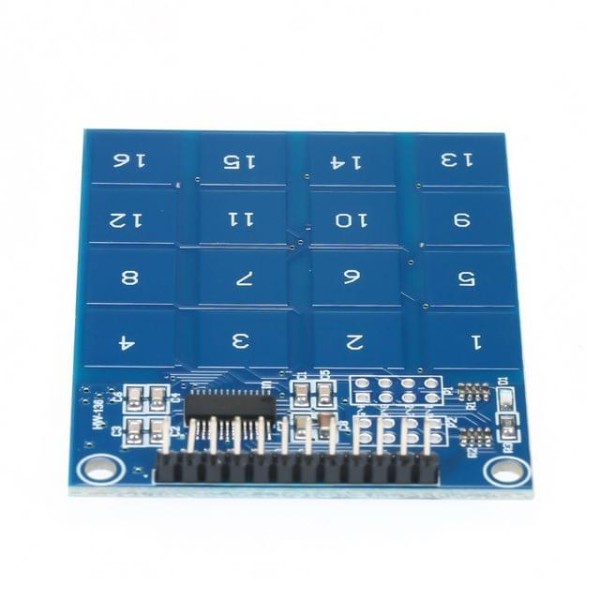

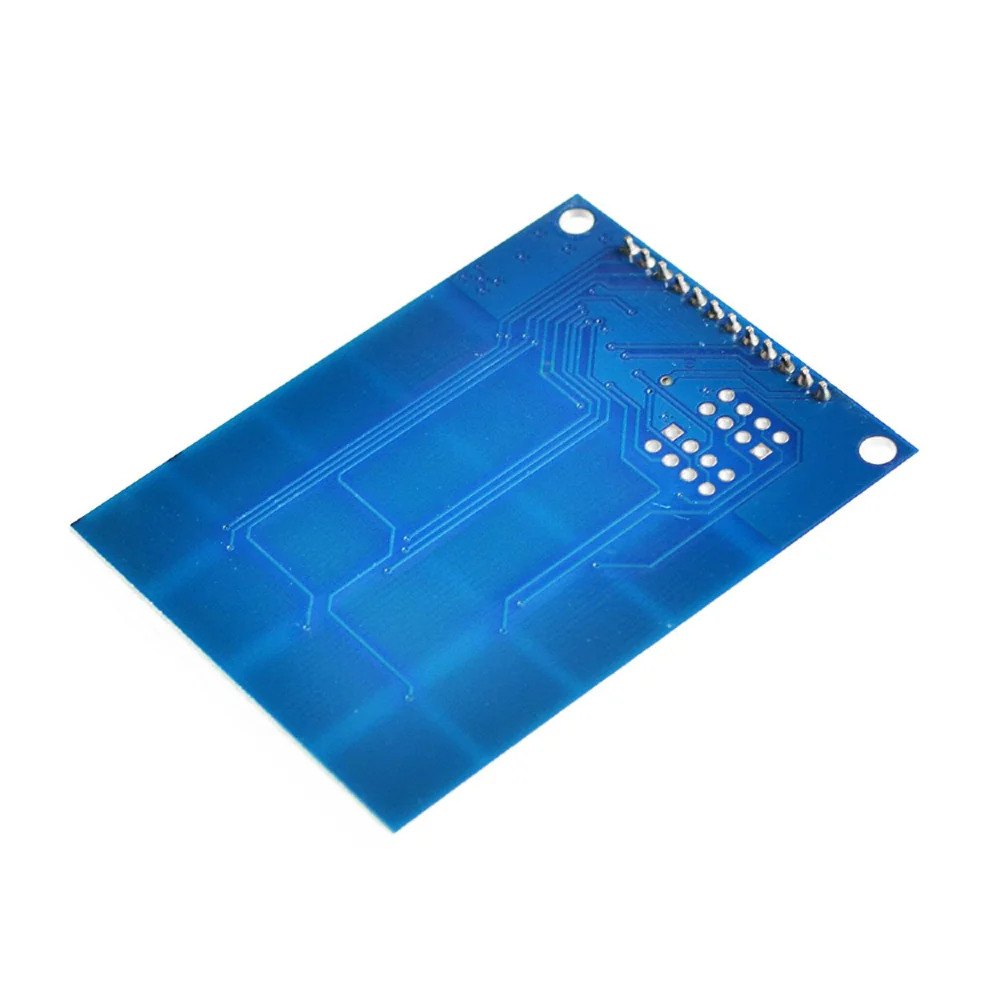

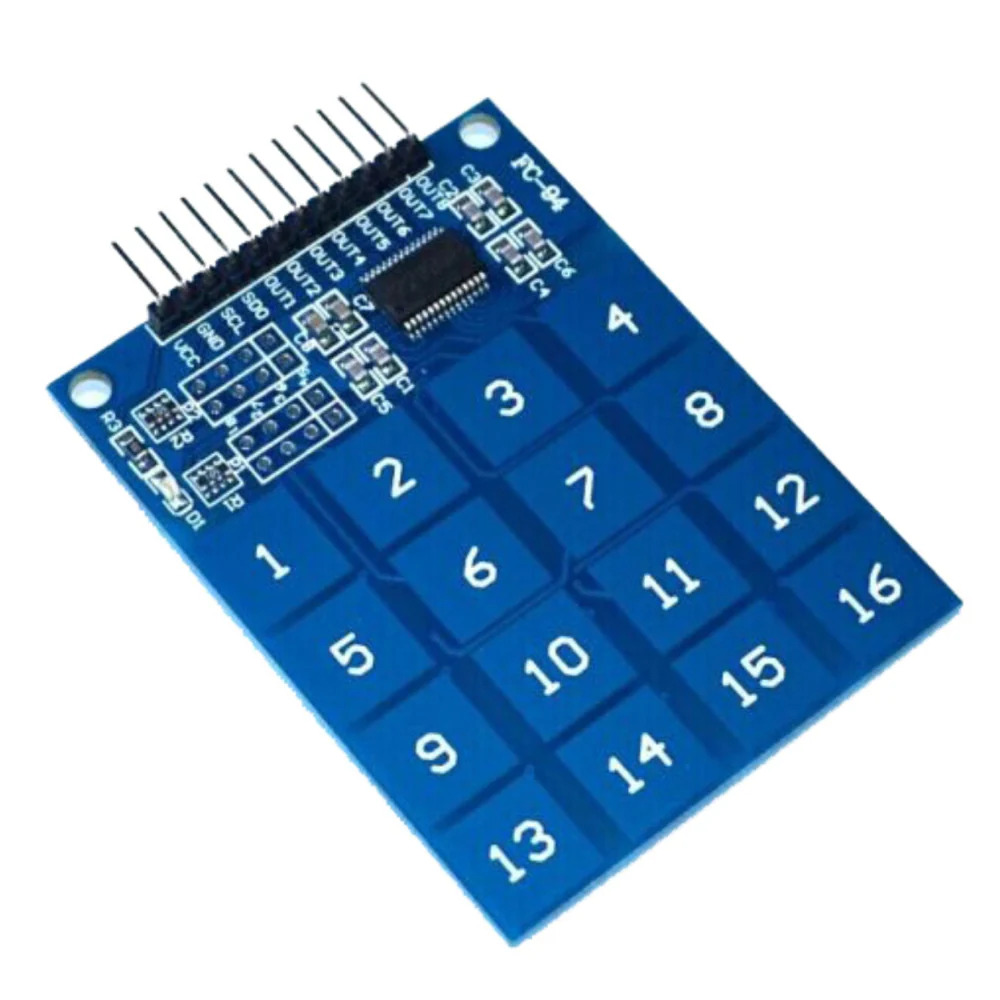

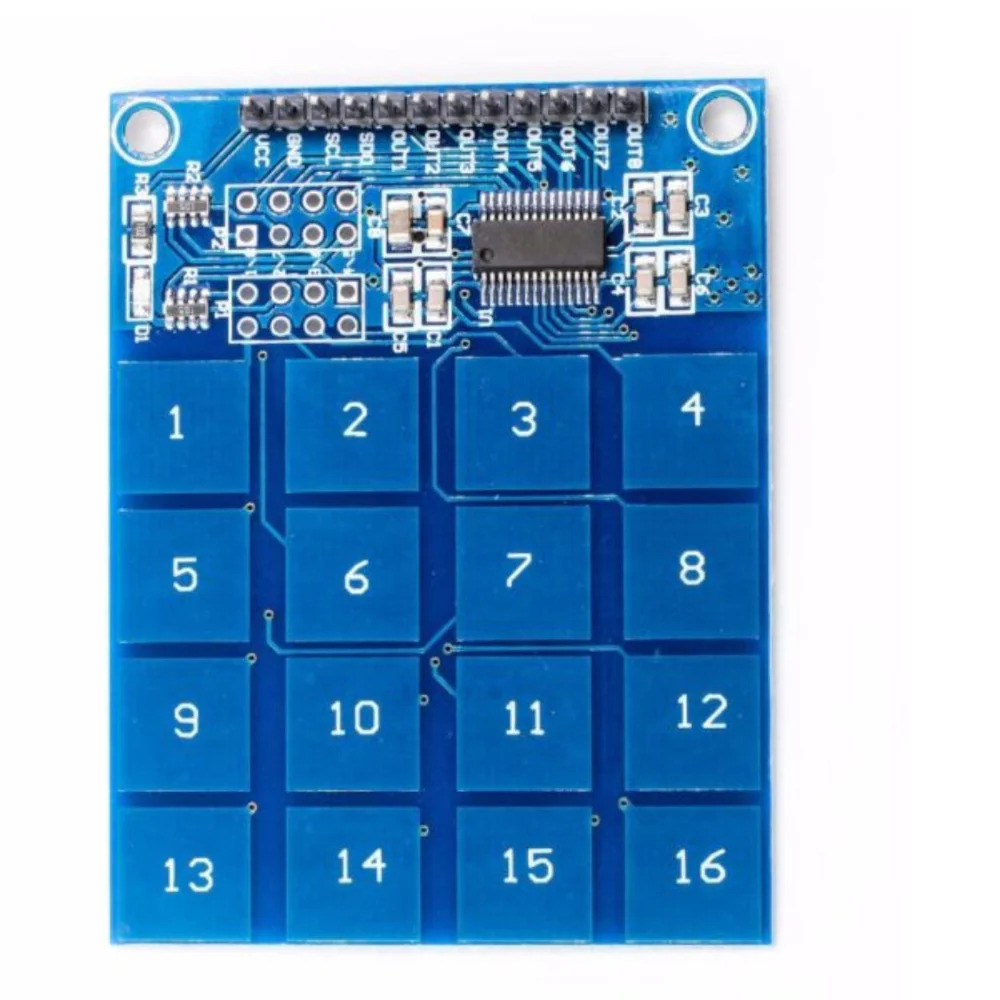

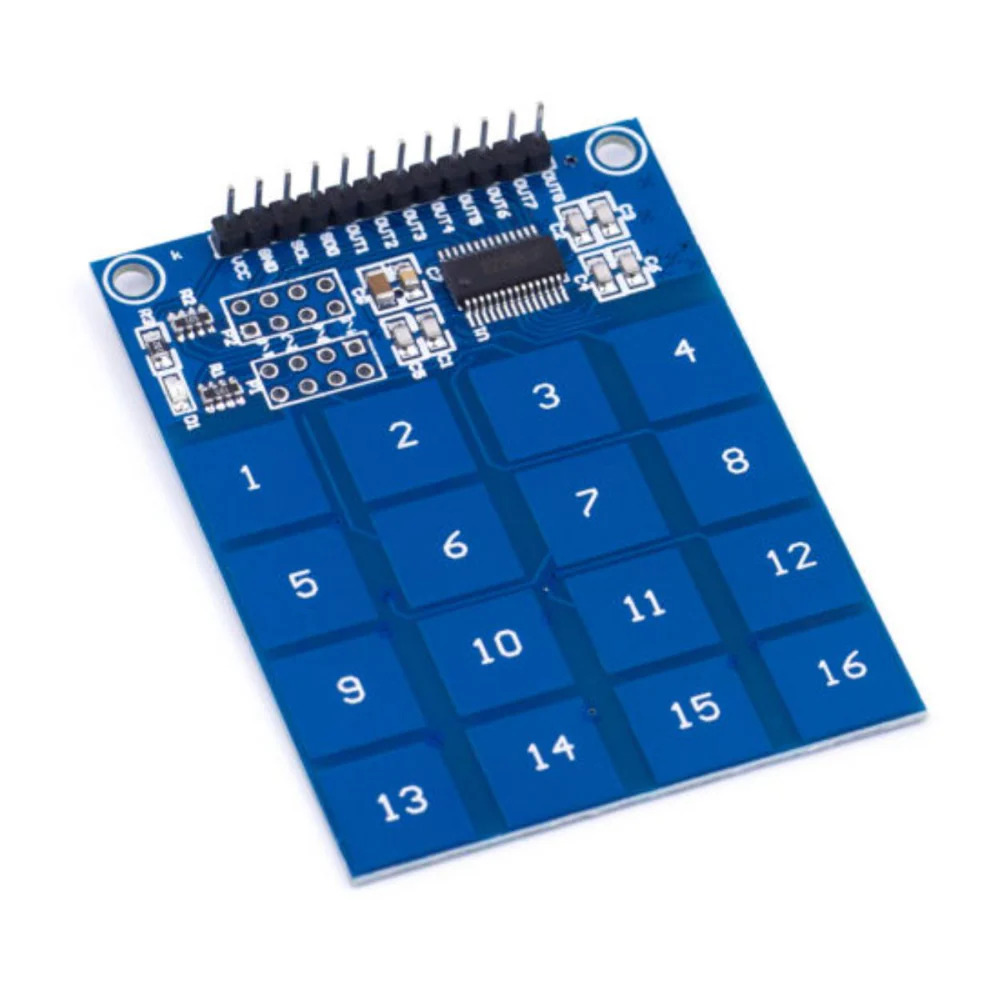

TTP229 16 Channel Capacitive Touch Sensor Module (16-Key Capacitive Touch Keypad Module)

The TTP229 16 Channel Capacitive Touch Sensor Module is a multi-key touch keypad designed to replace traditional mechanical switches with capacitive touch inputs. Based on the TTP229 touch controller IC, it provides sixteen independent touch-sensitive channels and communicates through a two-wire serial interface, reducing the number of I/O pins required on the host microcontroller. The module is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other development platforms, making it ideal for touch control panels, password keypads, home automation, interactive devices, and embedded electronics projects.

Key Features -

• Based on TTP229 touch controller IC

• Sixteen independent capacitive touch channels

• Two-wire serial digital output

• Replaces mechanical keypad switches

• Fast touch response

• Stable and noise-resistant operation

• Low power consumption

• Compact PCB module

• Easy interface with microcontrollers

• Suitable for touch keypad applications

Specifications -

• Product type - Capacitive Touch Sensor Module

• Controller IC - TTP229

• Operating voltage - 2.4V to 5.5V DC

• Number of channels - 16

• Output type - Serial Digital Output

• Interface mode - 2-Wire Serial

• Response time - Fast Touch Detection

• Operating current - Low Power

• Mounting type - PCB Module

• Operating temperature - 0C to 50C

Applications -

• Touch keypads

• Password entry systems

• Home automation

• Smart control panels

• Consumer electronics

• Embedded systems

• Interactive devices

• DIY electronics projects
