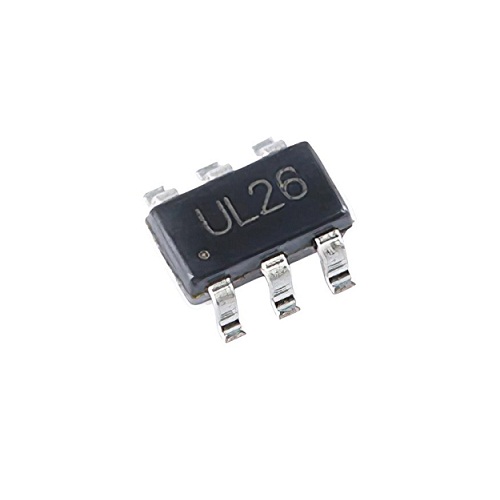

USBLC6-2SC6 TVS Diode 5VWM 15VC SOT-23-6 (2-Channel Rail-to-Rail ESD Protection Diode)

The USBLC6-2SC6 is a two-channel TVS diode designed to provide fast transient voltage and Electrostatic Discharge protection for sensitive electronic circuits. Its rail-to-rail steering configuration helps protect signal lines from voltage transients while maintaining low capacitance. The compact SOT-23-6 package is suitable for space-constrained Printed Circuit Board designs and high-speed interfaces.

Key Features -

• Two-channel transient voltage protection

• Rail-to-rail steering configuration

• 5V maximum reverse standoff voltage

• 6V minimum breakdown voltage

• 15V maximum clamping voltage

• 6A peak pulse current for 8/20us waveform

• 150W peak pulse power

• Low capacitance of 0.8pF at 1MHz

• Compact SOT-23-6 package

• Designed for sensitive electronic interface protection

Specifications -

• Product Type - TVS Diode

• Part Number - USBLC6-2SC6

• Configuration - Steering, Rail to Rail

• Number of Unidirectional Channels - 2

• Reverse Standoff Voltage - 5V Maximum

• Breakdown Voltage - 6V Minimum

• Clamping Voltage - 15V Maximum at Ipp

• Peak Pulse Current - 6A, 8/20us

• Peak Pulse Power - 150W

• Capacitance - 0.8pF at 1MHz

• Package / Case - SOT-23-6

• Mounting Type - SMD/SMT

Applications -

• USB interface protection

• High-speed data lines

• Electrostatic Discharge protection

• Transient voltage protection

• Communication interfaces

• Consumer electronics

• Computer peripherals

• Mobile and portable devices

• Printed Circuit Board interfaces

• Sensitive digital circuits
