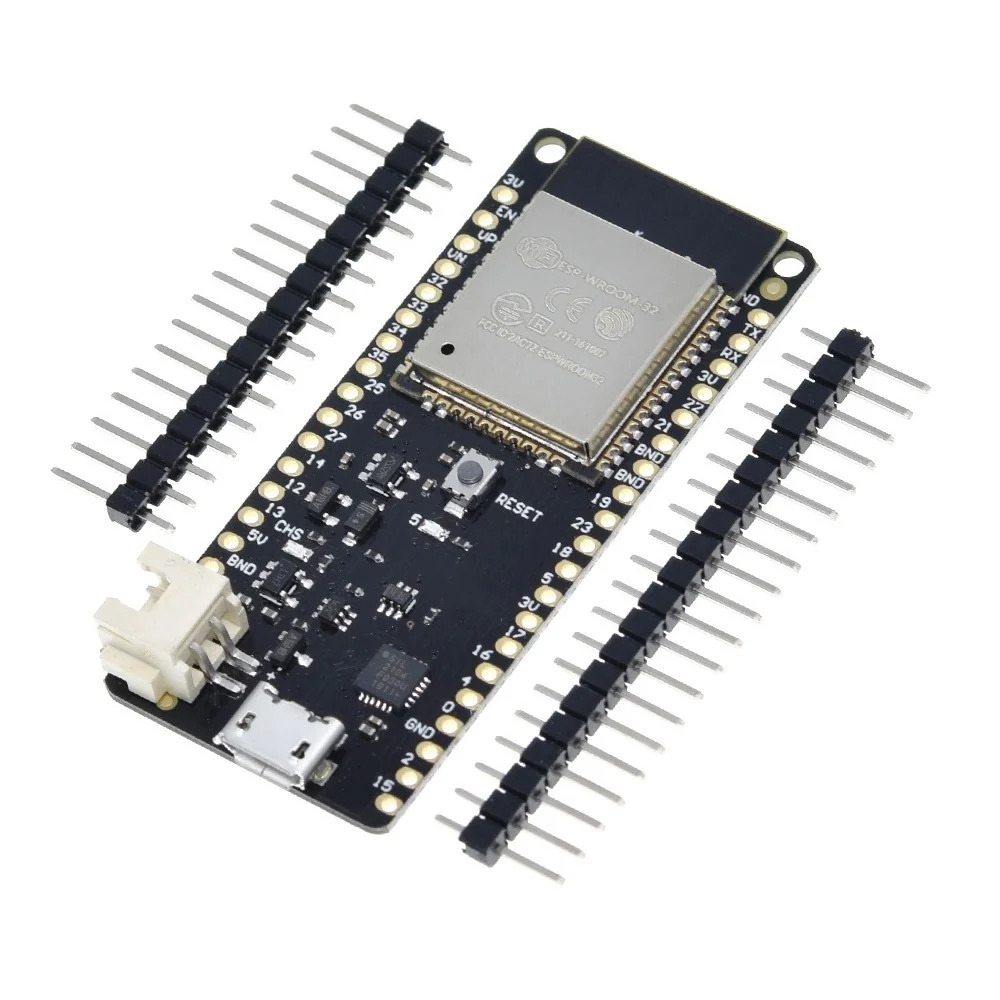

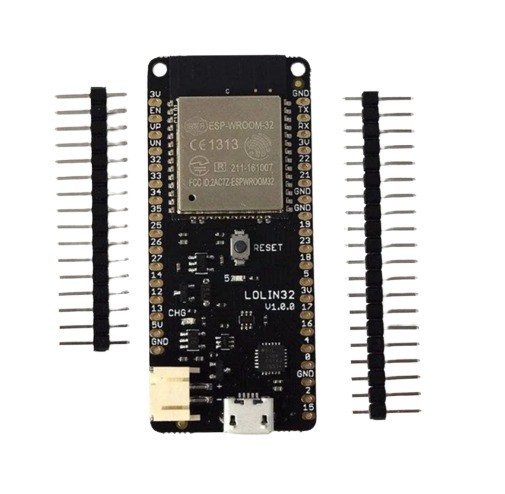

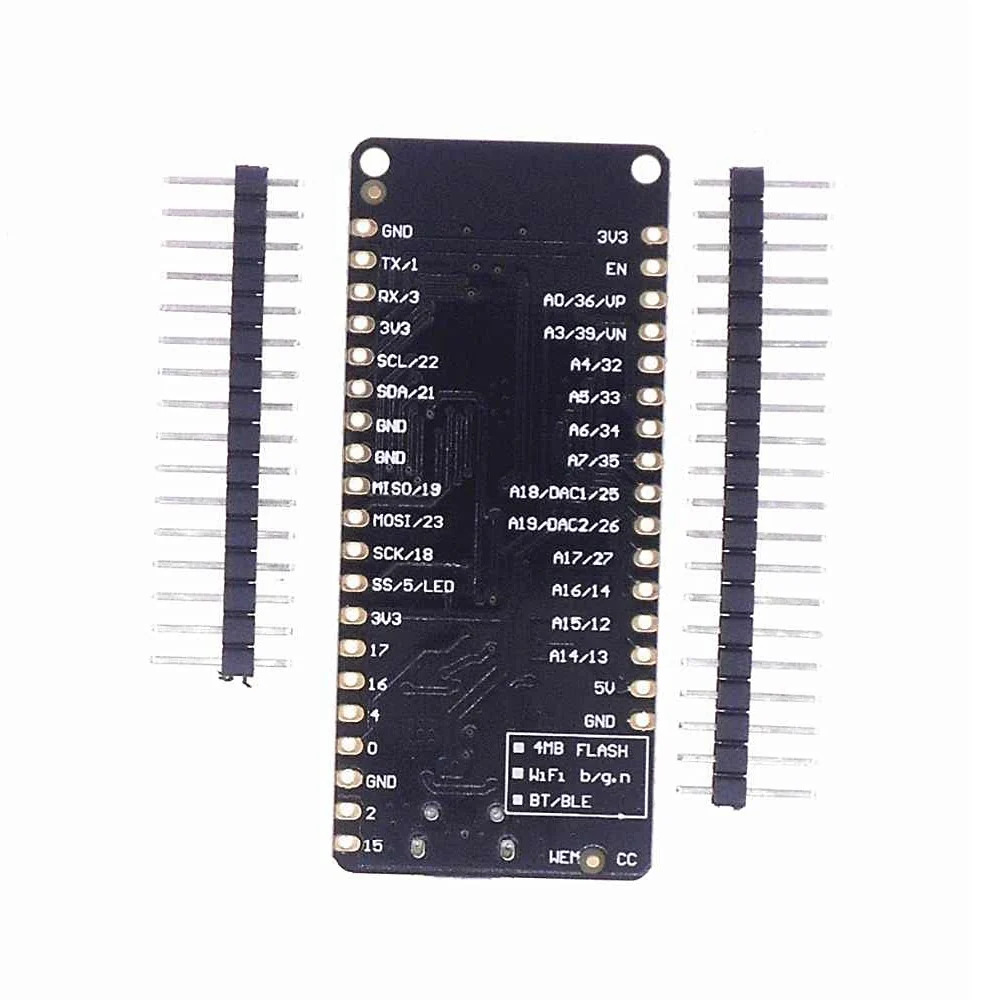

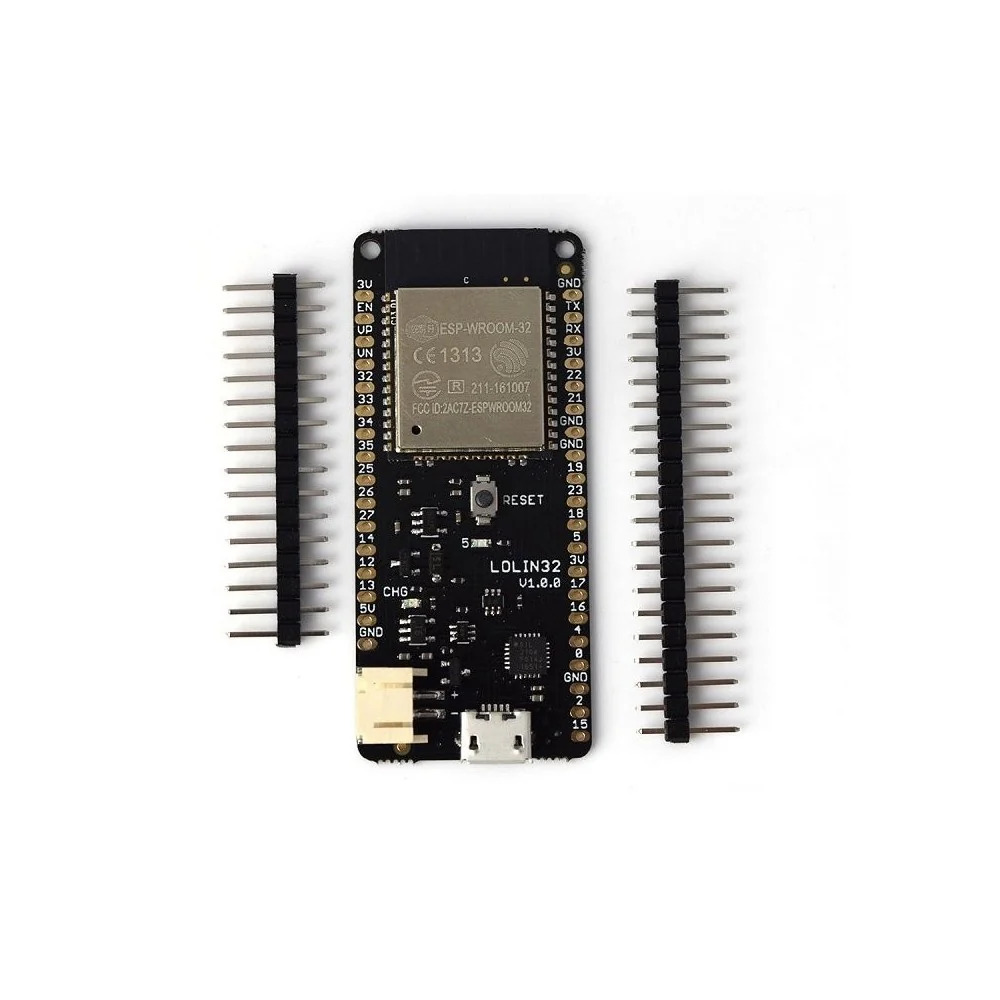

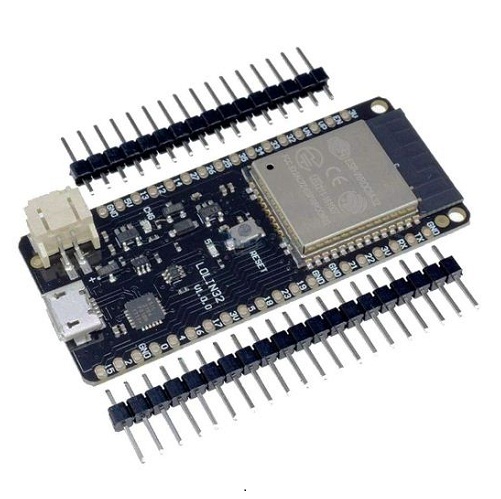

WeMos LOLIN32 V1.0.0 based on ESP-WROOM-32 Rev1 WiFi Bluetooth Development Board (ESP32 Dual-Core IoT Development Board)
The WeMos LOLIN32 V1.0.0 is a powerful ESP32-based development board featuring the ESP-WROOM-32 Rev1 module. It combines dual-core processing, built-in Wi-Fi and Bluetooth connectivity, and onboard Li-Po battery charging, making it an ideal solution for IoT, smart home, robotics, wireless communication, and embedded system development. It includes 4MB Flash memory, supports the Arduino IDE, MicroPython, and ESP-IDF, and provides multiple GPIO interfaces for versatile hardware integration.
Key Features -
• ESP-WROOM-32 Rev1 dual-core 32-bit microcontroller
• Built-in 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 (BR/EDR + BLE)
• 240MHz maximum CPU clock speed
• 4MB onboard Flash memory
• USB interface for programming and power supply
• Onboard Li-Po battery charging circuit with PH2.0 connector
• Compatible with Arduino IDE, ESP-IDF and MicroPython
• Low-power operation with deep sleep support
Specifications -
• Product type - ESP32 Development Board
• Model - WeMos LOLIN32 V1.0.0
• Microcontroller - ESP-WROOM-32 Rev1 (ESP32)
• CPU - Xtensa Dual-Core 32-bit LX6
• Clock speed - Up to 240MHz
• Flash memory - 4MB
• SRAM - 520KB
• Operating voltage - 3.3V
• Input voltage - 5V via USB or 3.7V Li-Po Battery
• Wi-Fi - IEEE 802.11 b/g/n (2.4GHz)
• Bluetooth - Bluetooth v4.2 BR/EDR & BLE
• Digital I/O pins - Up to 26 GPIOs
• Analog inputs - Up to 12 ADC Channels
• DAC outputs - 2 Channels
• Communication interfaces - UART, SPI, I2C, I2S, PWM, CAN, SDIO
• USB interface - Micro USB
• Battery connector - PH2.0 Li-Po Connector with charging support
• Operating temperature - -40°C to +85°C
• Board dimensions - Approximately 58 × 25mm
Applications -
• Internet of Things (IoT) projects
• Smart home automation
• Wireless sensor networks
• Robotics and automation
• Industrial monitoring systems
• Wi-Fi and Bluetooth communication projects
• Data logging systems
• Embedded electronics development
