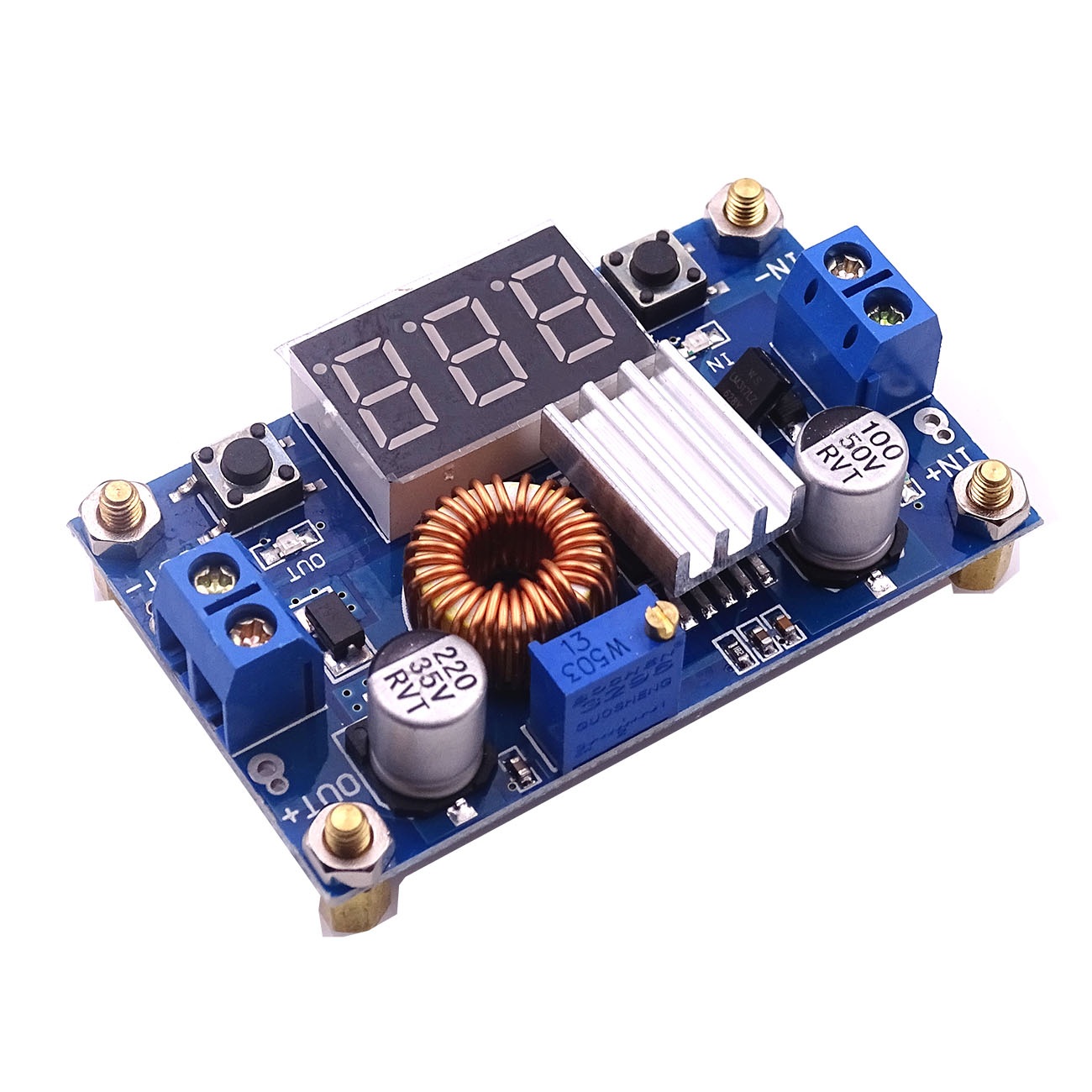

XL4015 5A Step Down Adjustable Power Supply with LED Voltmeter
The XL4015 5A Step Down Adjustable Power Supply with LED Voltmeter is a versatile DC-DC buck converter module designed to provide a stable, adjustable output voltage from a higher DC input source. Based on the XL4015 switching regulator IC, this module supports adjustable output control in constant voltage (CV) mode with up to 5A load capability. The integrated LED voltmeter display shows the real-time output voltage for easy monitoring and precise adjustment.
This power supply module is ideal for DIY power systems, battery chargers, robotics projects, LED drivers, and other applications requiring efficient and adjustable DC power. The high efficiency switching design minimizes heat generation, and the LED display allows quick visual feedback of the output voltage.
KEY FEATURES
- Adjustable DC-DC step down (buck) converter
- LED voltmeter for real-time output voltage display
- Up to 5A output current capability
- High efficiency switching regulator design
- Onboard potentiometer for easy voltage adjustment
- Compact board with clear voltage/output indicators
- Suitable for microcontrollers, LEDs, and DC powered devices
SPECIFICATIONS
- Regulator IC XL4015
- Input Voltage Range DC ~8V to ~32V
- Adjustable Output Voltage Range DC ~1.25V to ~30V
- Max Output Current 5A
- Conversion Type Step-down (buck)
- LED Voltmeter Displays output voltage
- Operating Temperature Standard ambient
INTERFACES
- VIN DC input positive
- GND Ground
- VOUT Regulated DC output positive
- GND Ground (output)
- Voltage adjust potentiometer
- LED voltmeter display
