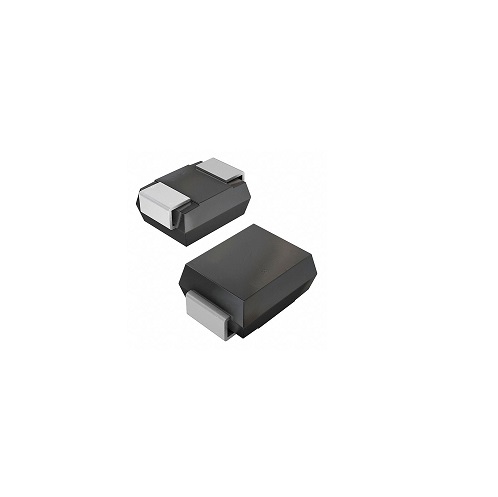

Zener Diode 3.3V 500mW SOD-123 BZT52H-C3V3 (SMD Zener Voltage Regulator Diode)

The BZT52H-C3V3 Zener Diode is a single surface-mount Zener diode designed for voltage regulation, voltage reference, clamping, and circuit protection applications. With a 3.3V Zener voltage and 500mW power dissipation, it is suitable for low-voltage electronic circuits and compact PCB assemblies.

Key Features -

• 3.3V Zener voltage

• 500mW power dissipation

• 95 Ohm Zener impedance

• 10uA maximum reverse leakage current

• Single diode configuration

• Compact SOD-123 package

• SMD/SMT mounting

• RoHS compliant

• Suitable for voltage regulation and protection

Specifications -

• Product Type: Zener Diode

• Part Number: BZT52H-C3V3

• Zener Voltage: 3.3V

• Power Dissipation: 500mW

• Zener Impedance: 95 Ohm

• Maximum Reverse Leakage Current: 10uA

• Reverse Voltage: 1V

• Element Configuration: Single

• Mounting Type: SMD/SMT

• Case / Package: SOD-123

• RoHS: Compliant

Applications -

• Voltage regulation

• Voltage reference circuits

• Overvoltage protection

• Voltage clamping

• Power supply circuits

• Microcontroller protection

• Signal protection

• Electronic control circuits

• PCB protection circuits

• General-purpose electronic applications
