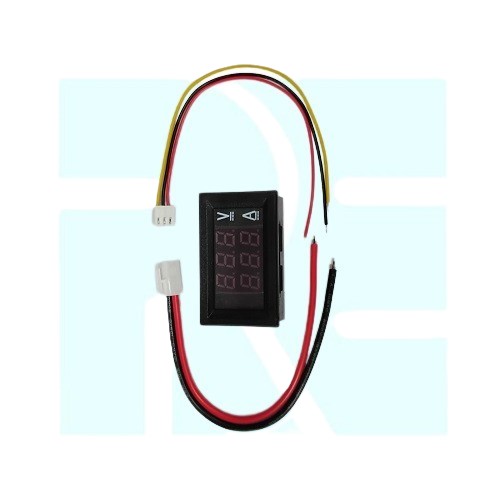

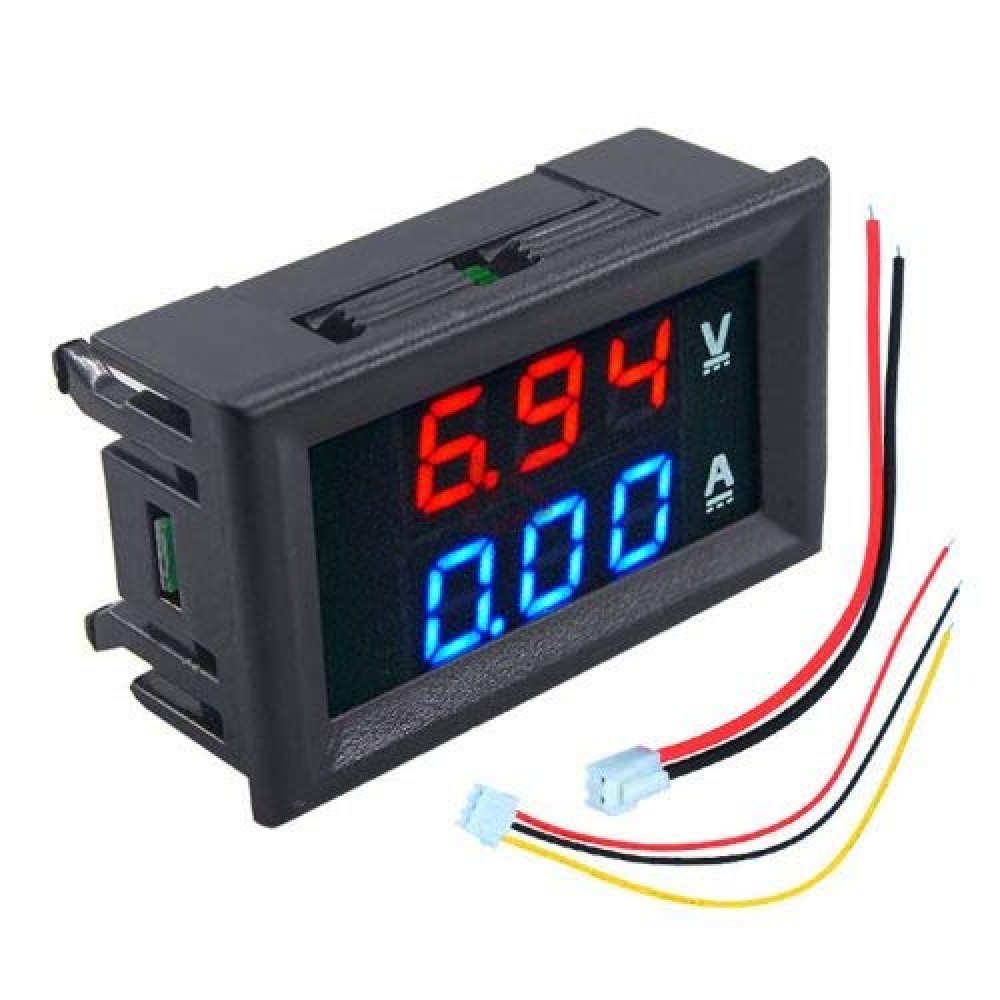

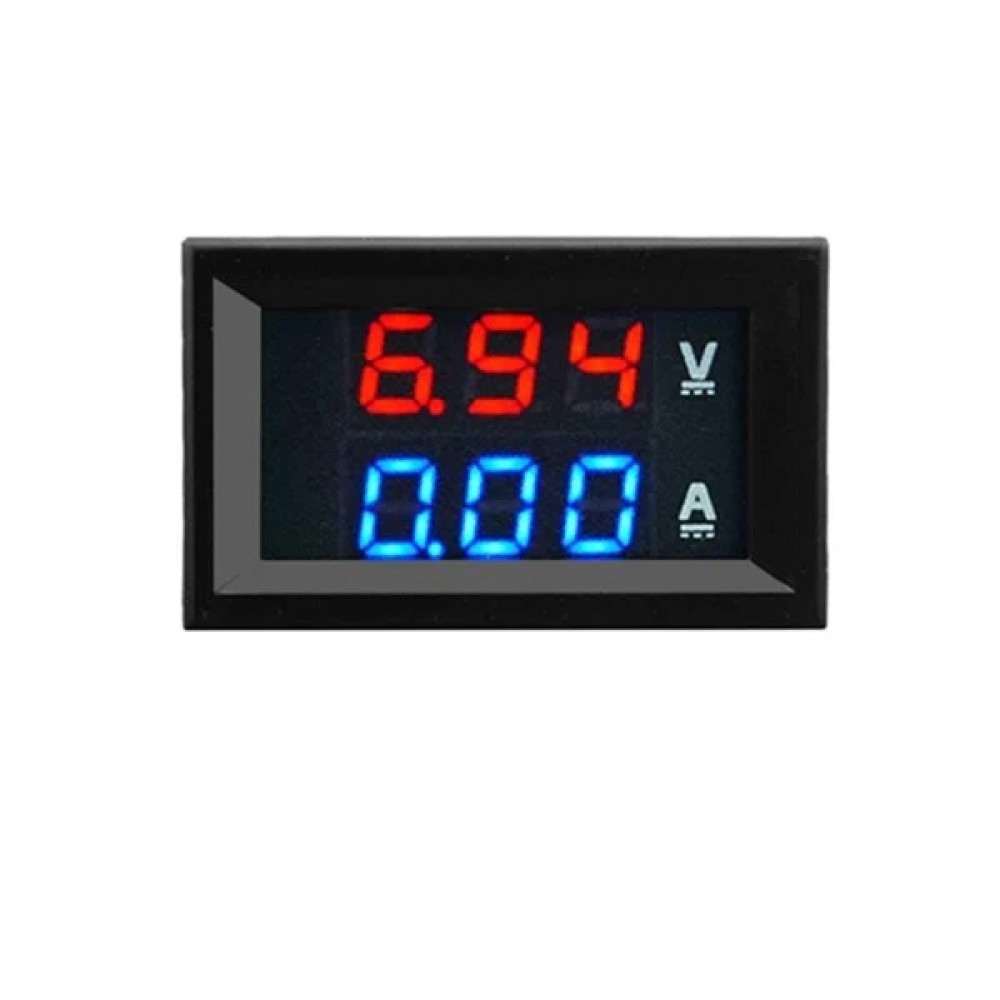

0.28 Inch Digital Voltmeter Ammeter Module 0-100V 10A Dual LED Display (DC Voltage Current Meter)

The 0.28 Inch Digital Voltmeter Ammeter Module is a compact and accurate measurement device designed for monitoring DC voltage and current in power supplies, battery systems, solar projects, charging circuits, and electronic equipment. Featuring a dual-color LED display, it simultaneously shows voltage and current readings, making it ideal for real-time power monitoring applications.

Key Features -

• Measures DC voltage from 0V to 100V

• Measures DC current from 0A to 10A

• Dual color LED display with red and blue digits

• High measurement accuracy

• Compact panel mount design

• Fast refresh rate for real-time monitoring

• Low power consumption

• Long life and reliable stability

Specifications -

• Product type - Digital Voltmeter Ammeter Module

• Display size - 0.28 Inch

• Display type - Dual Color LED Display

• Display color - Red and Blue

• Voltage measurement range - 0V to 100V DC

• Current measurement range - 0A to 10A DC

• Measurement accuracy - 1 Percent

• Operating voltage - 4.5V to 30V DC

• Working current - 20mA

• Minimum voltage resolution - 0.1V

• Refresh rate - Approximately 500ms

• Mounting cutout size - 45.5mm x 26.5mm

• Module dimensions - 48mm x 25mm x 20mm

• Operating temperature - -10C to 65C

• Operating humidity - 10 Percent to 80 Percent Non-Condensing

• Working pressure - 80kPa to 106kPa

• Voltage accuracy - Range x 0.08 Percent + 2 Digits

• Current accuracy - Range x 0.08 Percent + 2 Digits

Applications -

• DC power supplies

• Battery monitoring systems

• Solar energy projects

• Battery charging circuits

• Automotive electronics

• DIY electronics projects

• Industrial control panels

• Laboratory test equipment
