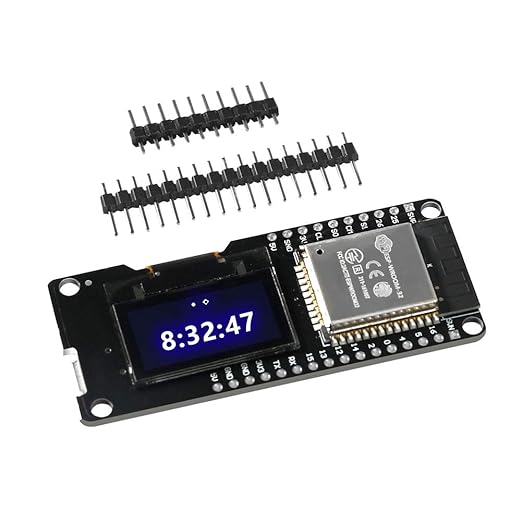

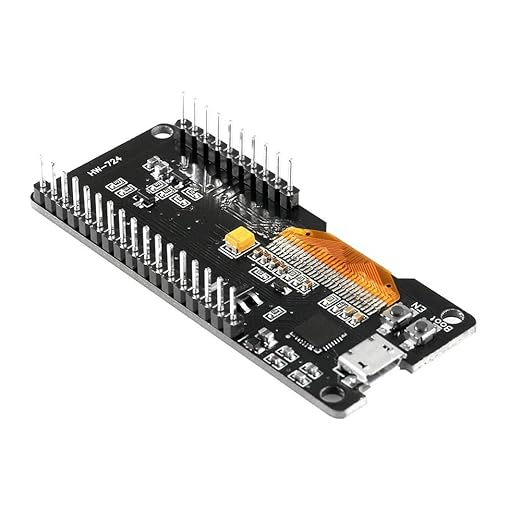

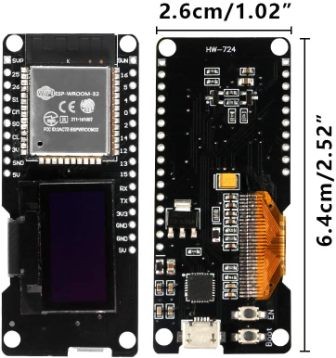

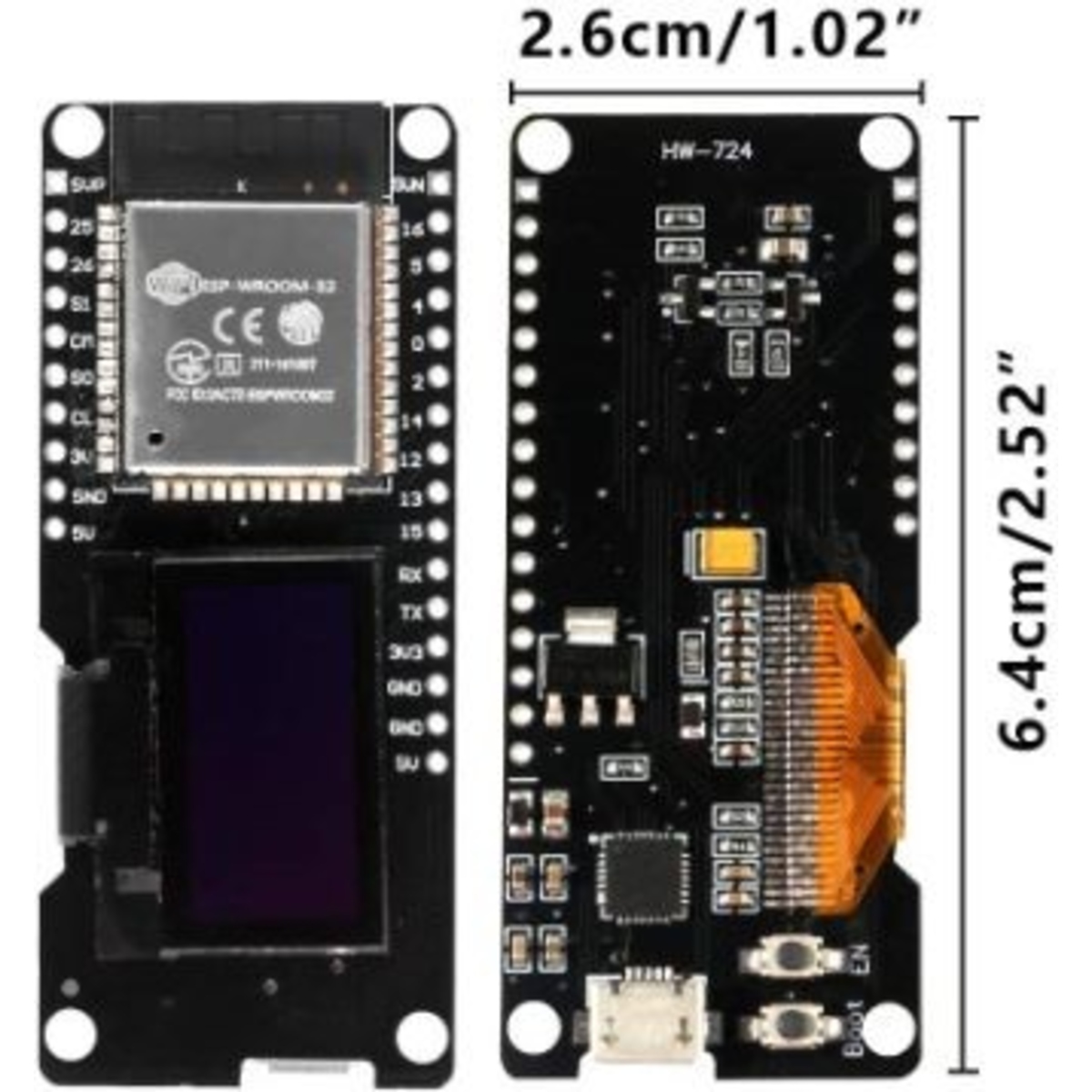

0.96 Inch OLED ESP32 ESP-WROOM-32 Development Board (WiFi + Bluetooth Dual Mode)

The 0.96 Inch OLED ESP32 ESP-WROOM-32 Development Board is a compact and powerful development platform that combines the ESP-WROOM-32 module with a built-in 0.96-inch OLED display for real-time data visualization. Powered by the dual-core 32-bit ESP32 processor, it features integrated 2.4GHz WiFi and Bluetooth (Classic + BLE), making it ideal for IoT, wireless communication, home automation, wearable devices, and embedded control applications. The onboard OLED display eliminates the need for an external display module, simplifying prototyping and reducing wiring.

Compatible with the Arduino IDE, PlatformIO, ESP-IDF, and MicroPython, this development board offers a versatile solution for rapid IoT development and wireless embedded projects.

Key Features -

• ESP-WROOM-32 ESP32 wireless module

• Built-in 0.96-inch OLED display

• Dual-core 32-bit processor for high-performance computing

• 2.4GHz WiFi and Bluetooth (Classic + BLE) connectivity

• Integrated USB interface for programming and power

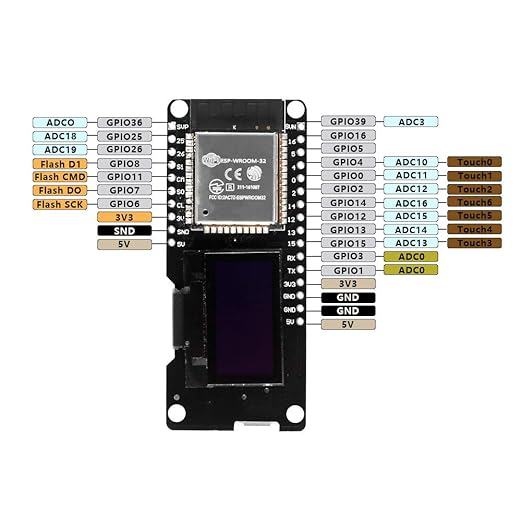

• Multiple GPIOs with ADC, DAC, PWM, SPI, I2C, and UART support

• Compact all-in-one development board design

• Compatible with Arduino IDE, ESP-IDF, PlatformIO, and MicroPython

• Low-power operation with sleep mode support

• Ideal for IoT, automation, and embedded applications

Specifications -

• Product type - ESP32 Development Board with OLED Display

• Module - ESP-WROOM-32

• Processor - Dual-Core 32-Bit Xtensa LX6

• Wireless connectivity - 2.4GHz WiFi IEEE 802.11 b/g/n and Bluetooth Classic + BLE

• Display size - 0.96 Inch OLED

• Display resolution - 128 × 64 Pixels (Typical)

• Operating voltage - 3.3V DC

• USB interface - Micro USB / USB Type-C (Variant Dependent)

• Communication interfaces - UART, SPI, I2C, PWM, ADC, DAC

• Package / Mounting type - Development Board

Applications -

• IoT device development

• Smart home automation

• Wireless sensor networks

• Environmental monitoring systems

• Wearable electronics

• Robotics and automation

• Data logging and monitoring

• Industrial IoT (IIoT) projects

• ESP32 learning and prototyping

• Embedded wireless applications
