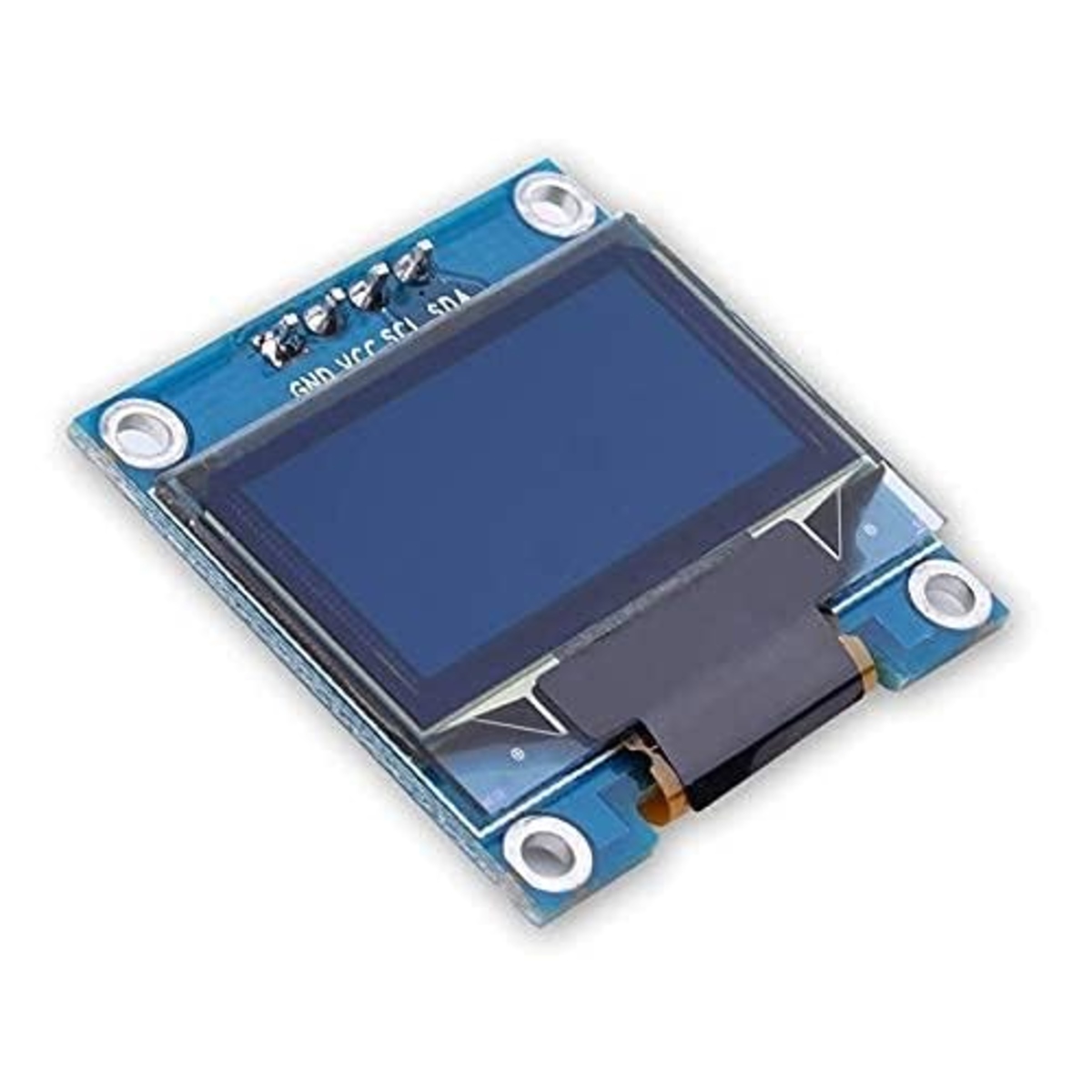

0.96 Inch Blue OLED Display Module 128x64 I2C SSD1315 Compatible with SSD1306 (4-Pin, 3.3V-5V)

The 0.96 Inch Blue OLED Display Module is a compact display designed for microcontroller projects, embedded systems, and electronic equipment. Featuring a 128x64 pixel resolution and an I2C interface, it can display text, numbers, symbols, and simple graphics. The module uses the SSD1315 controller and is compatible with SSD1306-based libraries and projects, subject to software configuration. Its four-pin connection simplifies wiring, while the 3.3V to 5V operating voltage supports a range of compatible development boards.

Key Features -

• 0.96 inch OLED display with blue output

• 128x64 pixel resolution for text and graphics

• SSD1315 display controller

• Compatible with SSD1306-based libraries and projects, subject to configuration

• I2C IIC communication interface

• Four-pin connection for simplified wiring

• Operating voltage range of 3.3V to 5V

• Compact size for embedded and portable projects

• Suitable for compatible Arduino, ESP32, and other microcontroller boards

Specifications -

• Product Type: OLED Display Module

• Display Size: 0.96 Inch

• Display Resolution: 128x64 Pixels

• Display Colour: Blue

• Display Controller: SSD1315

• Compatibility: SSD1306 software and libraries, subject to configuration

• Interface: I2C IIC

• Number of Pins: 4

• Operating Voltage: 3.3V to 5V

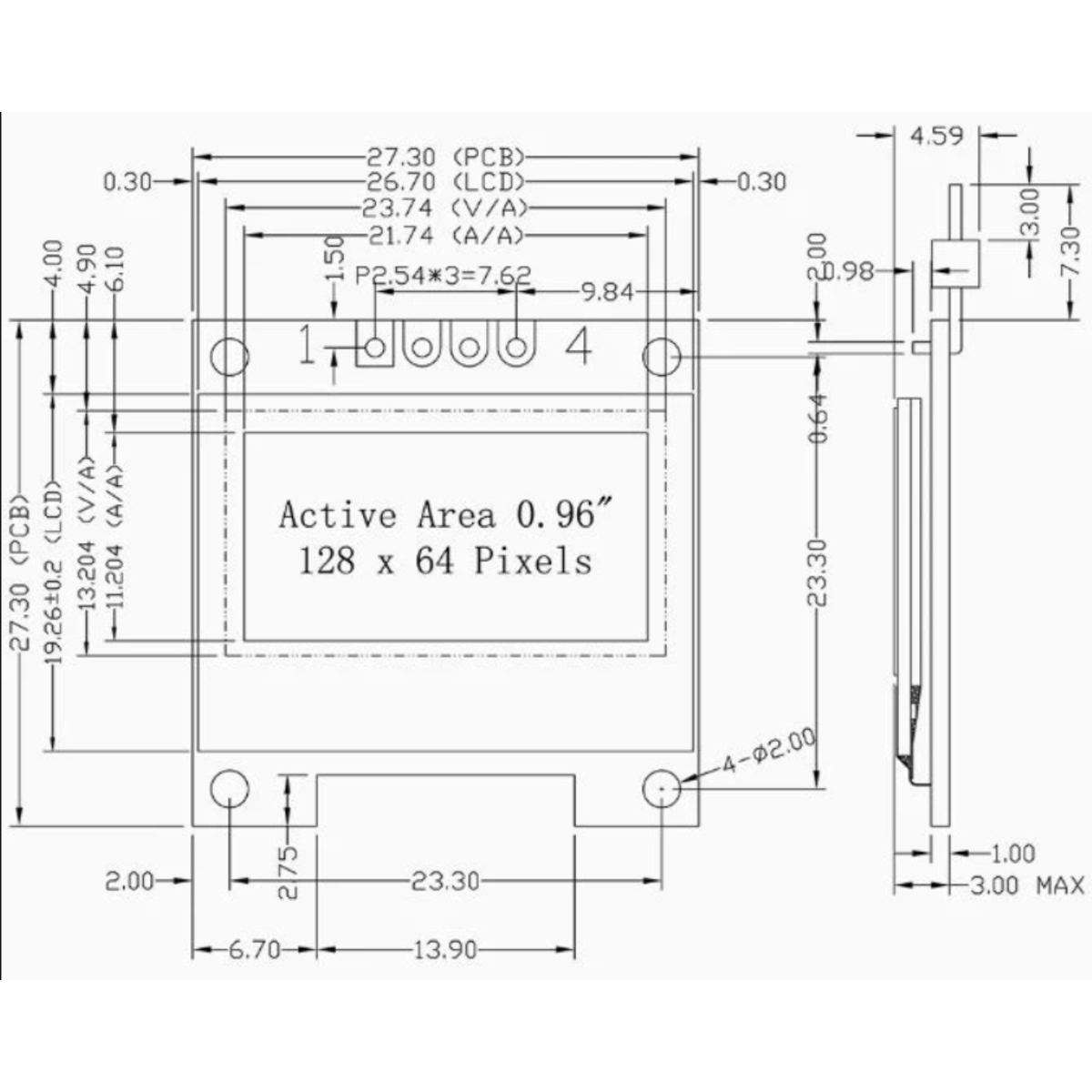

• Display Area: 21.74 x 10.86 mm

• Length: 27.5 mm

• Width: 27.5 mm

• Height: 11 mm

• Weight: 7 g

• Operating Temperature: -40 C to 70 C

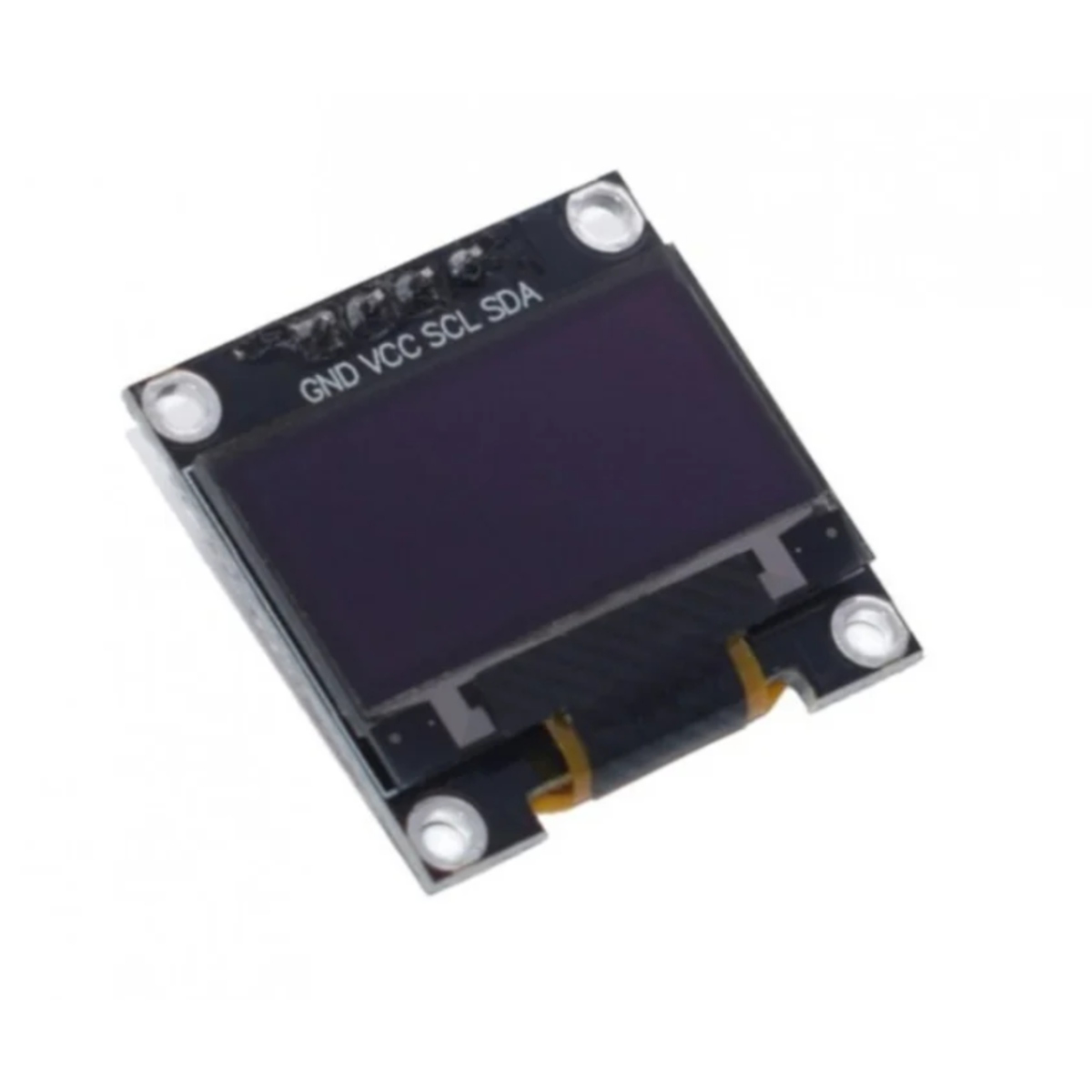

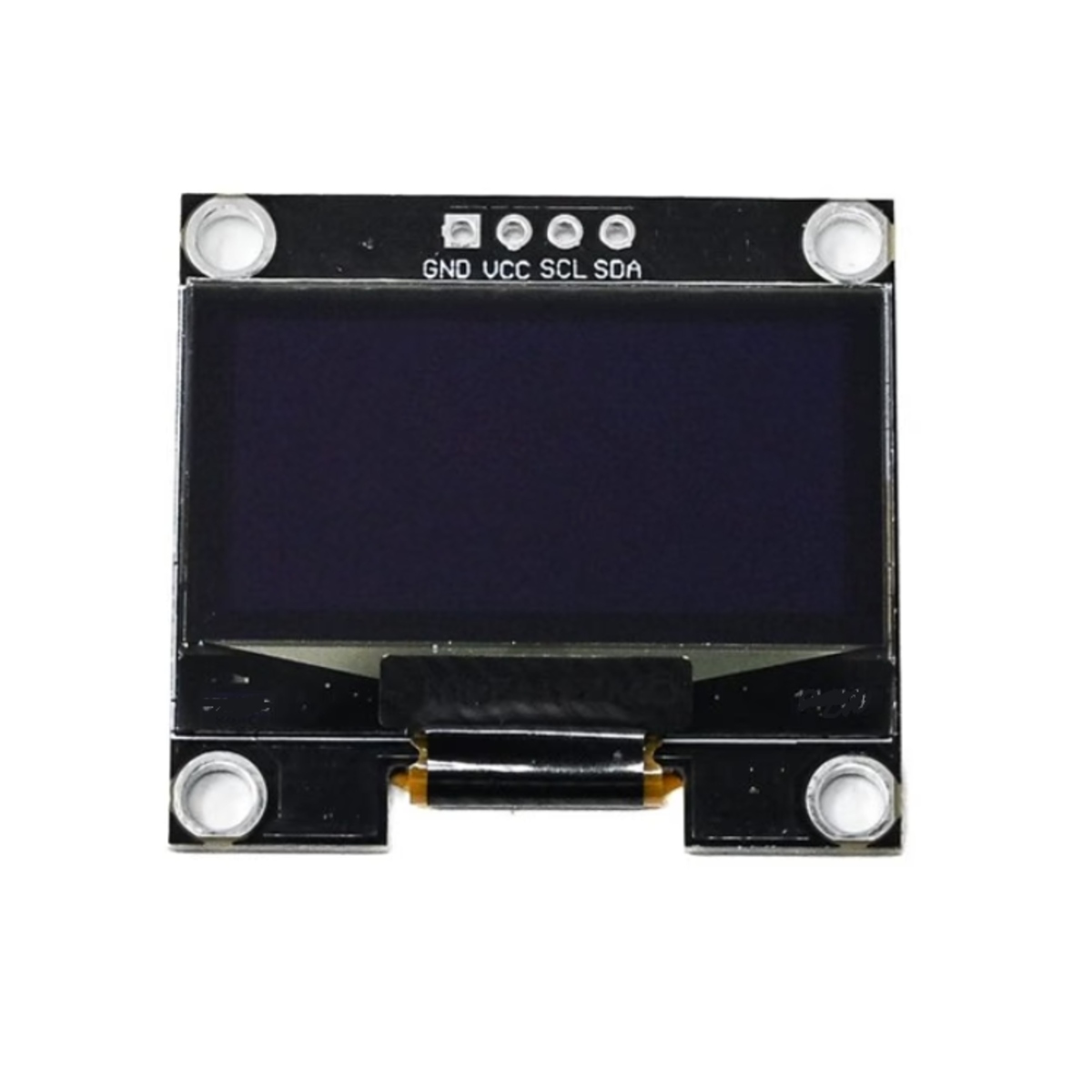

Pin Configuration -

• VCC: Power supply input, 3.3V to 5V

• GND: Ground connection

• SCL: I2C serial clock line

• SDA: I2C serial data line

Applications -

• Arduino and ESP32 projects

• Embedded system development

• Sensor data and measurement displays

• DIY electronics and prototyping

• Portable electronic instruments

• Robotics and automation projects

• Status indicators and menu interfaces

• IoT devices and monitoring systems
