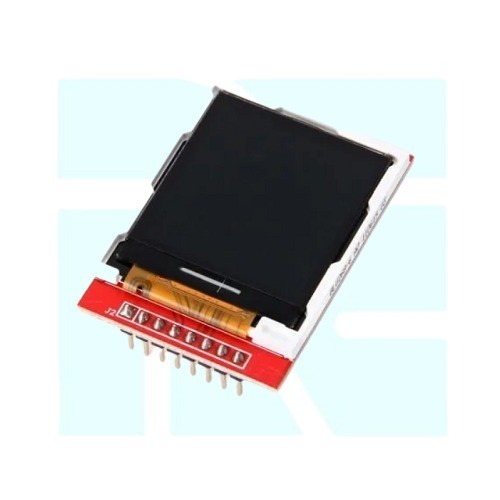

1.44 Inch TFT LCD Color Screen Module SPI Interface

The 1.44 inch TFT LCD Color Screen Module SPI Interface is a compact display module designed for embedded systems and microcontroller projects. It provides a full color graphical display suitable for user interfaces, data visualization, and small display applications.

The module uses SPI communication for fast data transfer and easy integration with development boards such as Arduino, ESP32, and Raspberry Pi. It supports clear color rendering and compact installation in embedded devices.

Key Features

• 1.44 inch TFT color display
• SPI serial interface communication
• Compact and lightweight module design
• Suitable for microcontroller projects
• Supports graphical display output
• Easy integration with embedded systems

Specifications

• Screen Size = 1.44 inch
• Display Type = TFT LCD
• Interface = SPI
• Resolution = 128 x 128
• Operating Voltage = 3.3-5V DC
• Driver IC = ST7735 typical

Interfaces

• VCC = Power supply input
• GND = Ground
• SCL = SPI clock
• SDA = SPI data input
• RES = Reset control
• DC = Data command control
• CS = Chip select
• BL = Backlight control
