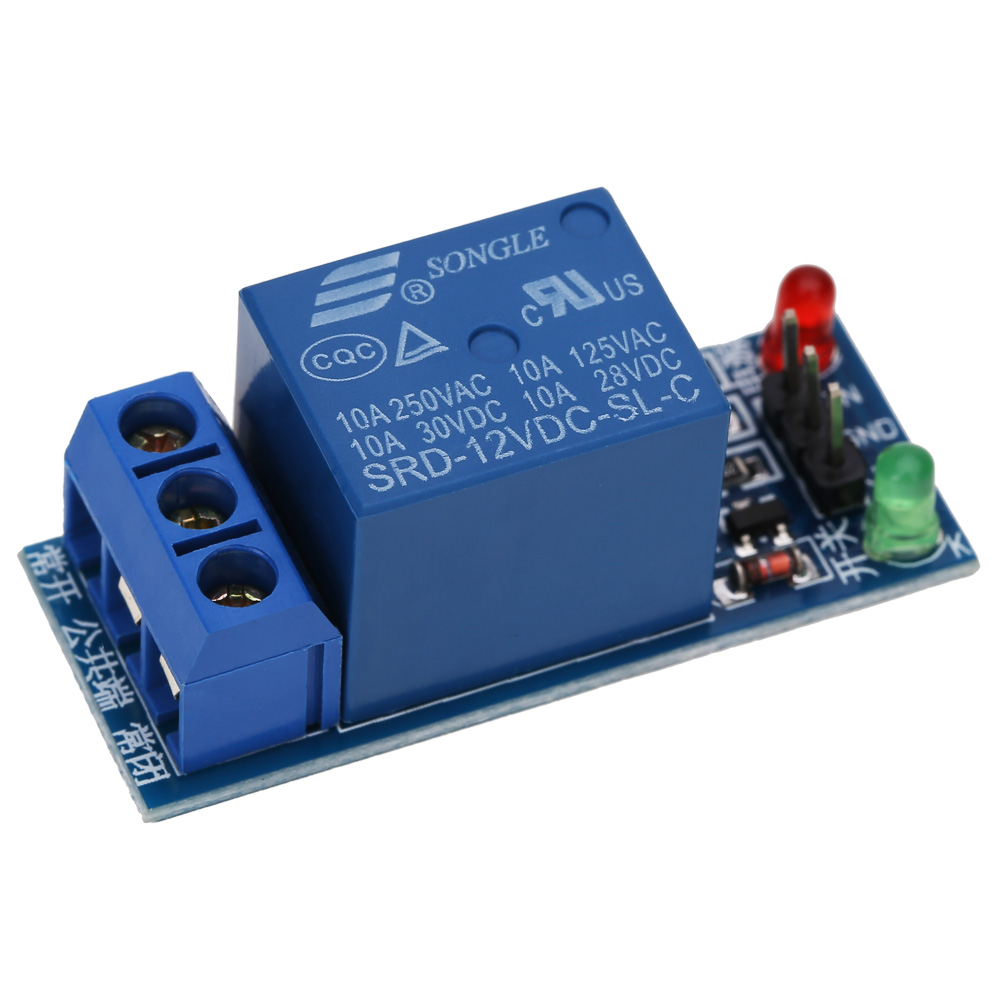

1 Channel 12V Relay Module for Microcontroller and Automation Projects (12V DC Coil)

The 1 Channel 12V Relay Module is an electromechanical switching module designed to control electrical loads using a low-voltage digital control signal. It uses a 12V DC relay coil and an onboard driver circuit to switch connected AC or DC loads. It is suitable for microcontroller projects, embedded systems, home automation, and general-purpose electrical control applications. Trigger voltage, contact rating, and isolation features depend on the specific module variant.

Key Features -

• Single-channel electromechanical relay switching

• 12V DC relay coil operation

• Onboard driver transistor circuit

• Digital control signal input

• LED status indication on equipped versions

• Supports AC or DC load switching within the relay contact ratings

• Suitable for microcontroller and embedded system projects

• Compact module design for electronic control applications

Specifications -

• Product Type: Relay Module

• Channel Count: 1

• Relay Type: Electromechanical

• Relay Coil Voltage: 12V DC

• Trigger Voltage: 5V or 12V, depending on module variant

• Control Signal: Digital input

• Driver Circuit: Onboard transistor driver

• Status Indicator: LED, depending on module variant

• Contact Rating: Typically up to 10A at 250V AC or 10A at 30V DC; verify the relay markings and datasheet for the exact rating

• Isolation: Optocoupler isolation, model dependent

• Board Type: Relay control module

Applications -

• Microcontroller-based switching projects

• Arduino and embedded system applications, with compatible control inputs

• Home automation systems

• Lighting and appliance control

• Industrial control prototypes

• DC motor and actuator switching within contact ratings

• Educational electronics projects

• General-purpose AC and DC load control
