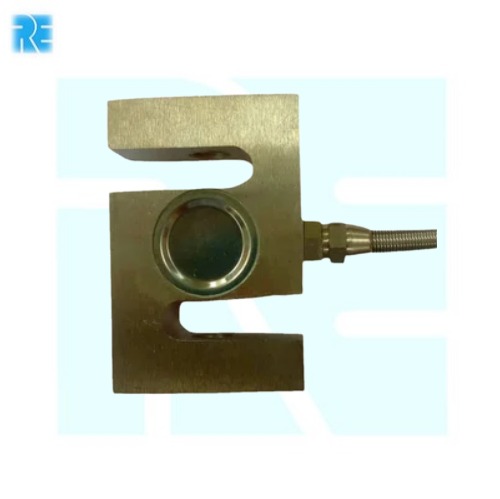

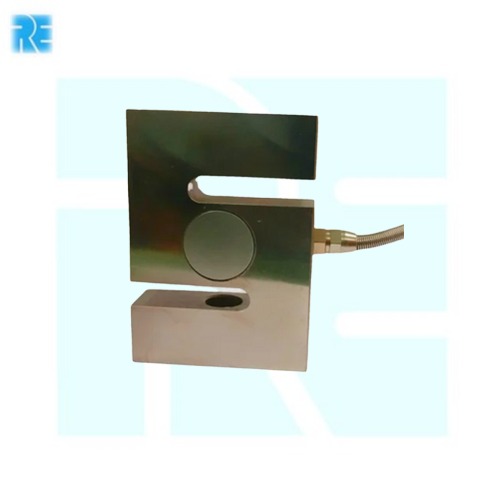

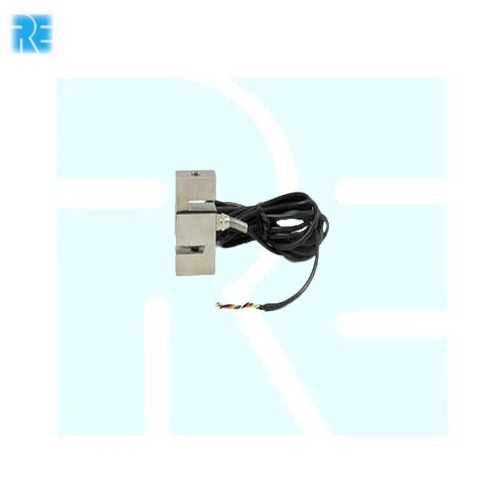

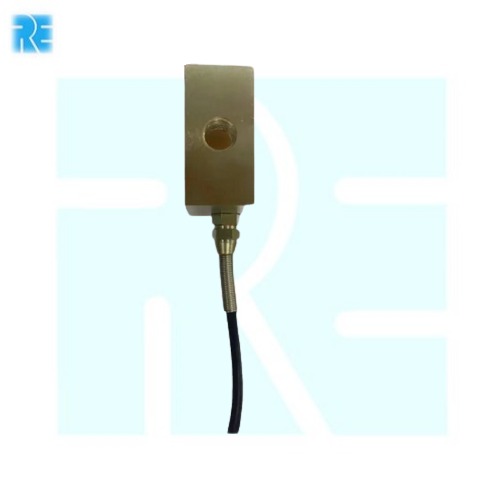

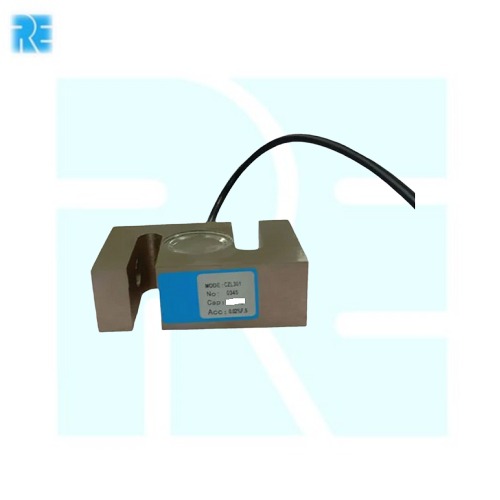

1 Ton S Type Load Cell CZL301 Electronic Weighing Scale Sensor Stainless Steel Strain Gauge Weight Sensor IP66 (CZL301 Load Cell)

The CZL301 1 ton S type load cell is a high precision strain gauge based weight sensor designed for industrial weighing and force measurement applications. It supports both tension and compression measurement and provides stable and accurate output in harsh environments.

Key Features -

  • Rated capacity 1 ton load measurement
  • S type design for tension and compression use
  • Stainless steel construction for durability
  • IP66 protection for dust and water resistance
  • High accuracy with stable output
  • Suitable for industrial and outdoor applications

Specifications -

  • Sensor type - strain gauge S type load cell
  • Capacity - 1 ton
  • Model - CZL301
  • Material - stainless steel
  • Ingress protection - IP66
  • Rated output - approx 2.0mV per V typical
  • Input resistance - 350 plus minus 10 ohm
  • Insulation resistance at 50V DC - greater than equal to 5000 mega ohm
  • Maximum safe overload - 150 percent FS
  • Recommended excitation voltage - 9V to 12V DC
  • Maximum excitation voltage - 15V DC

Applications -

  • Crane and hanging weighing scales
  • Hopper and tank weighing systems
  • Industrial force measurement
  • Automation and process control
  • Load monitoring systems

Pinout Configuration -

  • Red - excitation positive
  • Black - excitation negative
  • Green - signal positive
  • White - signal negative
