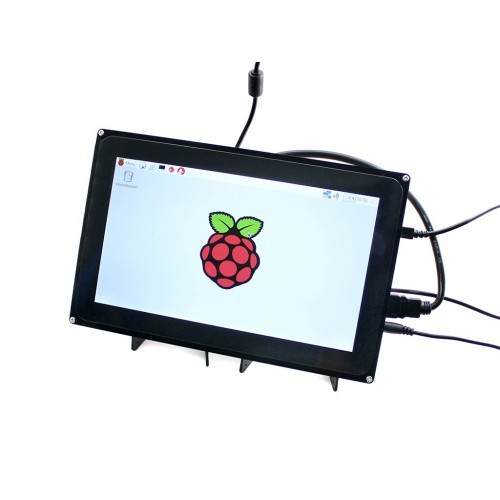

10.1inch Capacitive Touch Screen LCD 1024x600 Multi Interfaces HDMI VGA AV CVBS

The 10.1inch Capacitive Touch Screen LCD is a high resolution display module designed for embedded systems, industrial control panels, and multimedia applications. It features a 1024x600 display resolution with capacitive multi touch support for smooth and accurate user interaction. The panel provides clear image quality and stable performance for continuous operation.

This display supports multiple input interfaces including HDMI VGA and AV CVBS, making it compatible with a wide range of devices such as single board computers, industrial controllers, media players, and monitoring systems. It is suitable for HMI systems, Raspberry Pi projects, and custom embedded applications.

KEY FEATURES

• 10.1inch LCD display
• 1024x600 resolution
• Capacitive multi touch panel
• Supports HDMI VGA and AV CVBS inputs
• Wide viewing angle
• Stable and reliable performance
• Suitable for industrial and multimedia systems

SPECIFICATIONS

• Display Size - 10.1inch
• Resolution - 1024x600
• Touch Type - Capacitive multi touch
• Video Interfaces - HDMI VGA AV CVBS
• Display Type - TFT LCD
• Operating Voltage - 12V DC
• Application - Embedded HMI and multimedia systems

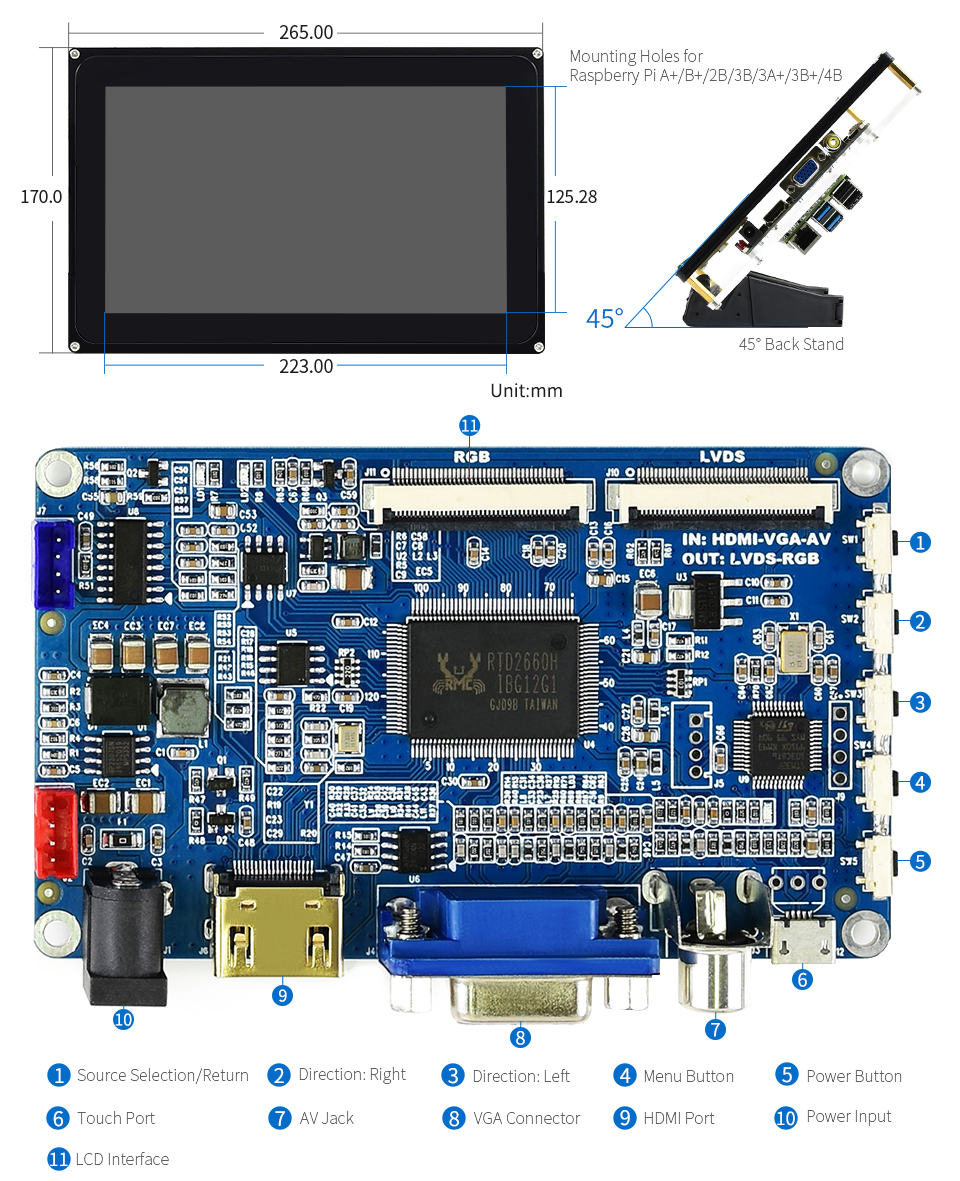

INTERFACES

• HDMI Port - Digital video input
• VGA Port - Analog video input
• AV CVBS Port - Composite video input
• Touch USB Port - Touch data communication
• Power Input - 12V DC supply
