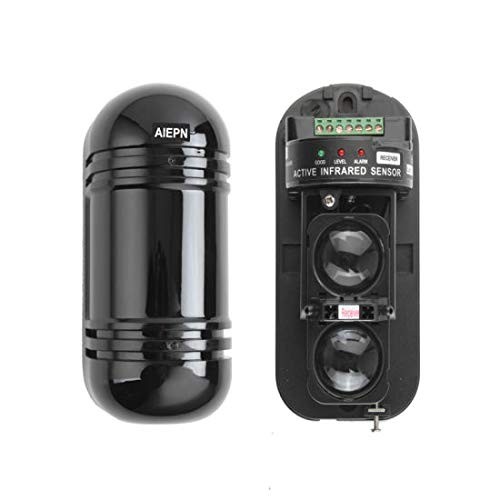

ABT-100 Dual Beam Photoelectric Infrared Detector 100m (Outdoor Perimeter Security Sensor)

The ABT-100 Dual Beam Photoelectric Infrared Detector is a professional outdoor perimeter security sensor designed for reliable intrusion detection over distances of up to 100 meters. It consists of a transmitter and receiver pair that create dual infrared beams. When both beams are interrupted simultaneously, the detector activates an alarm output, reducing false alarms caused by birds, falling leaves, or other small objects.

Designed for demanding outdoor environments, the ABT-100 features a weather-resistant housing, adjustable optical alignment, and strong resistance to environmental interference. It is ideal for boundary protection, warehouses, parking areas, residential complexes, industrial facilities, and access control systems.

Key Features -

• Dual infrared beam intrusion detection

• Outdoor detection range up to 100 meters

• Reduces false alarms with dual-beam technology

• High resistance to sunlight and environmental interference

• Adjustable horizontal and vertical optical alignment

• Weather-resistant outdoor housing

• Relay alarm output for security system integration

• Stable and reliable perimeter protection

• Suitable for continuous outdoor operation

• Easy installation and alignment

Specifications -

• Product type - Dual Beam Photoelectric Infrared Detector

• Model - ABT-100

• Detection type - Dual Infrared Beam

• Maximum detection range - Up to 100m (Outdoor)

• Alarm output - Relay Contact Output

• Supply voltage - 12V to 24V DC

• Alignment adjustment - Horizontal and Vertical Adjustable

• Protection rating - IP Rated Weatherproof Housing

• Operating temperature - -25C to +60C

• Housing color - Black

• Mounting type - Wall or Pole Mount

Applications -

• Perimeter security systems

• Building boundary protection

• Residential security installations

• Warehouse security

• Industrial facility protection

• Parking lot monitoring

• Factory perimeter surveillance

• Access control systems

• Security alarm systems

• Commercial property protection
