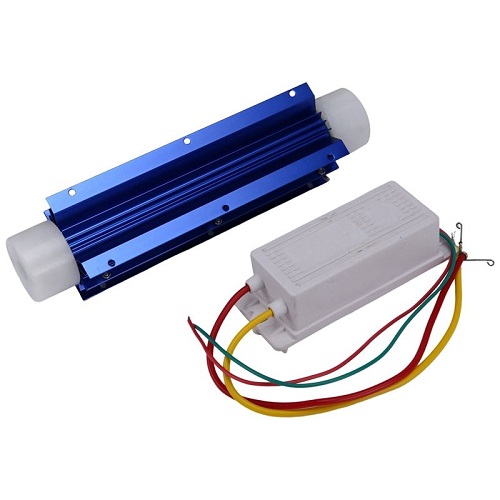

10g Ozone Generator Tube Air Purifier Quartz Tube with Power Supply 220V AC

The 10g Ozone Generator Tube is a high efficiency ozone generation unit designed for air purification, odor removal, and sterilization applications. It uses a quartz discharge tube to produce ozone gas through high voltage corona discharge, enabling effective elimination of bacteria, smoke, and unwanted odors in enclosed environments.

This ozone generator module includes a compatible 220V AC power supply to drive the quartz tube for stable ozone production. It is suitable for use in air purification systems, water treatment setups, food storage areas, and industrial sterilization equipment where strong oxidizing capability is required.

Key Features

• Quartz tube based ozone generation technology
• Ozone output capacity up to 10g per hour
• Includes 220V AC compatible high voltage power supply
• Effective for air purification and odor removal
• Suitable for sterilization and disinfection applications
• Compact design for integration in purification systems
• Stable and reliable ozone production

Specifications

• Ozone Output = 10g per hour
• Input Voltage = 220V AC
• Tube Type = Quartz ozone discharge tube
• Ozone Generation Method = Corona discharge
• Application = Air purification odor removal and sterilization
• Cooling Method = Air cooling
• System Type = Ozone generator tube with power supply

Interfaces

• AC L = Live input from 220V AC supply
• AC N = Neutral input from 220V AC supply
• HV OUT + = High voltage output to ozone tube
• HV OUT - = High voltage return to ozone tube
