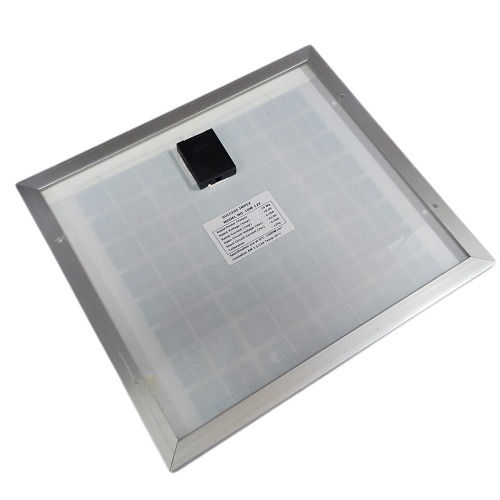

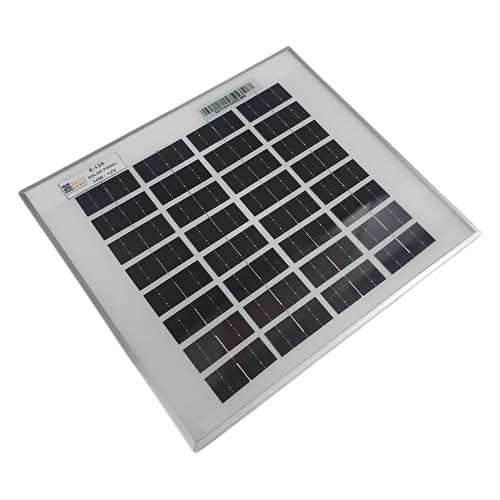

10W 12V Polycrystalline Solar Panel for DIY Projects and Battery Charging (10Wp, 18V Rated Output)

The 10W Polycrystalline Solar Panel is a compact photovoltaic module designed to convert sunlight into electrical energy for small-scale solar applications. With a rated power output of 10Wp and a rated voltage of 18V, it is suitable for DIY solar projects, educational experiments, low-power electronics, and battery-charging systems when used with a compatible charge controller. Its polycrystalline silicon cells provide a practical option for portable solar setups and small off-grid prototypes.

Key Features -

• 10Wp rated power output

• Polycrystalline photovoltaic cell technology

• 18V rated operating voltage

• Suitable for DIY solar and educational projects

• Designed for low-power solar energy applications

• Can be used for battery charging with a compatible charge controller

• Specified electrical output tolerance of ±3%

Specifications -

• Product Type: Solar Panel

• Rated Power: 10Wp

• Rated Voltage: 18.0V

• Rated Current: 0.56A

• Open Circuit Voltage: 22.0V

• Short Circuit Current: 0.59A

• Cell Type: Polycrystalline

• Power Tolerance: ±3%

• Operating Temperature: -25 C (lower temperature limit provided; upper limit not specified)

Applications -

• DIY solar energy projects

• Educational photovoltaic experiments

• Small off-grid power systems

• Solar-powered sensor and monitoring projects

• Low-power electronics demonstrations

• Battery-charging systems with a suitable charge controller

• Portable solar power prototypes

• Solar energy testing and research
