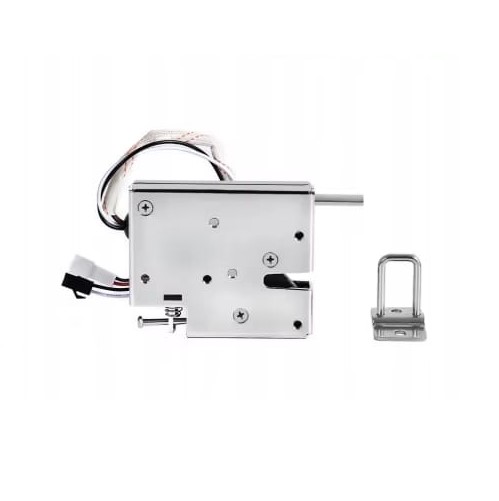

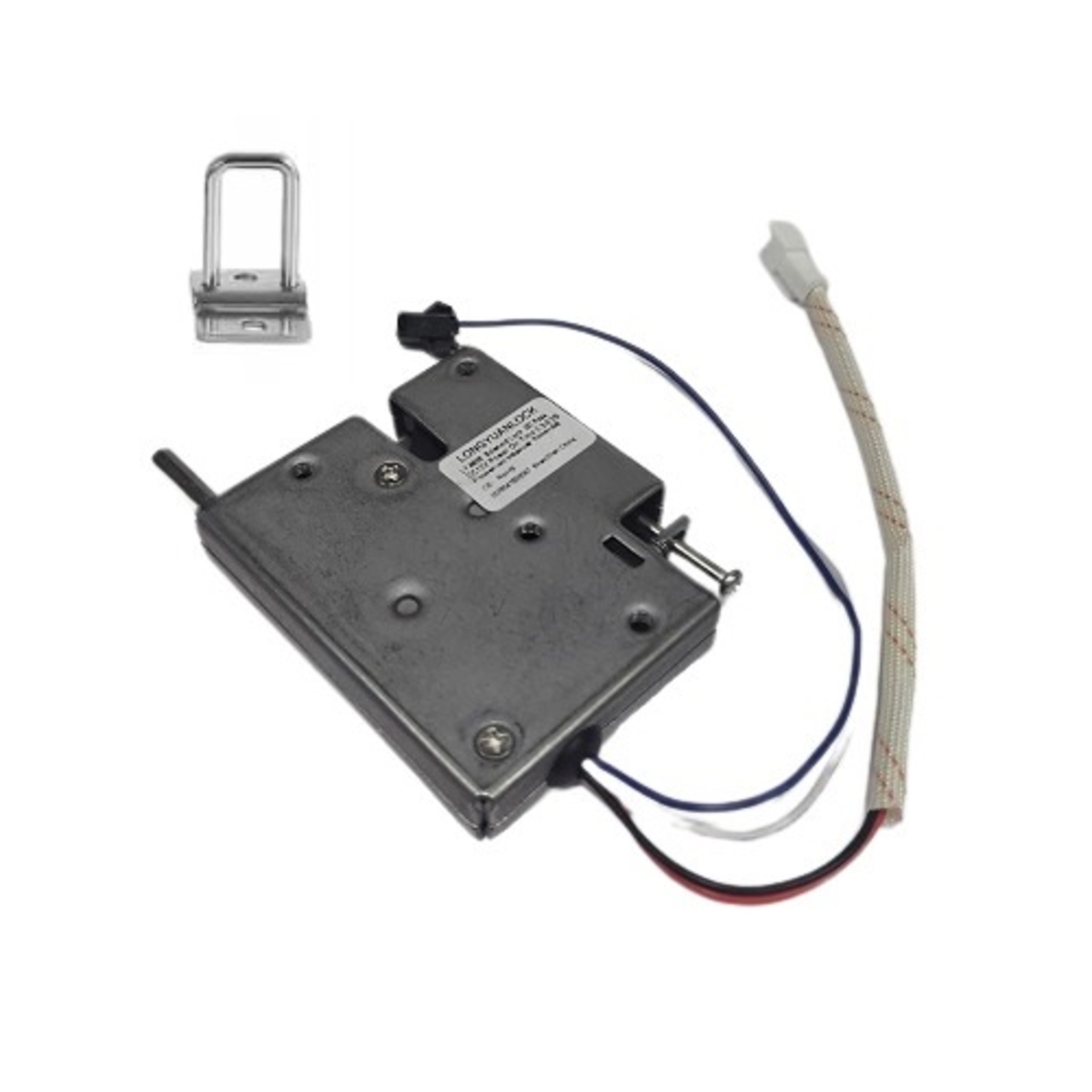

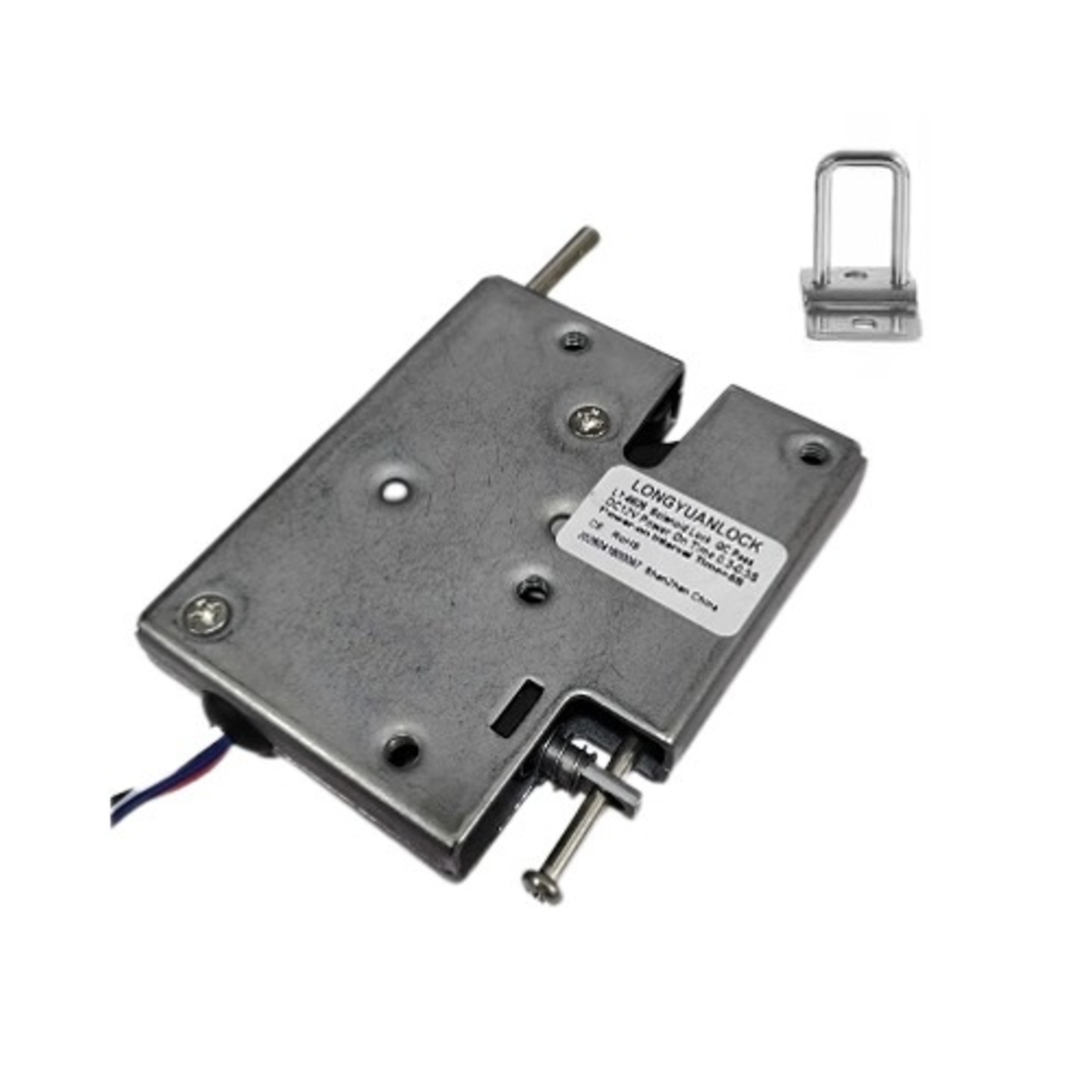

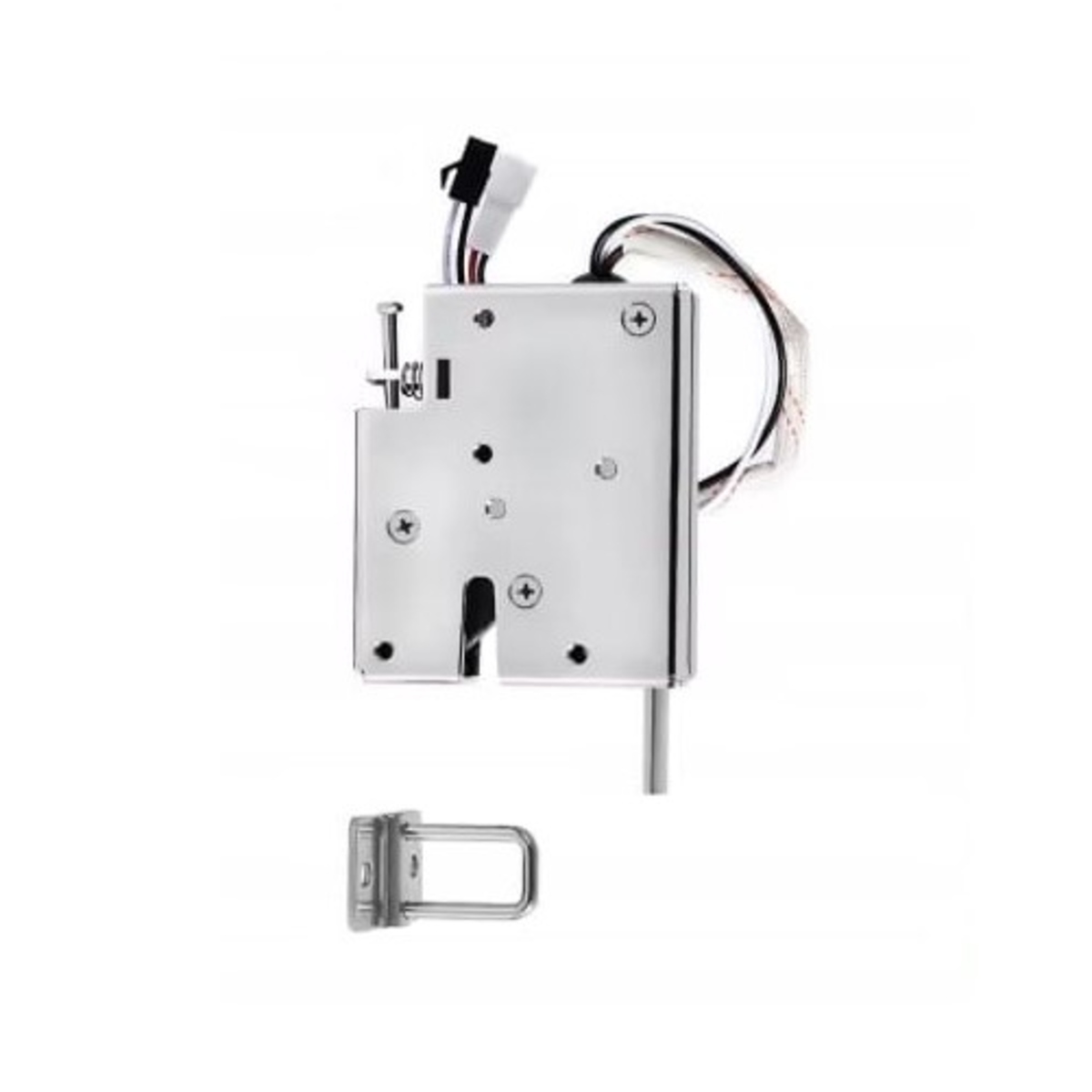

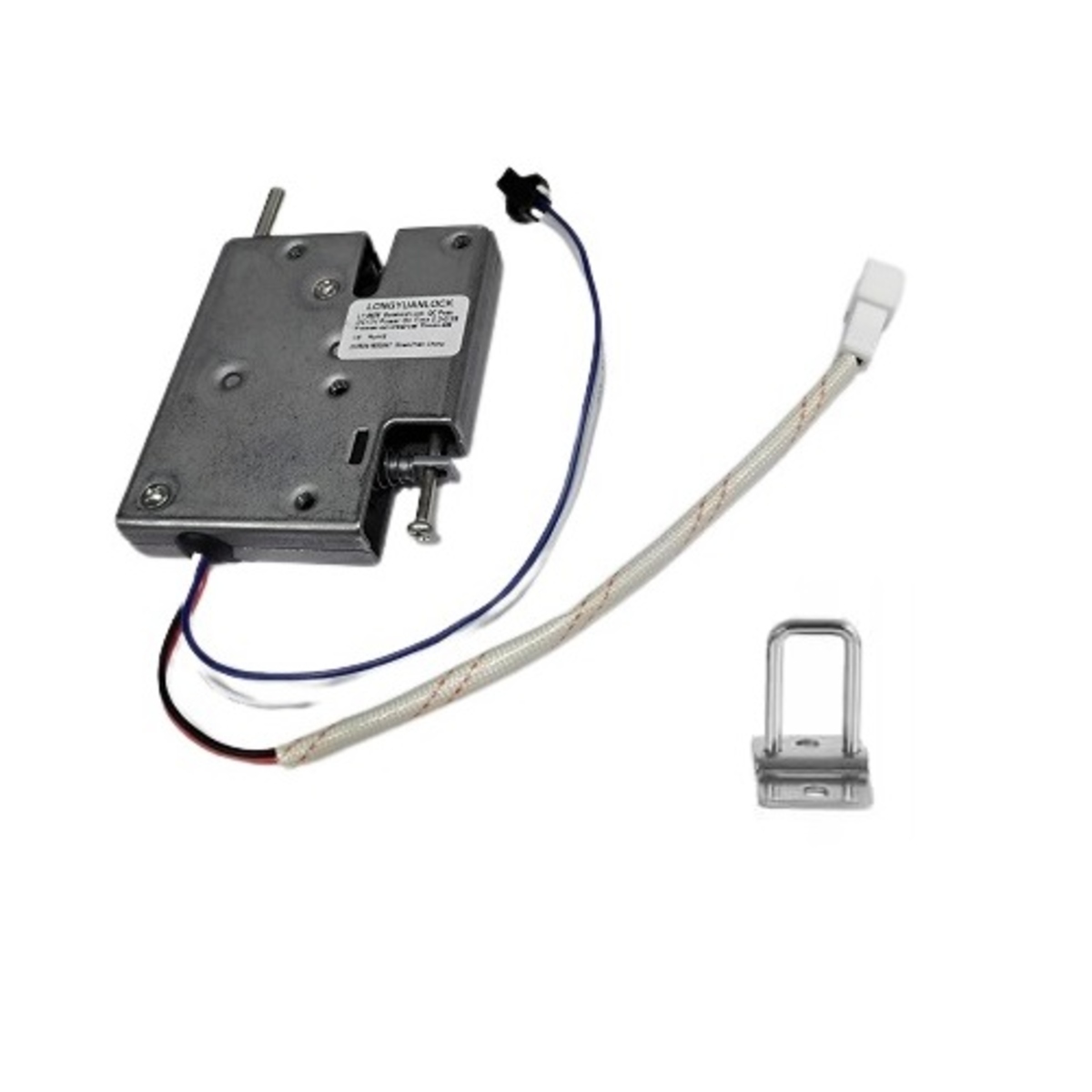

12V Electromagnetic Locker Lock 8819 for Electronic Lockers and Cabinet Security (8819 Cabinet Lock)

The 8819 Electromagnetic Locker Lock is a compact 12V DC electronic locking mechanism designed for lockers, cabinets, drawers, vending machines, and access control systems. It provides reliable electromagnetic locking performance with a strong holding force, durable metal construction, and long operational life, making it ideal for secure electronic locking applications.

Key Features -

• 12V DC electromagnetic locker lock

• Strong and durable locking mechanism

• Compact metal body construction

• Fast electronic unlocking operation

• Long operational life exceeding 100000 cycles

• High latch holding strength

• Corrosion-resistant construction

• Suitable for electronic access control systems

Specifications -

• Product type - Electromagnetic Locker Lock

• Model - 8819

• Rated voltage - 12V DC

• Maximum instantaneous operating current - 2.5A ±15 Percent

• Maximum latch load capacity - 300N Minimum

• Anti-door strength - 7Kg at 12V, 3Kg at 10V

• Door opening force - 2Kg ±15 Percent Minimum

• Case material - Cold Rolled Steel and 304 Stainless Steel

• Cable type - 3.0-2.0 x 3Y Male Connector Cable

• Weight - Approximately 177g

• Operating temperature - -20C to +80C

• Corrosion resistance - NSS 72H

• Dimensions - 73mm x 61.8mm x 13.3mm

• Power on duration - 1 Second Maximum Continuous Operation

• Life span - More Than 100000 Operations

Applications -

• Electronic locker systems

• Smart cabinet locking systems

• Vending machines

• Access control systems

• Storage drawer security applications

• Parcel lockers

• Self-service kiosks

• Automated storage systems
