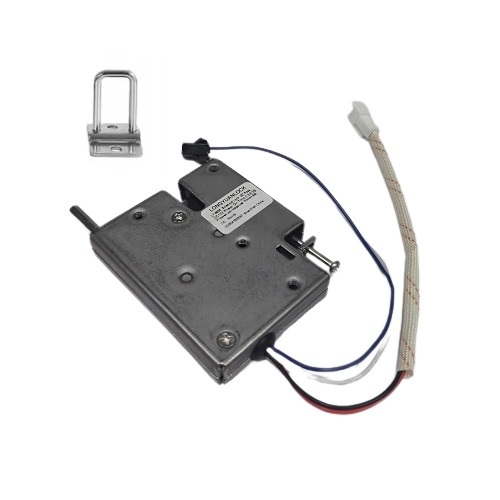

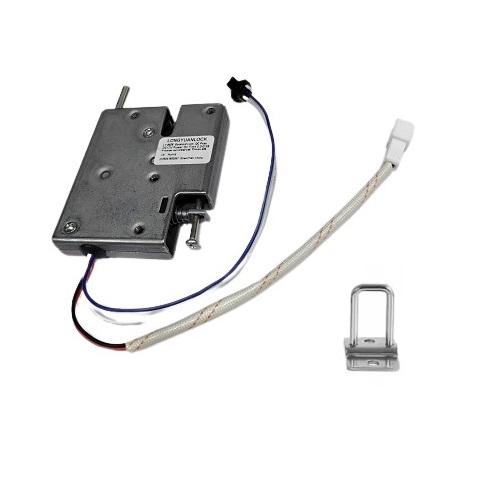

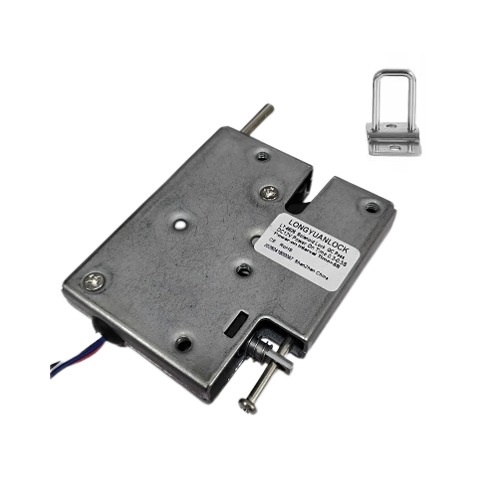

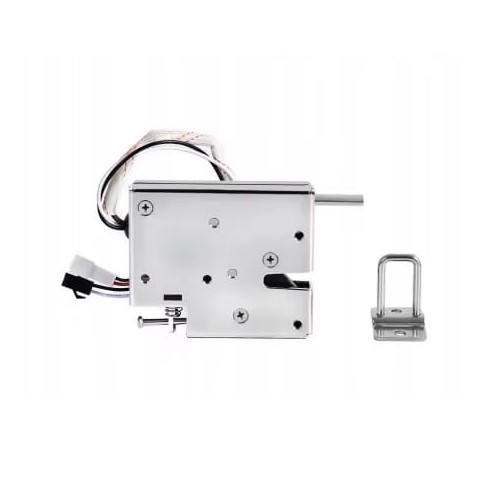

12V Electromagnetic Locker Lock 8826 (Electronic Cabinet & Drawer Solenoid Lock)

The 12V Electromagnetic Locker Lock 8826 is a compact and high-strength electronic solenoid lock designed for secure locking and access control applications. Operating on a 12V DC power supply, it provides a strong holding force of up to 600N while requiring only a short power pulse for unlocking. Its robust construction using cold-rolled steel and 304 stainless steel ensures excellent durability, corrosion resistance, and reliable long-term operation.

This electromagnetic lock is ideal for electronic lockers, cabinets, drawers, parcel lockers, vending machines, smart storage systems, self-service kiosks, and industrial access control applications. With a fast unlocking response, compact size, and a service life exceeding 100,000 operations, it is an excellent choice for both commercial and industrial installations.

Key Features -

• 12V DC electromagnetic locker lock

• Strong holding force up to 600N

• Fast unlocking response in less than 1 second

• Compact and space-saving design

• Cold-rolled steel and 304 stainless steel housing

• High-strength anti-door locking mechanism

• Corrosion-resistant with NSS 72-hour protection

• Low power pulse operation

• Long mechanical life exceeding 100,000 cycles

• Suitable for electronic lockers, cabinets, drawers, and access control systems

Specifications -

• Product Type - Electromagnetic Locker Lock

• Model - 8826

• Rated Voltage - 12V DC

• Maximum Instantaneous Operating Current - 2.5A ±15%

• Maximum Holding Force - ≥600N

• Anti-Door Strength - 8Kg (12V)

• Door Opening Force - ≥2.1Kg ±15%

• Housing Material - Cold-Rolled Steel and 304 Stainless Steel

• Cable Type - 3-Core Cable with 3.0-2.0*3Y Male Connector

• Weight - Approximately 300g

• Operating Temperature - -40C to +80C

• Corrosion Resistance - NSS 72 Hours

• Dimensions - 73 × 61.8 × 13mm

• Power-On Duration - ≤1 Second per Continuous Operation

• Mechanical Life - More than 100,000 Operations

Applications -

• Electronic lockers

• Smart parcel lockers

• Office and school lockers

• Electronic cabinets and drawers

• Vending machines

• Self-service kiosks

• Access control systems

• Smart storage solutions

• Industrial automation equipment

• Security and automation projects
