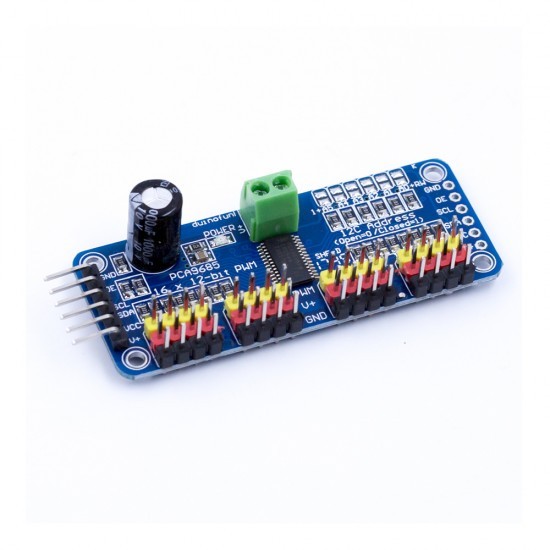

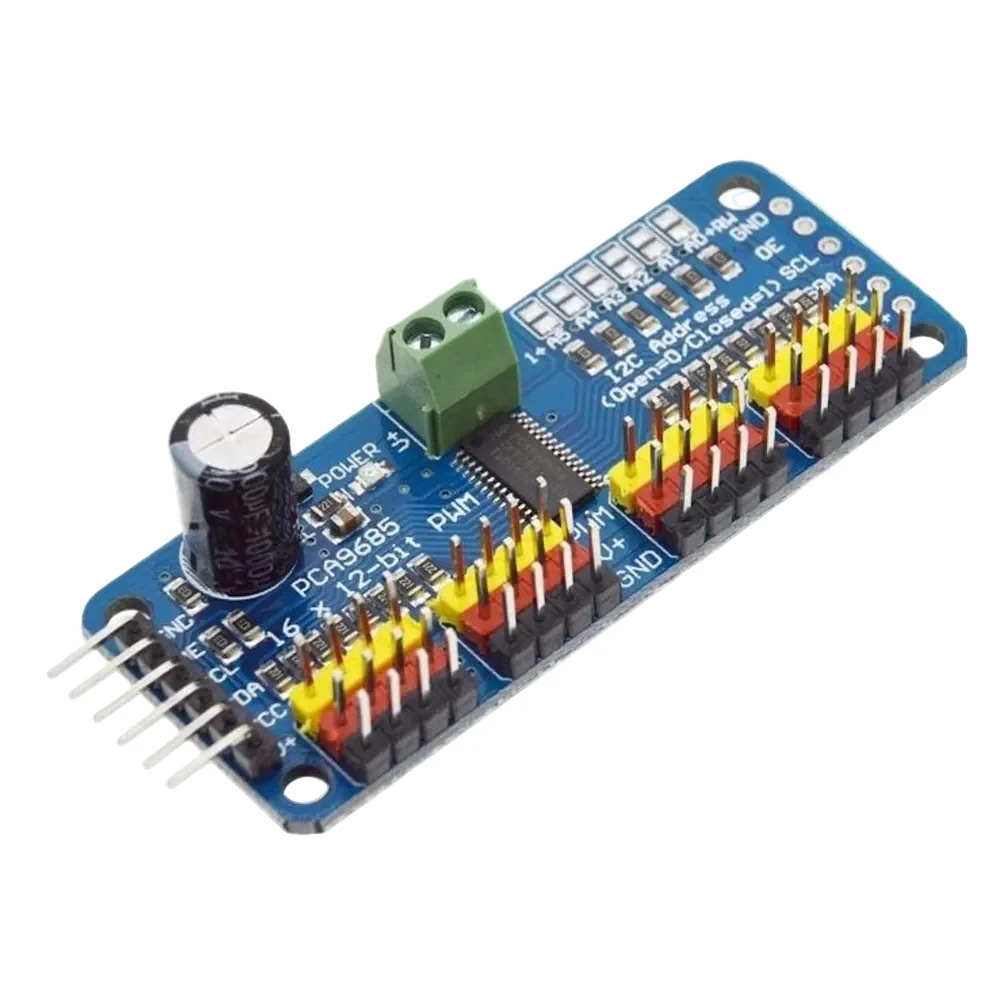

PCA9685 16-Channel 12-Bit PWM Servo Driver Module (I2C Interface)

The PCA9685 16-Channel PWM Servo Driver Module is a compact expansion board designed to provide 16 independent PWM output channels with 12-bit resolution. It uses the PCA9685 driver IC and communicates through the I2C interface, allowing multiple PWM outputs to be controlled using only two communication lines.

The module is suitable for robotics, servo control, LED dimming, motor control, automation, Arduino, ESP32, Raspberry Pi, and other embedded electronics projects requiring additional PWM outputs.

Key Features -

• 16 independent PWM channels

• 12-bit PWM resolution with 4096 steps

• PCA9685 PWM driver IC

• I2C serial communication interface

• Suitable for multiple servo control

• Adjustable I2C address

• Multiple modules can be used on the same I2C bus

• Compact PCB module design

• Reduces microcontroller GPIO usage

Specifications -

• Product Type = 16-Channel PWM Servo Driver Module

• Controller IC = PCA9685

• PWM Channels = 16

• PWM Resolution = 12-Bit / 4096 Steps

• Interface = I2C / IIC

• I2C Address = Adjustable

• Logic Voltage = 3.3V–5V compatible

• PWM Frequency = Programmable

• Output = 16 PWM channels

• Mounting Type = PCB Module

Applications -

• Servo motor control

• Robotics projects

• Arduino and ESP32 projects

• Raspberry Pi projects

• LED brightness control

• RGB LED control

• Motor and actuator control

• Automation systems

• IoT projects

• DIY electronics and prototyping
