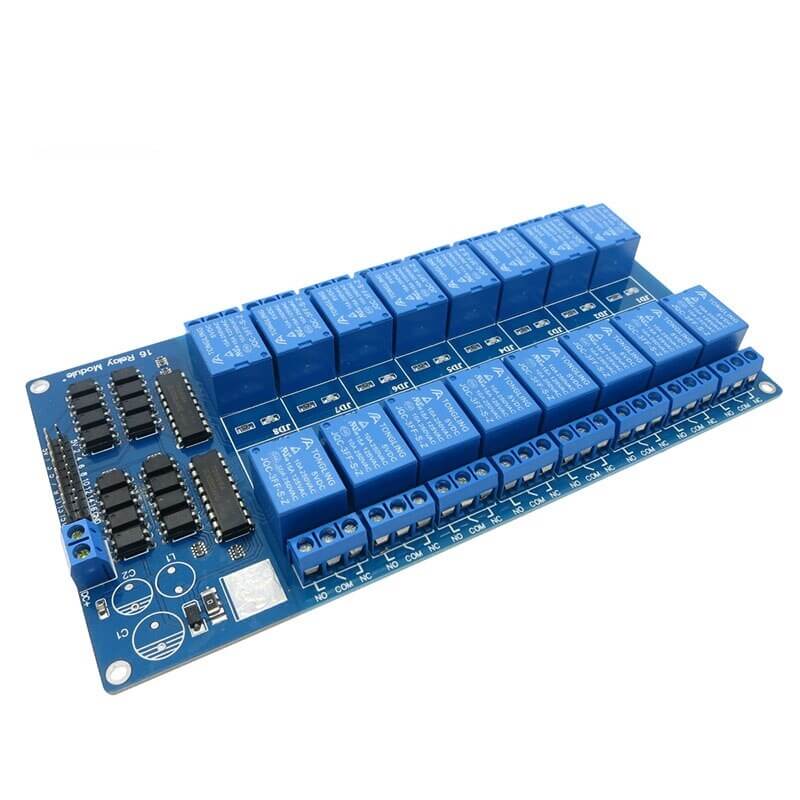

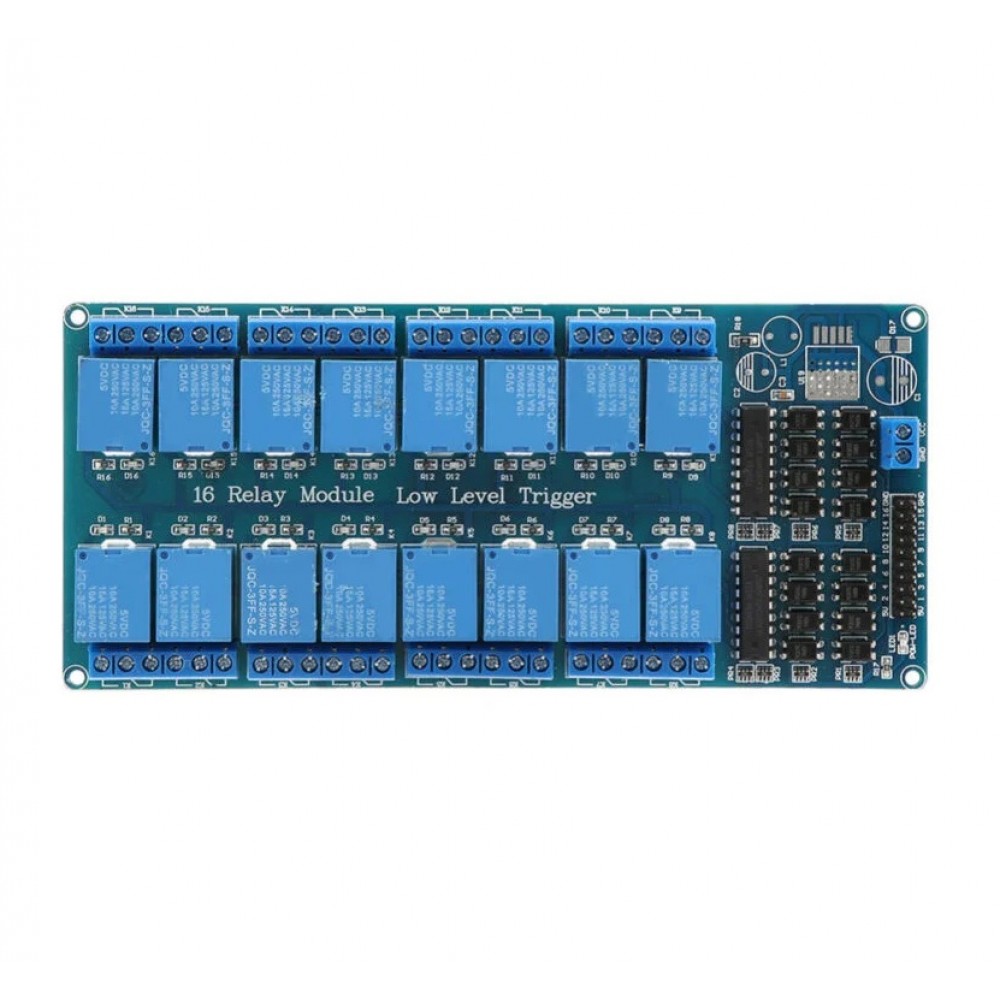

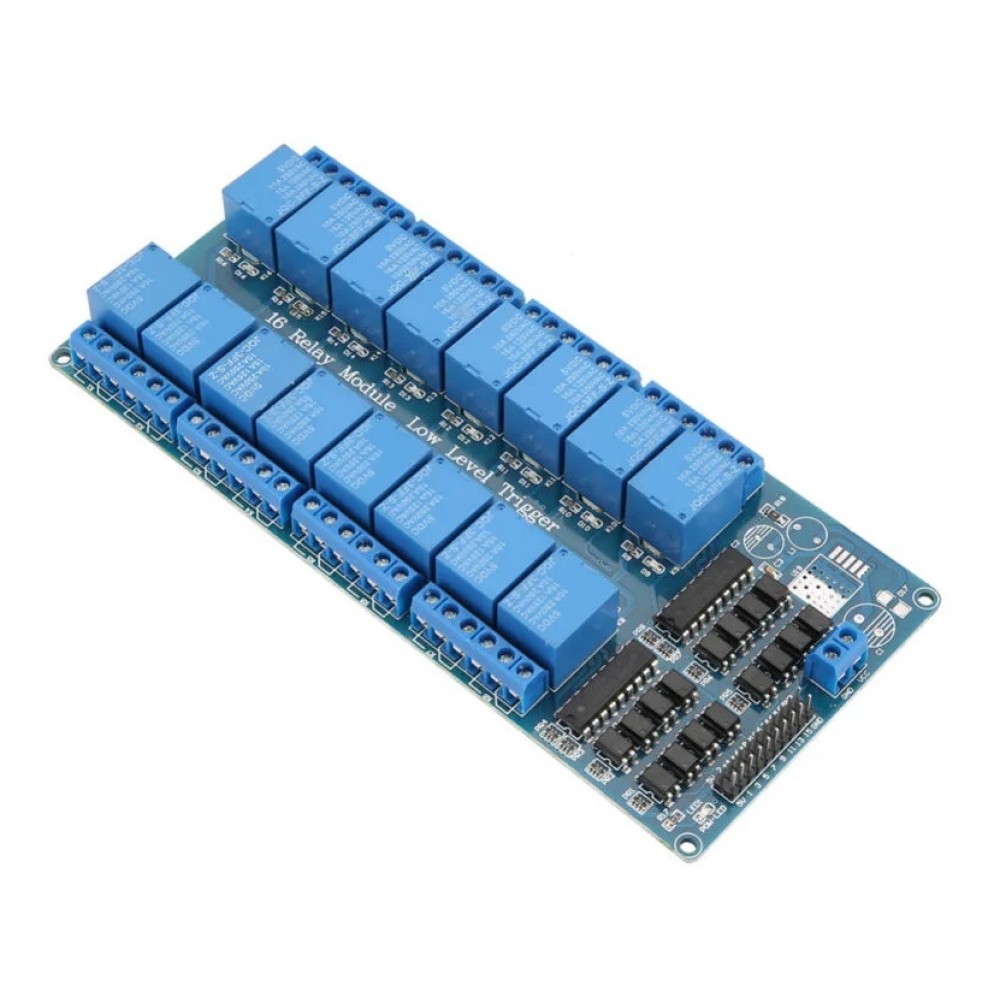

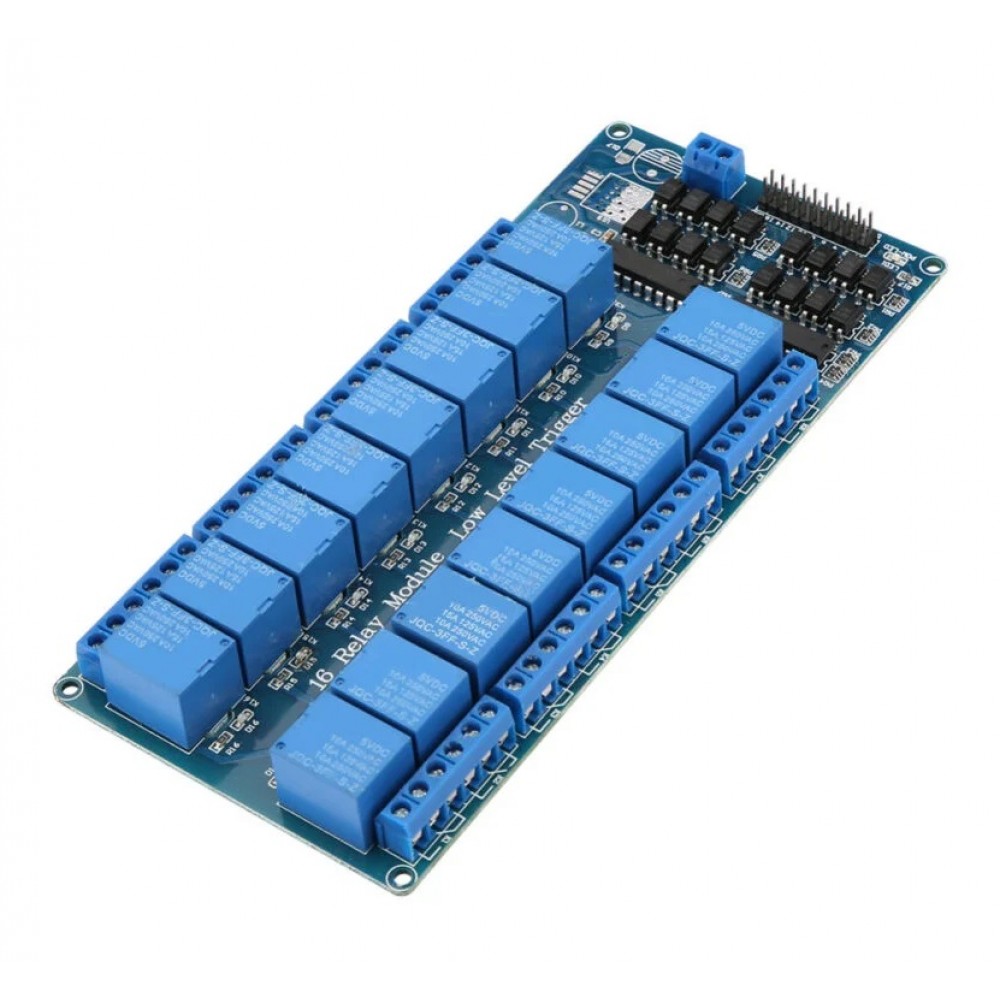

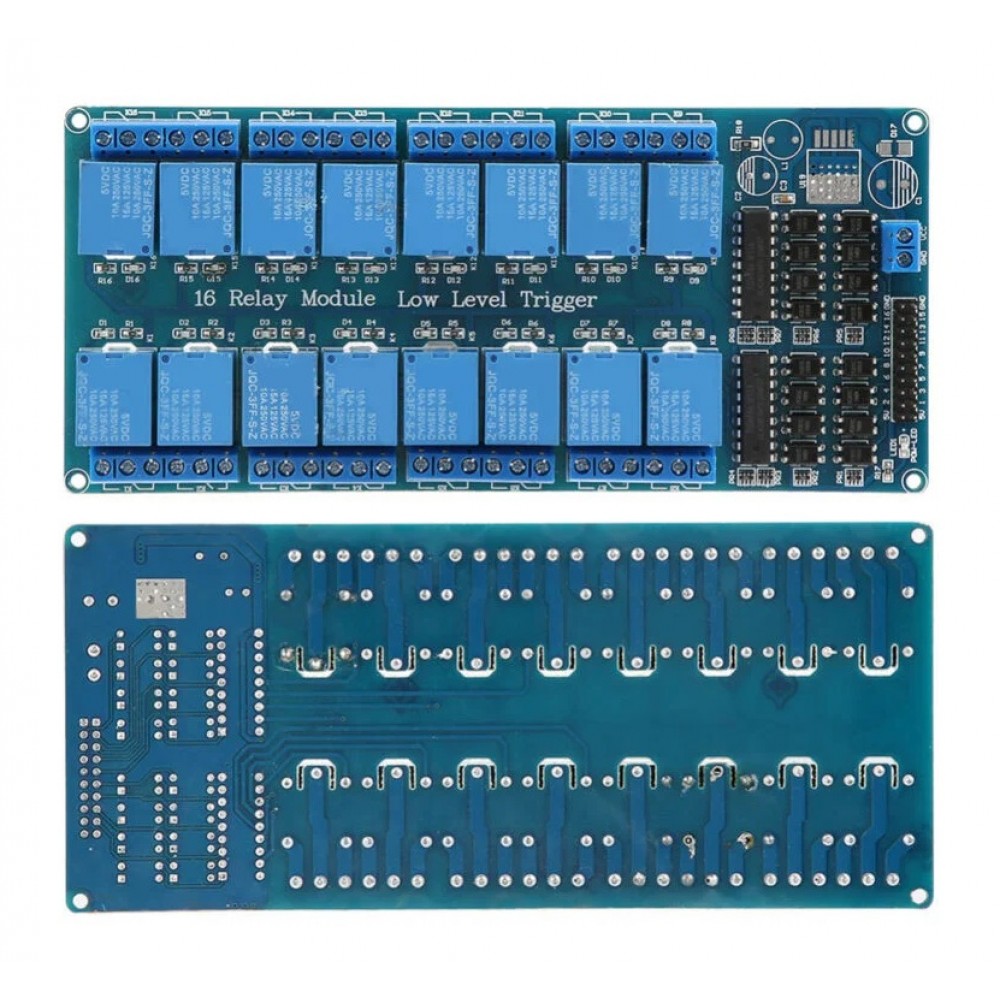

16 Channel 5V Relay Module with Optocoupler Isolation (16-Channel Opto-Isolated Relay Board)

The 16 Channel 5V Relay Module with Optocoupler Isolation is a high-capacity relay control board designed for switching multiple AC or DC electrical loads using microcontrollers, PLCs, and embedded control systems. Featuring sixteen independent relay channels with built-in optocoupler isolation, the module provides reliable electrical isolation between the control circuitry and high-power loads, ensuring safe and stable operation. Operating from a 5V DC supply, it is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi (with appropriate interfacing), and industrial automation controllers. The onboard LED indicators and screw terminal connections make installation and monitoring simple and convenient.

Key Features -

• Sixteen independent relay channels

• 5V DC operating voltage

• Built-in optocoupler isolation

• LED status indicator for each relay

• High-current mechanical relay outputs

• Screw terminal connections for secure wiring

• Compatible with microcontrollers and PLCs

• Reliable electrical isolation

• Compact PCB module

• Suitable for automation and control applications

Specifications -

• Product type - Relay Control Module

• Model - 16 Channel Relay Board with Optocoupler

• Number of channels - 16

• Operating voltage - 5V DC

• Relay type - Mechanical Relay

• Isolation - Optocoupler Isolation

• Maximum switching voltage - 250V AC / 30V DC

• Maximum switching current - 10A per Channel

• Input type - Digital Logic Control

• Output contacts - NO, NC and COM

• Mounting type - PCB Module

Applications -

• Home automation systems

• Industrial automation

• PLC control systems

• Embedded electronic control

• Electrical appliance switching

• Lighting control

• Motor and pump control

• IoT projects

• Robotics

• Smart building automation
