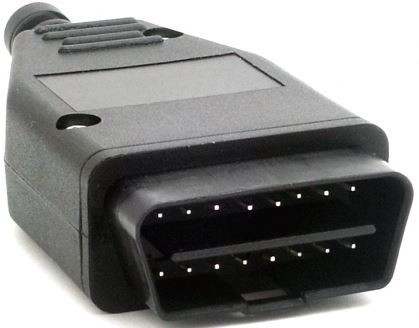

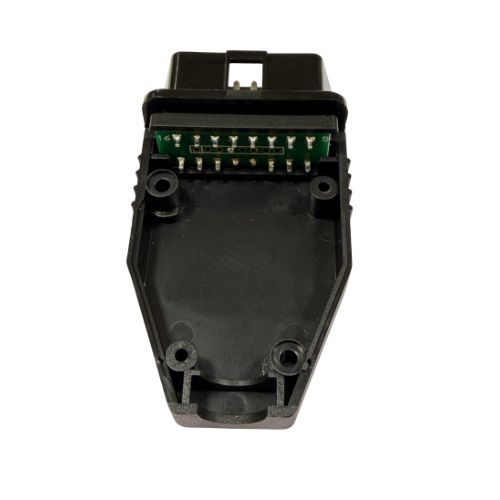

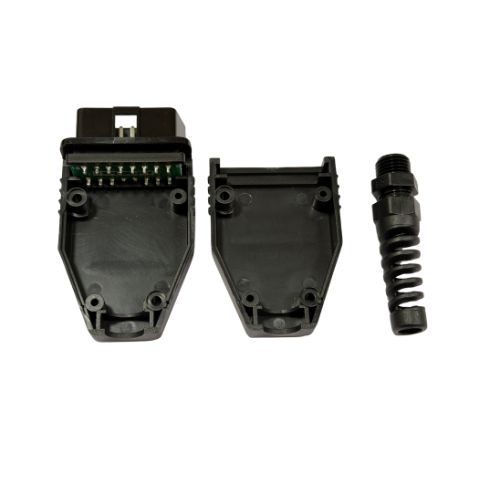

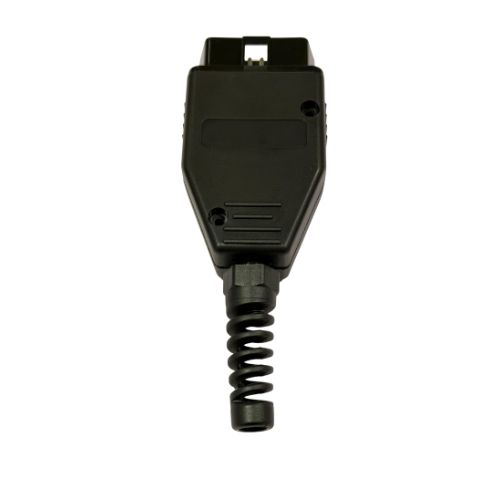

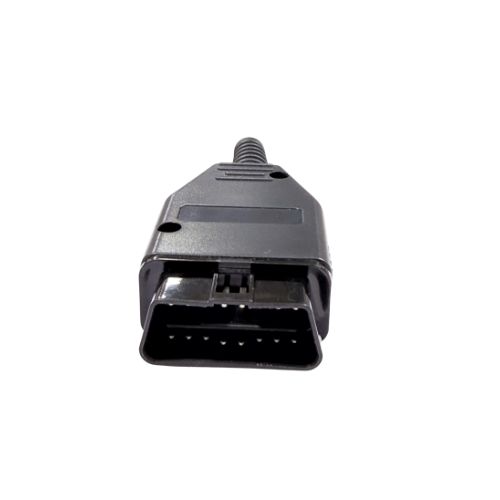

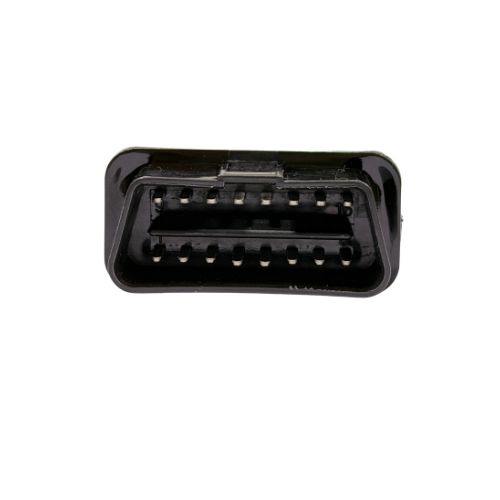

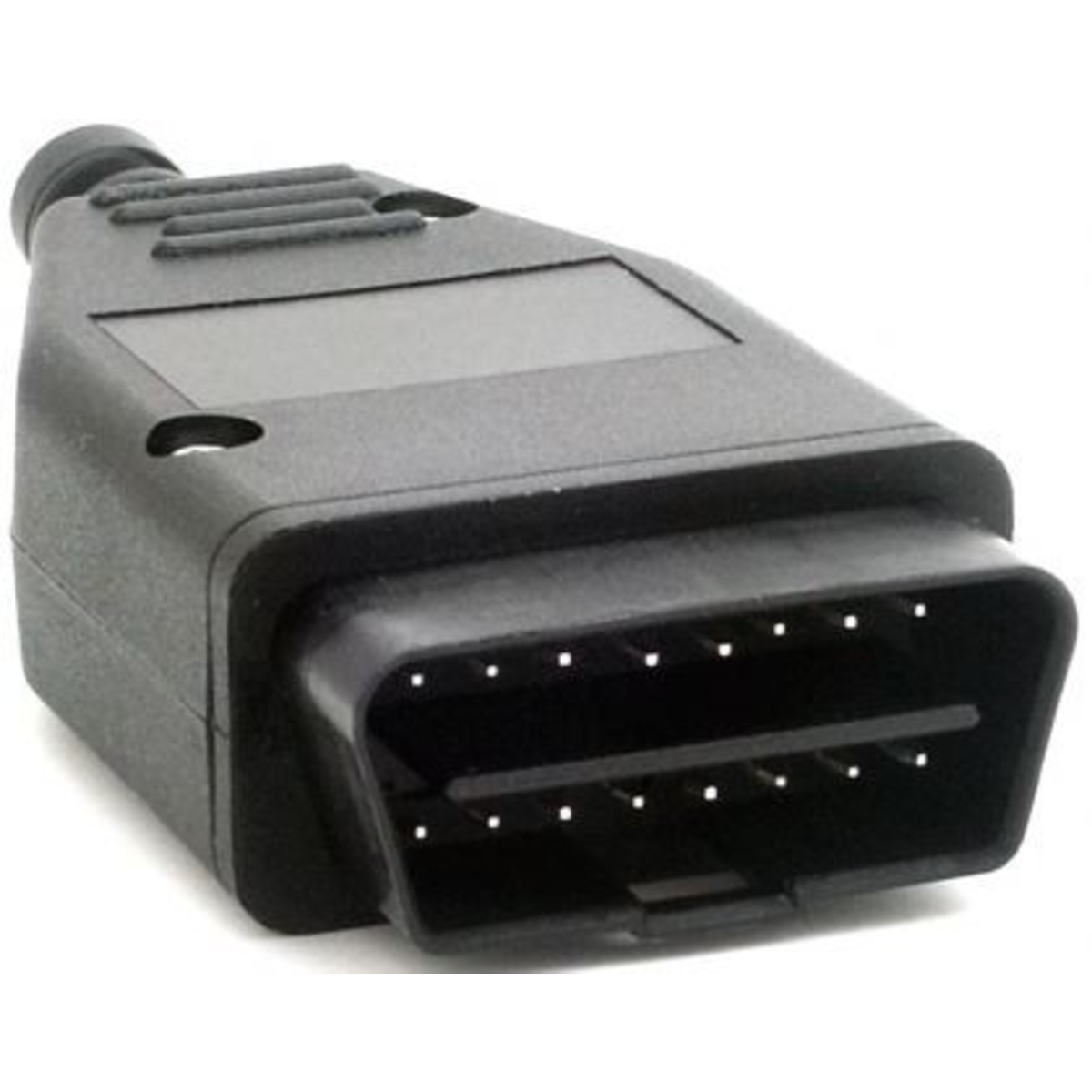

16 Pin OBD-II Male Connector (Automotive Diagnostic Plug)

The 16 Pin OBD-II Male Connector is a standard automotive diagnostic connector designed for building or repairing OBD-II diagnostic cables, vehicle interface devices, and automotive testing equipment. It provides access to the vehicle's On-Board Diagnostics (OBD-II) communication lines, allowing connection to diagnostic scanners, telematics systems, ECU programmers, and custom automotive electronics. The connector is compatible with most OBD-II compliant vehicles.

Key Features -

• Standard 16-pin OBD-II male connector

• Compatible with OBD-II compliant vehicles

• Durable automotive-grade construction

• Reliable electrical connections

• Suitable for custom diagnostic cable assembly

• Supports multiple OBD communication protocols

• Easy soldering or wiring connection

• Compact and robust design

• Ideal for automotive electronics projects

• Suitable for repair and replacement applications

Specifications -

• Product type - OBD-II Male Connector

• Connector type - 16-Pin Male

• Standard - OBD-II (SAE J1962)

• Number of pins - 16

• Contact material - Metal Alloy Contacts

• Housing material - High-Strength Plastic

• Mounting type - Cable Mount

• Application - Automotive Diagnostic Interface

• Compatibility - OBD-II Compliant Vehicles

• Color - Black (Model Dependent)

Applications -

• Automotive diagnostic tools

• OBD-II scanner cables

• ECU programming

• Vehicle data logging

• Fleet management systems

• Telematics devices

• Automotive testing equipment

• DIY automotive electronics
