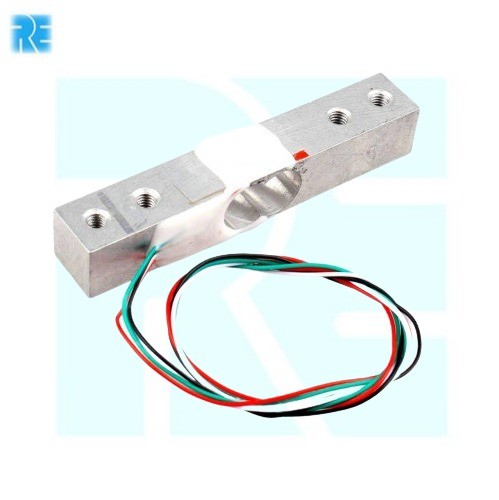

1Kg Load Cell Electronic Weighing Scale Sensor Aluminium Strain Gauge Weight Sensor (1Kg Load Cell)

The 1Kg load cell is a precision strain gauge based weight sensor designed for electronic weighing scale applications. It converts applied force into a proportional electrical signal and is suitable for compact weighing and measurement systems.

Key Features -

• Rated capacity 1Kg load measurement
• High accuracy strain gauge sensor
• Aluminium alloy construction for stability
• Compact size for small weighing systems
• Low creep and high repeatability
• Compatible with HX711 and ADC modules

Specifications -

• Sensor type - strain gauge load cell
• Capacity - 1Kg
• Rated output - approx 2.0mV per V typical
• Accuracy class - C2 typical
• Input resistance - approx 1000 ohm
• Output resistance - approx 1000 ohm
• Excitation voltage - approx 5V to 10V
• Material - aluminium alloy

Applications -

• Electronic weighing scales
• Kitchen and pocket weighing machines
• Force and load measurement systems
• Industrial automation equipment
• DIY electronics and Arduino projects

Pinout Configuration -

• Red - excitation positive
• Black - excitation negative
• White - signal negative
• Green - signal positive
