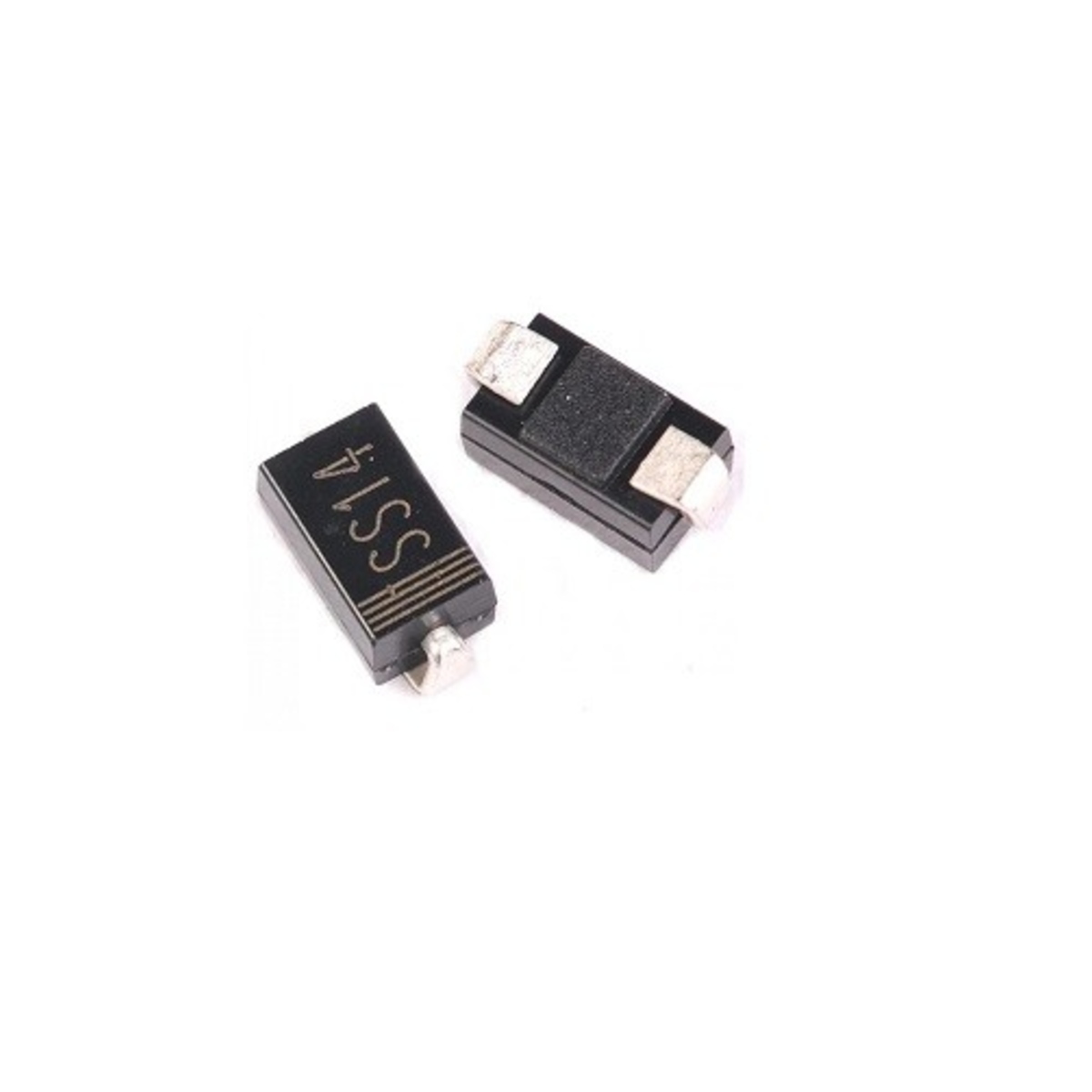

1N5819-SS14 Schottky Barrier Rectifier 1A 40V SMA DO-214AC (Schottky Rectifier Diode)

The 1N5819-SS14 Schottky Barrier Rectifier is a surface mount Schottky diode designed for high-efficiency rectification, reverse polarity protection, freewheeling, DC-DC converters, switching power supplies, and battery-powered applications. It features a 1A average forward current, 40V reverse voltage, and low forward voltage drop, delivering fast switching performance with reduced power losses.

Housed in a compact SMA (DO-214AC) package, the SS14 is the SMD equivalent of the popular 1N5819 Schottky diode and is widely used in consumer electronics, industrial equipment, automotive electronics, and power management circuits.

Key Features -

• Schottky barrier rectifier diode

• 1N5819 equivalent SMD diode

• 1A average forward current

• 40V peak reverse voltage

• Low forward voltage drop

• Fast switching performance

• Compact SMA (DO-214AC) package

• High efficiency with low power loss

Specifications -

• Product Type: Schottky Barrier Rectifier Diode

• Part Number: 1N5819-SS14

• Diode Type: Schottky Rectifier Diode

• Package Type: SMA (DO-214AC)

• Average Forward Current (IF): 1A

• Peak Repetitive Reverse Voltage (VRRM): 40V

• Forward Voltage (VF): Approximately 0.5V Maximum

• Peak Forward Surge Current (IFSM): 40A

• Mounting Type: Surface Mount (SMD)

• Operating Temperature: Minus 65 Degree Celsius to Plus 150 Degree Celsius

• Additional Features: Low forward voltage, fast switching, high surge capability, low power dissipation

Applications -

• Switching power supplies

• DC-DC converters

• Reverse polarity protection

• Battery charging circuits

• Freewheeling diode applications

• Solar power systems

• Power management circuits

• General-purpose electronic projects
