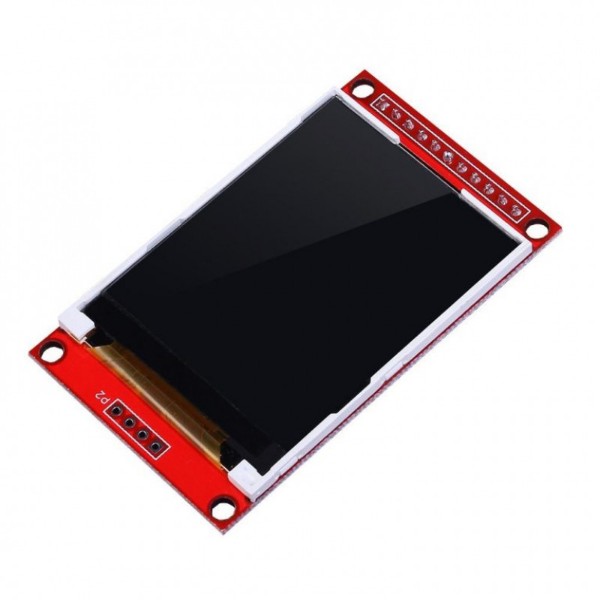

2.0 Inch SPI TFT LCD Color Screen Module ILI9225 Serial Interface 176×220

The 2.0 Inch SPI TFT LCD Color Screen Module with ILI9225 driver is a compact display designed for embedded systems and microcontroller projects requiring rich color graphics. It features a 176×220 pixel resolution panel with SPI serial interface for simple communication and low pin count. The ILI9225 controller provides fast display updates and smooth graphics rendering for text and images.

This LCD module is suitable for IoT devices, portable instruments, user interfaces, status displays, and DIY electronics projects. The small size and efficient SPI communication make it ideal for systems with limited I/O while delivering vibrant color output.

KEY FEATURES

• 2.0 inch color TFT LCD display
• 176×220 pixel resolution
• ILI9225 display controller
• SPI serial interface
• Rich color graphics support
• Wide viewing angles
• Low power consumption
• Easy microcontroller integration

SPECIFICATIONS

• Display Size = 2.0 inch
• Resolution = 176×220 pixels
• Controller = ILI9225
• Interface = SPI serial
• Color Support = Full RGB color
• Supply Voltage = 3.3V DC logic
• Viewing Angle = Wide viewing angles
• Mounting Type = PCB module

INTERFACES

• VCC = Power supply positive
• GND = Ground
• SCL/SCK = SPI clock
• SDA/MOSI = SPI data input
• RES = Reset input
• DC/RS = Data/command select
• CS = SPI chip select
• BL = Backlight control
