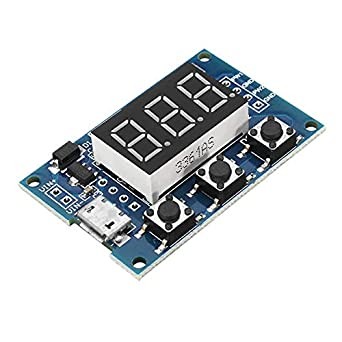

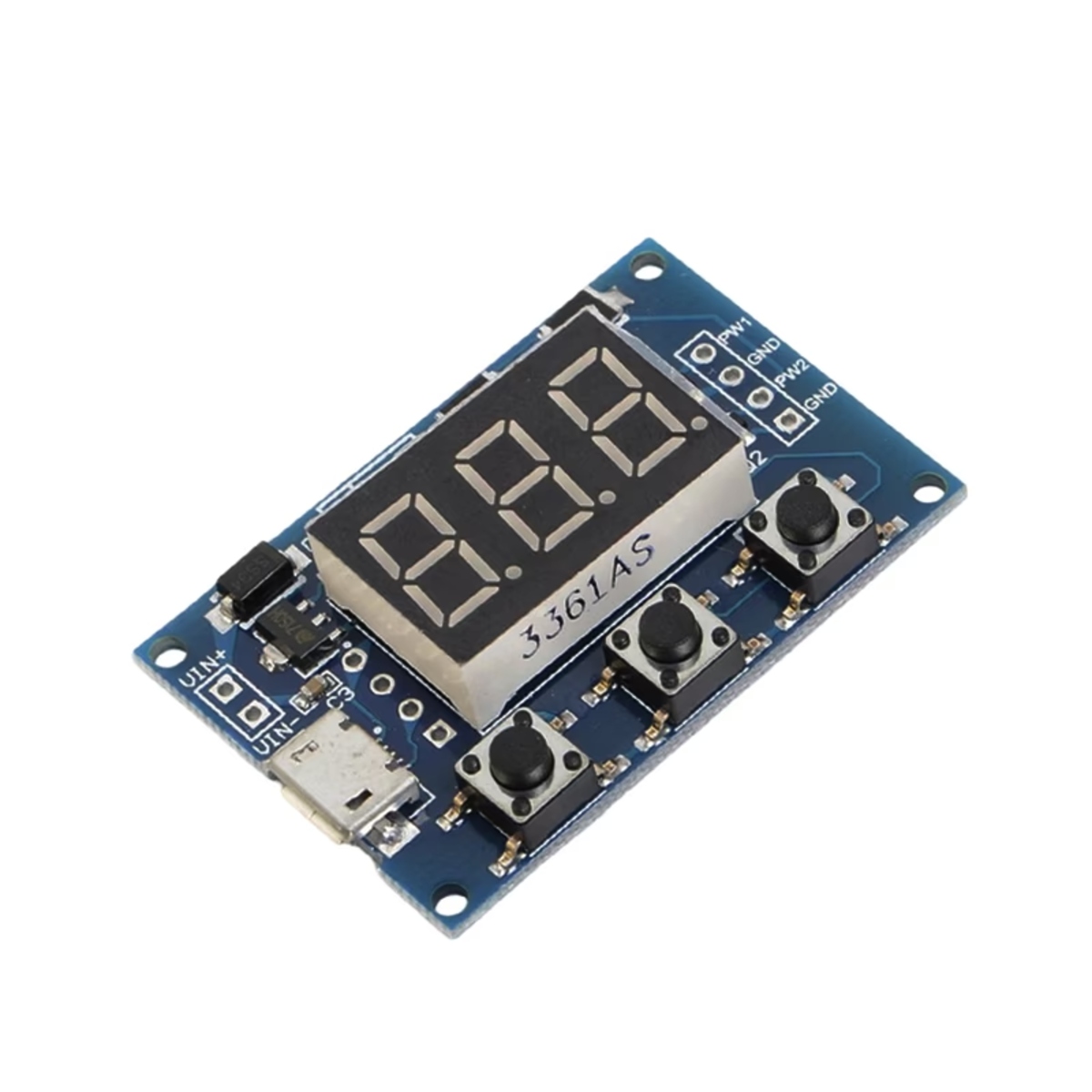

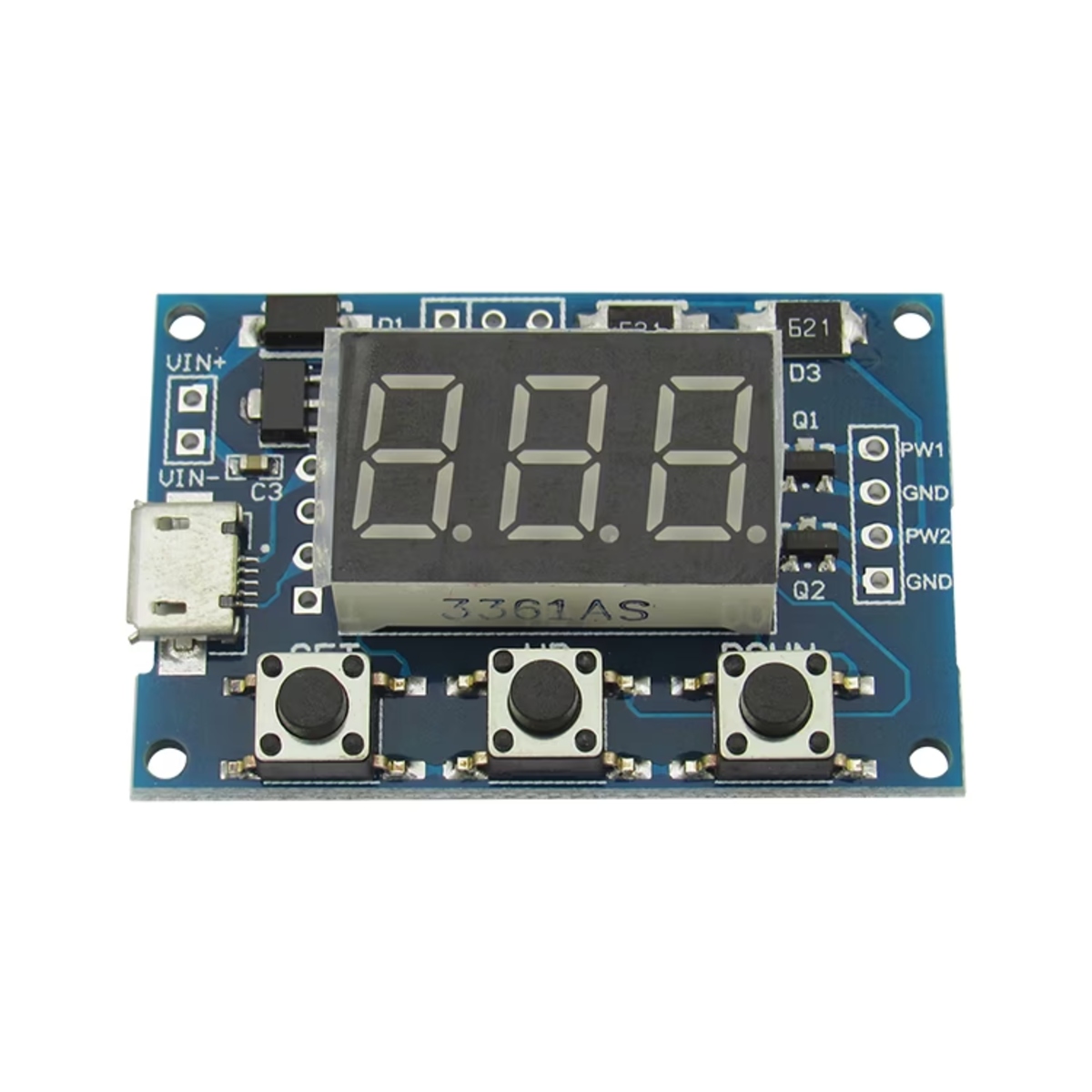

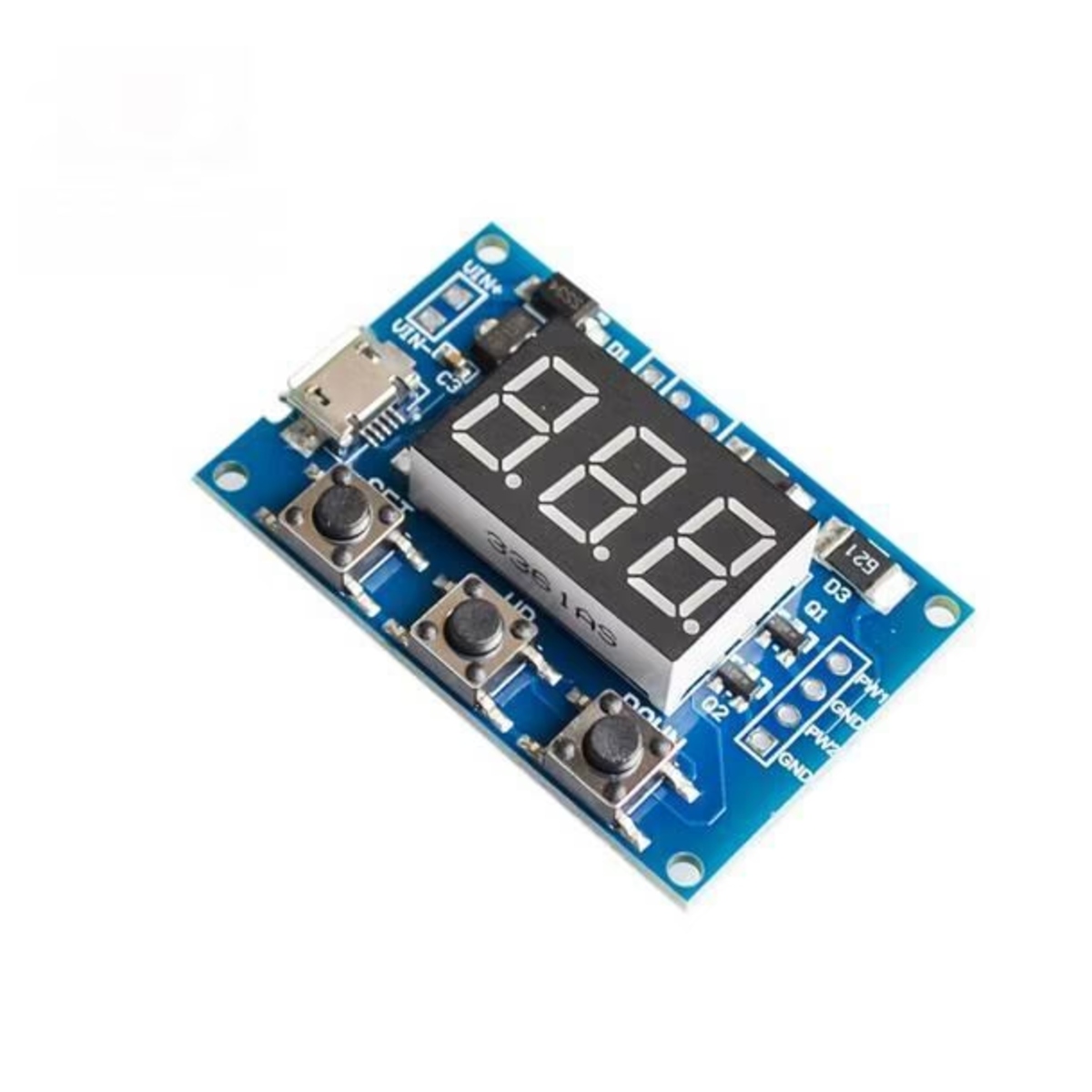

2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Rectangular Wave Signal Generator Module

The 2 Channel PWM Pulse Frequency Adjustable Duty Cycle Signal Generator Module is a dual output PWM waveform generator designed for flexible control of square and rectangular signals. Each output channel can be independently adjusted for frequency and duty cycle, making the module suitable for testing, control, and modulation applications. It delivers stable PWM signals for embedded systems, motor control, LED drivers, and electronics labs.

This PWM signal generator is ideal for PWM based experiments, waveform generation, motor speed control, power modulation, and general signal testing. The independent adjustment of both channels allows simultaneous multi signal output for complex control systems.

KEY FEATURES

• Dual independent PWM output channels
• Adjustable frequency for each channel
• Adjustable duty cycle control
• Generates square and rectangular wave signals
• Easy tuning and stable output
• Suitable for testing and control applications

SPECIFICATIONS

• Output Channels – 2 independent PWM outputs
• Signal Type – Square and rectangular pulse
• Frequency Range – Wide adjustable range
• Duty Cycle – Adjustable per channel
• Control Method – Potentiometer or digital interface
• Application – PWM signal generation and control

INTERFACES

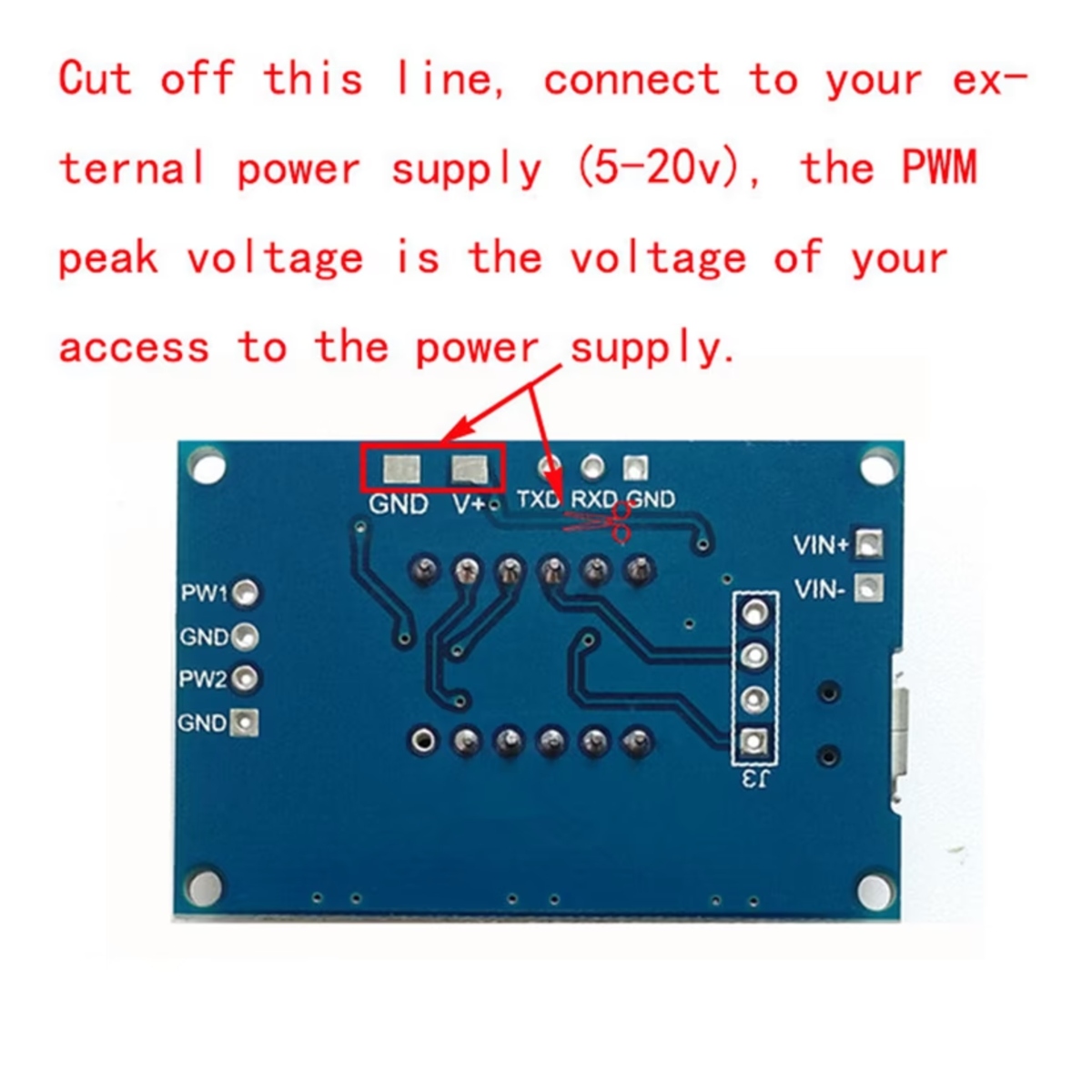

• VCC – Power supply input
• GND – Ground connection
• PWM OUT1 – Channel 1 PWM signal output
• PWM OUT2 – Channel 2 PWM signal output
• Frequency Adjust1 – Channel 1 frequency control
• Duty Adjust1 – Channel 1 duty control
• Frequency Adjust2 – Channel 2 frequency control
• Duty Adjust2 – Channel 2 duty control continuous adjustment
