CZL601 20Kg Load Cell Weight Sensor (Aluminium Strain Gauge, 1 Qty)

SKU: RSN-184Category: Sensors
₹ 436.60 (Inclusive of 18.00% GST)
Base Price: ₹ 370.00 | GST (18.00%): ₹ 66.60
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

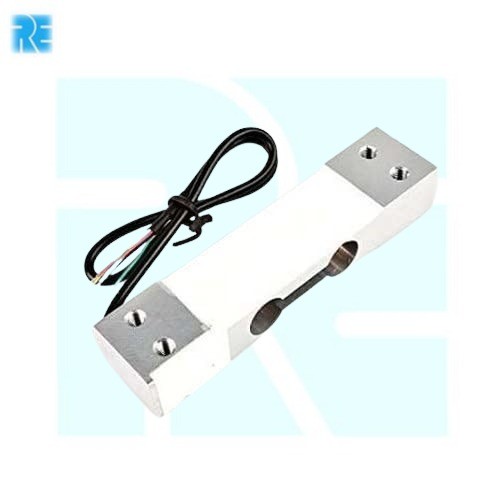

CZL601 20Kg Load Cell Weight Sensor (Aluminium Strain Gauge, 1 Qty)

The CZL601 20Kg Load Cell is a precision strain gauge based weight sensor designed for electronic weighing scales, industrial measurement equipment and automated weighing applications. Featuring a rated load capacity of 20Kg and durable anodized aluminium alloy construction, this load cell converts applied force into a proportional electrical signal for accurate and repeatable weight measurement.

The CZL601 load cell operates using strain gauges arranged in a Wheatstone bridge configuration to detect mechanical deformation when a load is applied. These resistance changes generate a low level differential voltage signal proportional to the applied weight. With a typical rated output sensitivity of 2.0mV/V and a compact single point beam structure, this sensor is suitable for platform scales, bench weighing equipment and industrial measurement systems. It can be connected to HX711 load cell amplifier modules, suitable ADC circuits and industrial weighing indicators for digital weight measurement.

Key Features

• CZL601 strain gauge based electronic load cell

• 20Kg rated weight measurement capacity

• Compact single point beam type construction

• Anodized aluminium alloy body for mechanical stability

• Typical rated output sensitivity of 2.0mV/V

• Low creep and good measurement repeatability

• IP65 protection rating, depending on variant

• Compatible with HX711 and suitable ADC modules

• Suitable for industrial and electronic weighing applications
