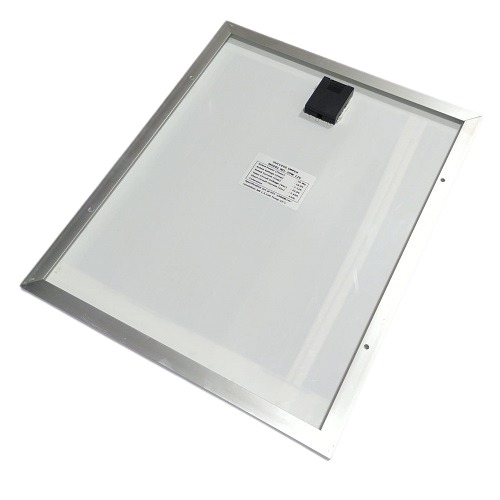

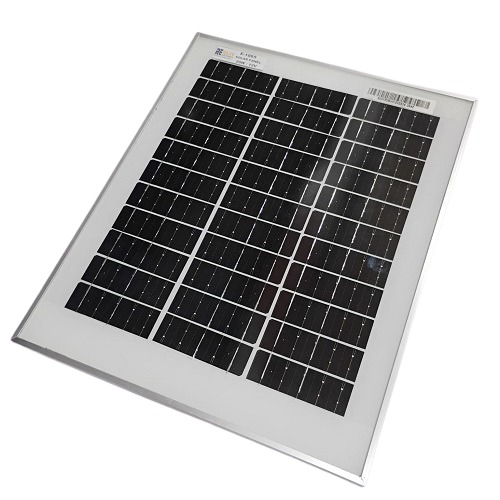

20W 12V Polycrystalline Solar Panel 425 x 345mm (DIY and Battery Charging)

The 20W 12V Polycrystalline Solar Panel is designed for small-scale solar power generation, DIY projects, battery charging, and low-power electronic applications. It uses polycrystalline solar cells to convert sunlight into electrical energy and provides a nominal 12V system output suitable for compatible charge controllers, batteries, and DC loads.

Key Features -

• 20W solar power rating

• Polycrystalline solar cell technology

• Suitable for 12V battery charging systems

• Compact 425 x 345mm panel size

• Suitable for DIY solar projects

• Designed for outdoor solar power applications

• Suitable for low-power DC applications

• Tolerance of ±3%

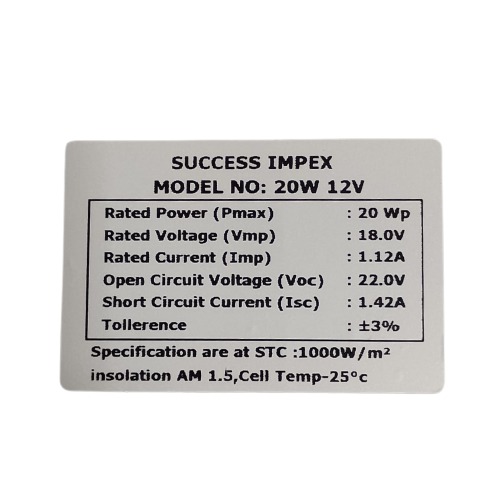

Specifications -

• Product Type: Polycrystalline Solar Panel

• Power Rating: 20Wp

• Rated Voltage: 18.0V

• Rated Current: 1.12A

• Open Circuit Voltage: 22.0V

• Short Circuit Current: 1.42A

• Cell Type: Polycrystalline

• Power Tolerance: ±3%

• Panel Size: 425 x 345mm

• Nominal System Voltage: 12V

• Operating Temperature: -25°C

• Output Type: DC

• Application: Solar Power Generation and Battery Charging

• Additional Features: Compact construction, photovoltaic power generation, suitable for DIY applications and small DC power systems

Applications -

• 12V battery charging

• DIY solar projects

• Solar lighting systems

• Small DC power systems

• Arduino and electronics projects

• Outdoor electronic devices

• Solar-powered equipment

• Low-power backup applications
