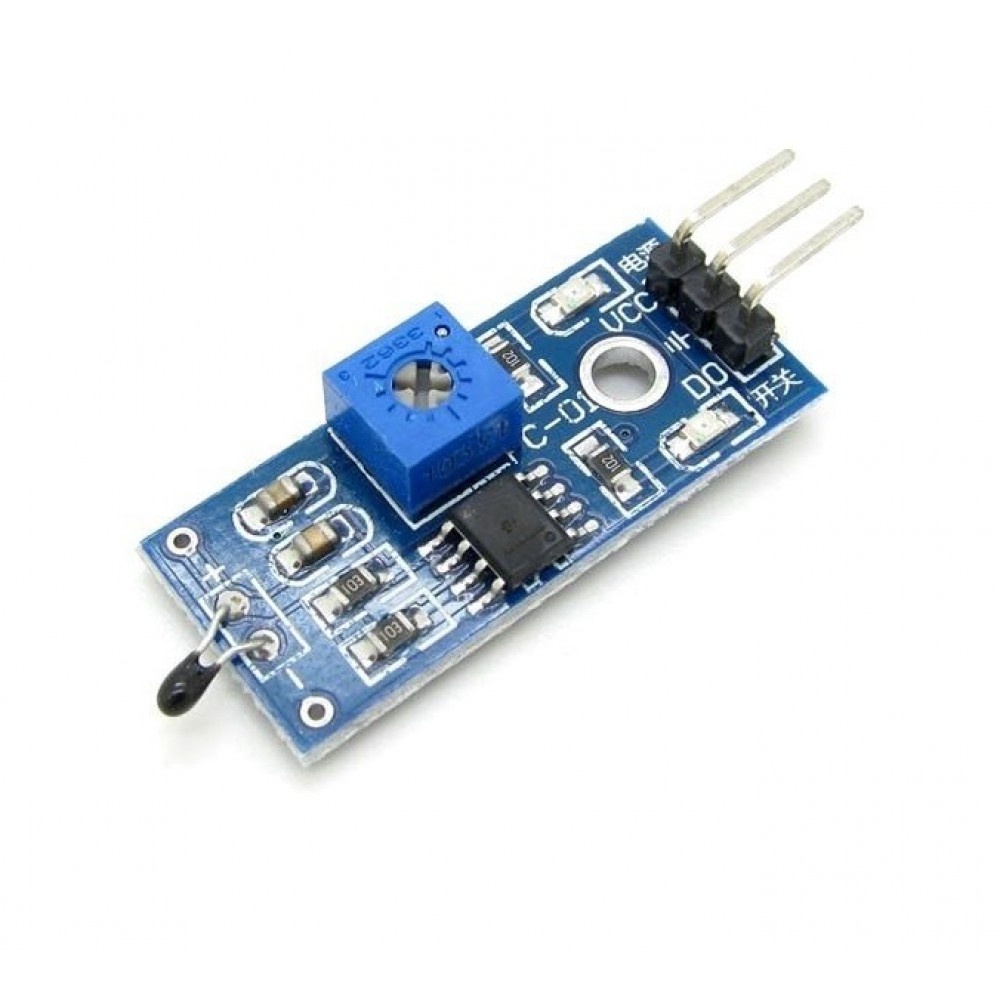

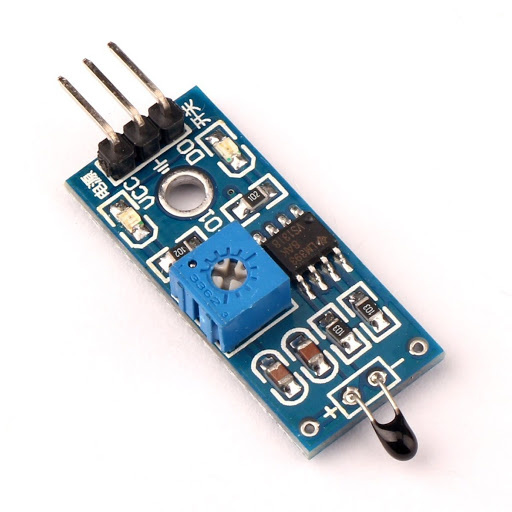

3 Pin NTC Thermistor Temperature Sensor Module (10K Analog Temperature Sensor)

The 3 Pin NTC Thermistor Temperature Sensor Module is a compact analog temperature sensing module designed for accurate temperature measurement using a Negative Temperature Coefficient (NTC) thermistor. As the temperature increases, the resistance of the thermistor decreases, producing a corresponding analog voltage that can be measured by a microcontroller or analog input circuit.

Operating from 3.3V to 5V DC, the module is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi (with ADC), and other embedded platforms. It is widely used in temperature monitoring, battery management systems, HVAC equipment, industrial automation, environmental monitoring, and DIY electronics projects.

Key Features -

• NTC thermistor-based temperature sensing

• Standard 3-pin interface for easy connection

• Analog voltage output proportional to temperature

• Fast thermal response

• Compact PCB module design

• Stable and reliable temperature measurement

• Compatible with 3.3V and 5V systems

• Easy integration with microcontrollers

• Low power consumption

• Suitable for embedded and industrial applications

Specifications -

• Product type - NTC Thermistor Temperature Sensor Module

• Sensor type - NTC Thermistor

• Thermistor resistance - 10K Ohm at 25C (Typical)

• Output type - Analog Voltage

• Operating voltage - 3.3V to 5V DC

• Measurement range - -20C to +125C

• Measurement accuracy - ±1C (Typical)

• Response time - Fast Thermal Response

• Mounting type - PCB Module

• Application - Temperature Monitoring and Control

Applications -

• Temperature monitoring systems

• Battery management systems (BMS)

• HVAC control equipment

• Industrial automation

• Environmental monitoring

• Arduino and ESP32 projects

• IoT temperature sensing

• Home automation systems

• Educational electronics projects

• DIY electronics applications
