3D Printer Kit RAMPS 1.4 / Arduino Mega 2560 / DRV8825 Stepper Motor Drivers / 2004 LCD / PCB Heat Bed MK2B
The 3D Printer Kit RAMPS 1.4 / Arduino Mega 2560 / DRV8825 / 2004 LCD / PCB Heat Bed MK2B is a complete control solution for DIY and custom 3D printer builds. It combines motion control, stepper motor driving, user interface display, and heated bed support into a single integrated platform.
This kit is suitable for RepRap based 3D printers and CNC style machines requiring precise motor control and temperature regulation. It supports multiple stepper motors, thermistors, end stops, and heating elements, making it ideal for hobby, educational, and development applications.
KEY FEATURES

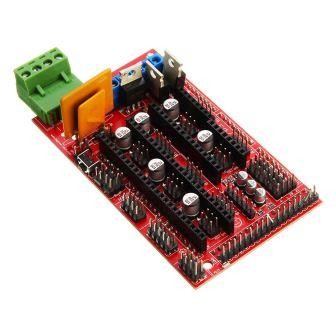

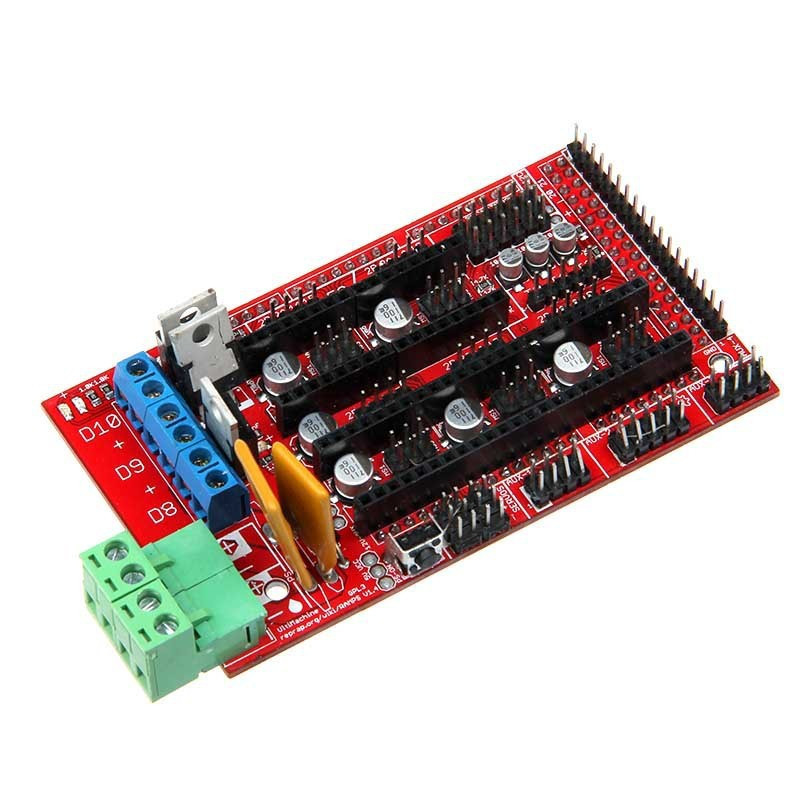

- RAMPS 1.4 control board for 3D printer systems
- Arduino Mega 2560 main controller board
- DRV8825 stepper motor drivers included
- 2004 LCD display with controller interface
- PCB Heat Bed MK2B for heated print surface
- Supports multiple stepper motors and heaters
- Compatible with common 3D printer firmware
SPECIFICATIONS
- Main Controller - Arduino Mega 2560
- Control Board - RAMPS 1.4
- Stepper Driver - DRV8825 up to 2.2A with cooling
- Display - 2004 LCD 20x4 character display
- Heat Bed - MK2B PCB heated bed
- Input Voltage - 12V DC recommended
- Supported Axes - X Y Z and Extruder
- Temperature Control - Thermistor based sensing
- Application - DIY 3D printer control system

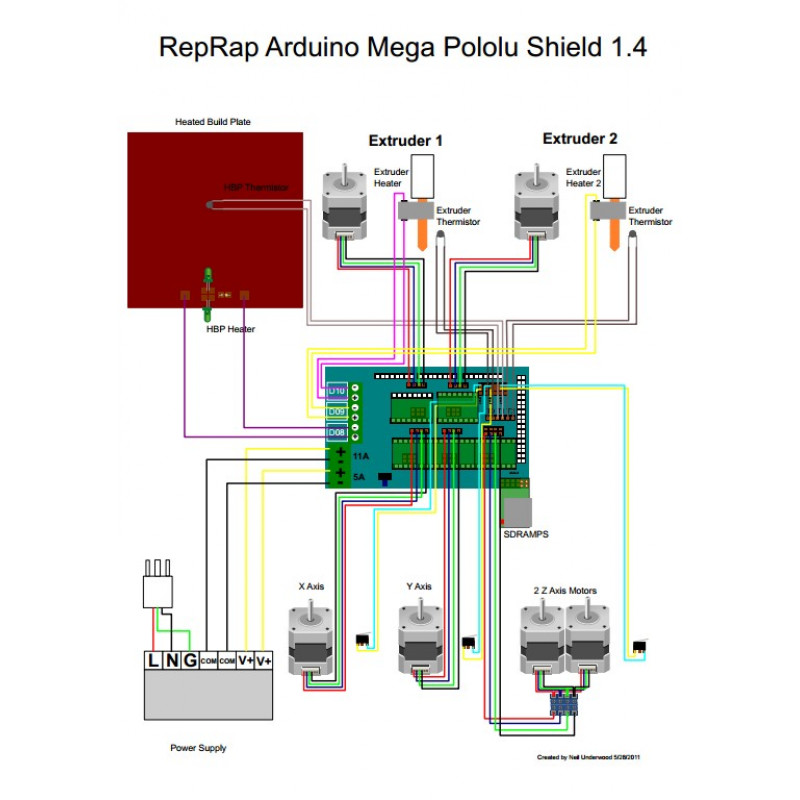

INTERFACES
- USB - Programming interface for Arduino Mega 2560
- Motor Outputs - X Y Z E stepper motor connectors
- End Stop - X Y Z limit switch inputs
- Heater Output - Hotend and heated bed terminals
- Thermistor Input - Temperature sensor inputs
- LCD Connector - 2004 display ribbon cable connection
- Power Input - 12V DC input terminals
