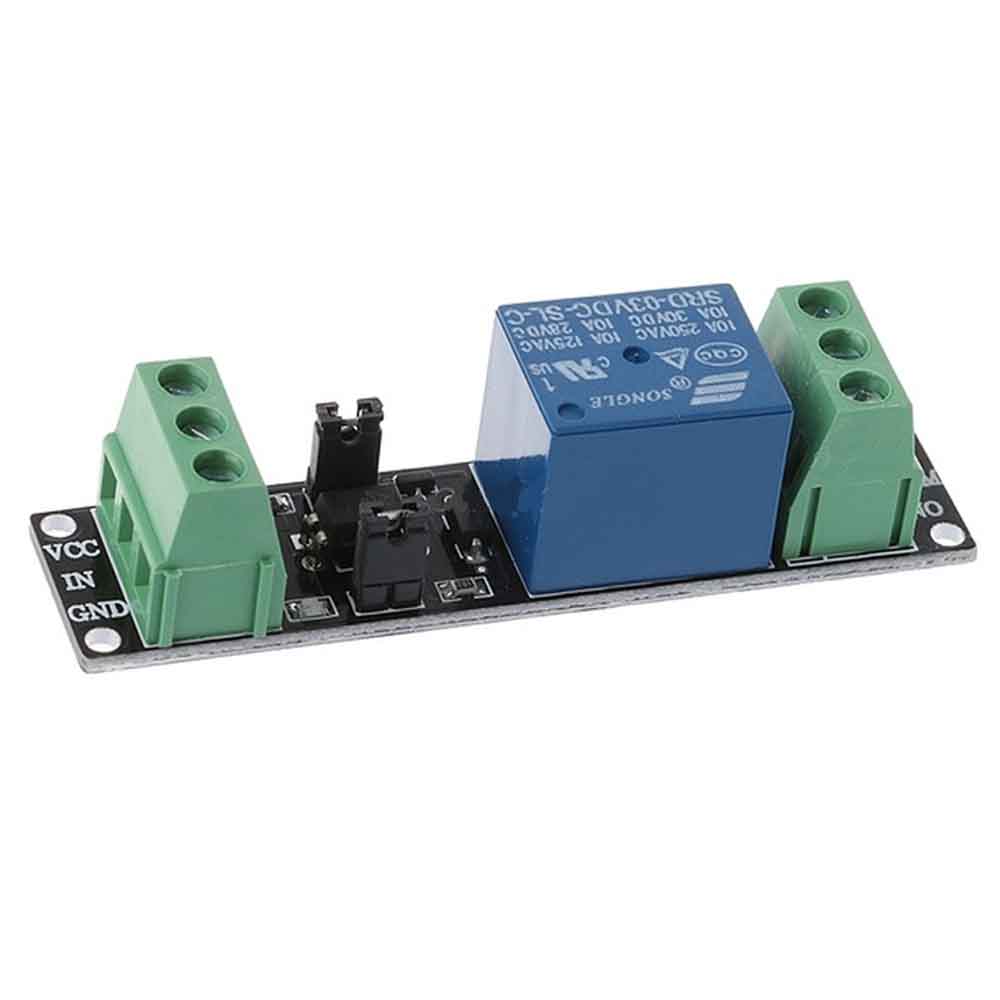

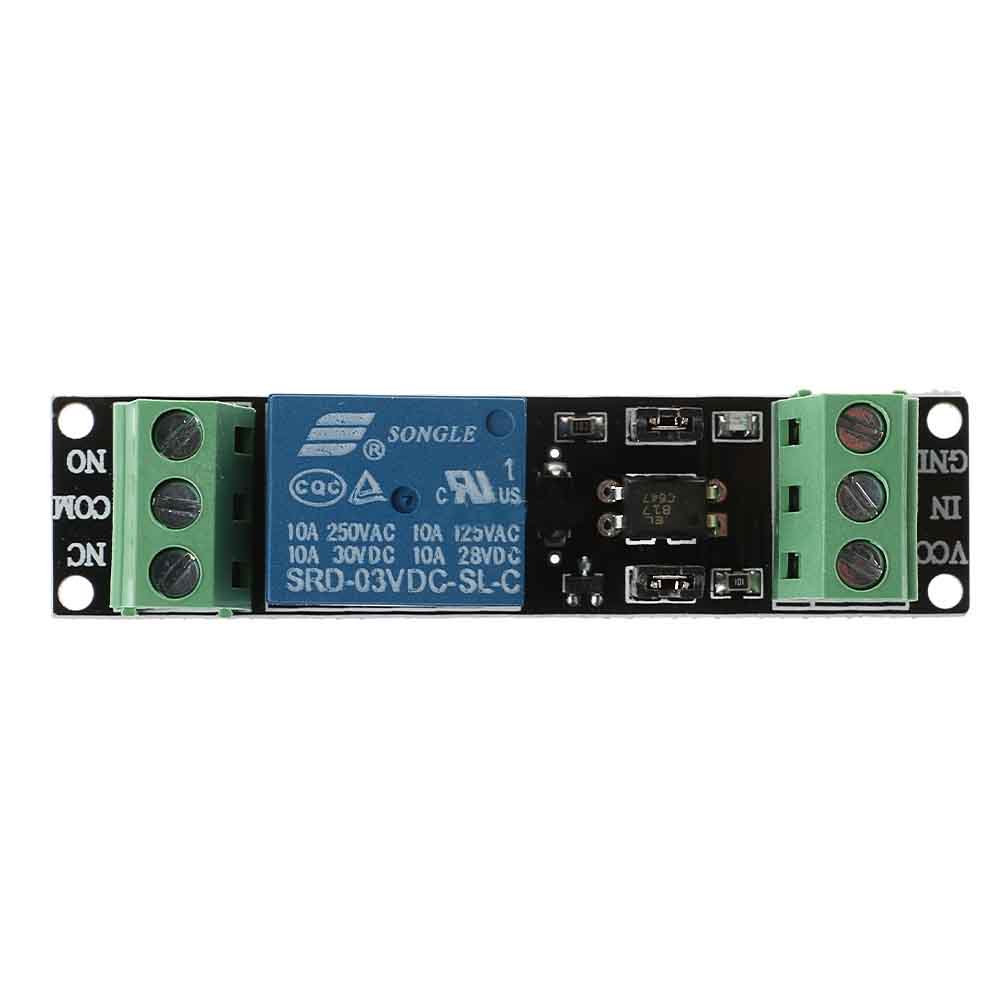

3V 1 Channel Relay Module With Optocoupler (High Level Trigger)

The 3V 1 Channel Relay Module With Optocoupler is a compact relay control board designed for switching AC or DC loads using a 3V high level control signal. It incorporates an optocoupler to provide electrical isolation between the control circuit and relay switching section, helping protect sensitive microcontroller circuits from electrical interference.

The module is suitable for Arduino, Raspberry Pi, development boards, and other low voltage control systems. It can be used to control lighting, motors, solenoids, fans, and other electrical loads within the relay contact rating.

KEY FEATURES -

• Single channel electromechanical relay

• 3V DC control voltage

• High level trigger input

• Optocoupler based electrical isolation

• Supports AC and DC load switching

• Compact PCB module design

• Suitable for microcontroller interfacing

• Provides isolation between control and load circuits

SPECIFICATIONS -

• Number of Channels = 1

• Control Voltage = 3V DC

• Relay Type = Electromechanical relay

• Trigger Type = High level

• Isolation Method = Optocoupler

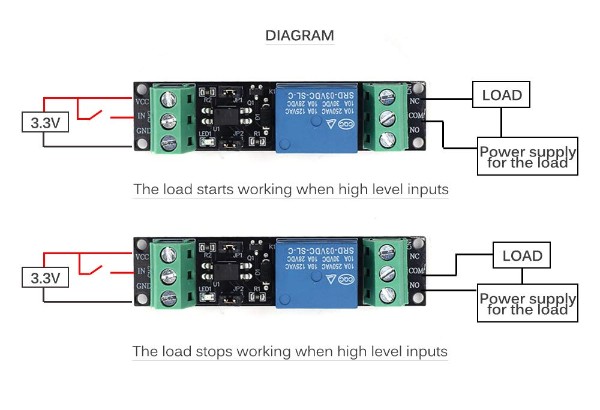

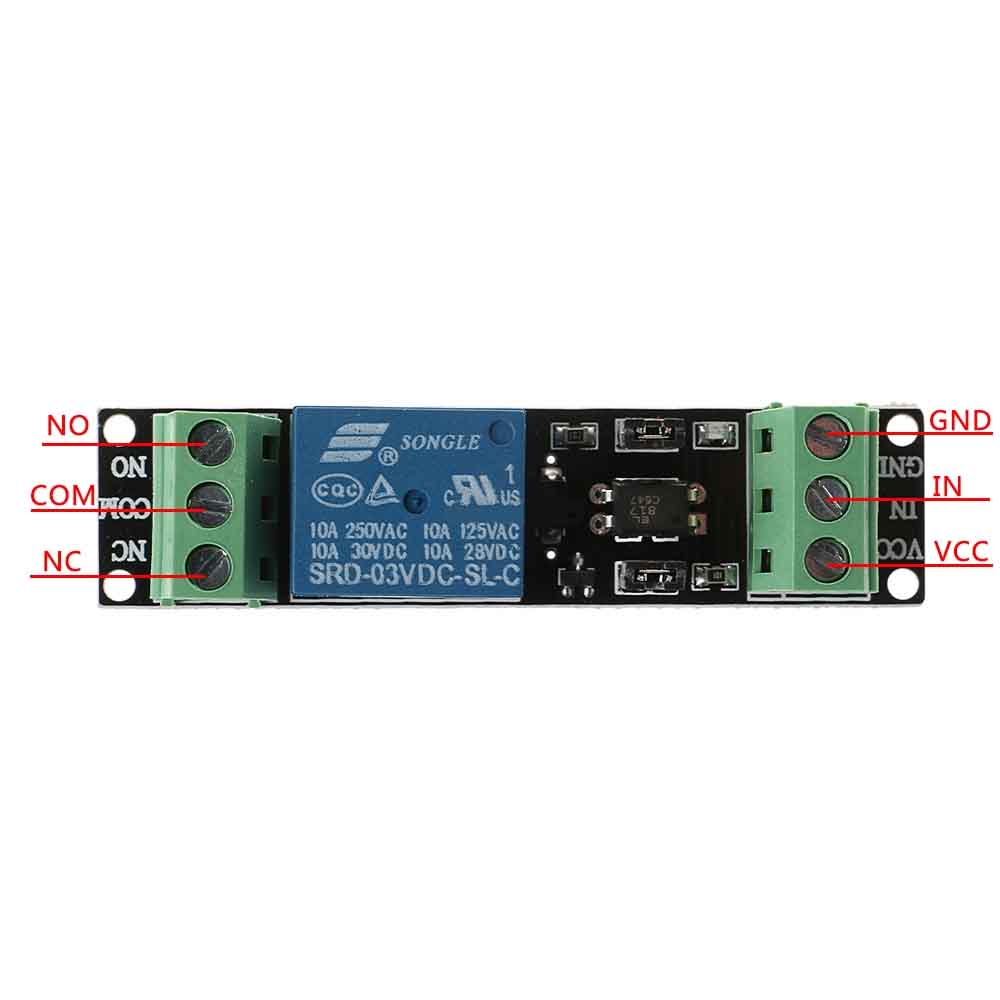

• Contact Configuration = NO / NC / COM

• Load Rating = Up to 10A typical, depending on relay specification

• Load Type = AC or DC

• Module Type = Isolated relay control module

APPLICATIONS -

• Arduino relay control

• Raspberry Pi projects

• Microcontroller based automation

• AC and DC load switching

• Motor and fan control

• Solenoid control

• Lighting control

• Industrial and DIY automation systems
