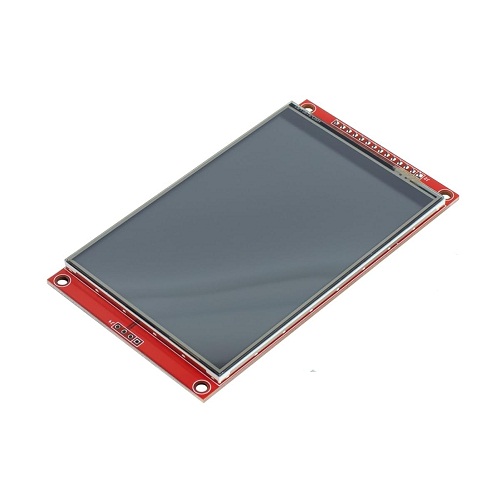

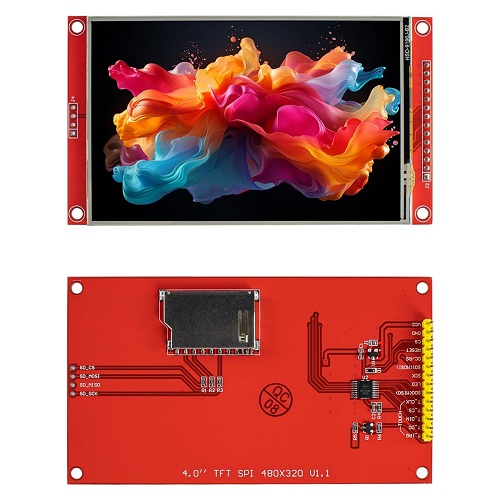

4 Inch SPI TFT LCD Display Module Without Touch ILI9486 480×320 (4-Wire SPI TFT Display 65K Colours)

The 4 Inch SPI TFT LCD Display Module is a high-quality non-touch display designed for embedded systems, microcontroller projects, and Human Machine Interface (HMI) applications. Featuring a 480 × 320 pixel resolution and driven by the ILI9486 controller, it delivers bright, sharp graphics with 65K colours. The 4-wire SPI interface ensures easy integration with popular development boards and microcontrollers, while support for both 3.3V and 5V logic makes it suitable for a wide range of electronics projects.

Key Features -

• 4.0-inch TFT LCD display

• 480 × 320 pixel resolution

• ILI9486 display driver IC

• 4-wire SPI communication interface

• Supports 65K colour display

• Compatible with 3.3V and 5V logic levels

• Bright and vivid display output

• Non-touch display design

• Mounting holes for secure installation

• Compact and lightweight module

Specifications -

• Product Type - TFT LCD Display Module

• Display Type - TFT LCD (Non-Touch)

• Screen Size - 4.0 Inch

• Resolution - 480 × 320 Pixels

• Driver IC - ILI9486

• Interface - 4-Wire SPI

• Colour Depth - 65K Colours (16-bit RGB)

• Operating Voltage - 3.3V to 5V

• Active Display Area - Approximately 55.68 × 83.52mm

• Module Dimensions - Approximately 61.74 × 108.04mm

• Brightness - Approximately 510cd/m²

• Weight - Approximately 58g

Applications -

• Human Machine Interface (HMI)

• Arduino projects

• ESP32 and STM32 development

• Raspberry Pi display projects

• Industrial control panels

• Instrumentation displays

• Embedded systems

• IoT devices

• Data visualization

• DIY electronics projects
