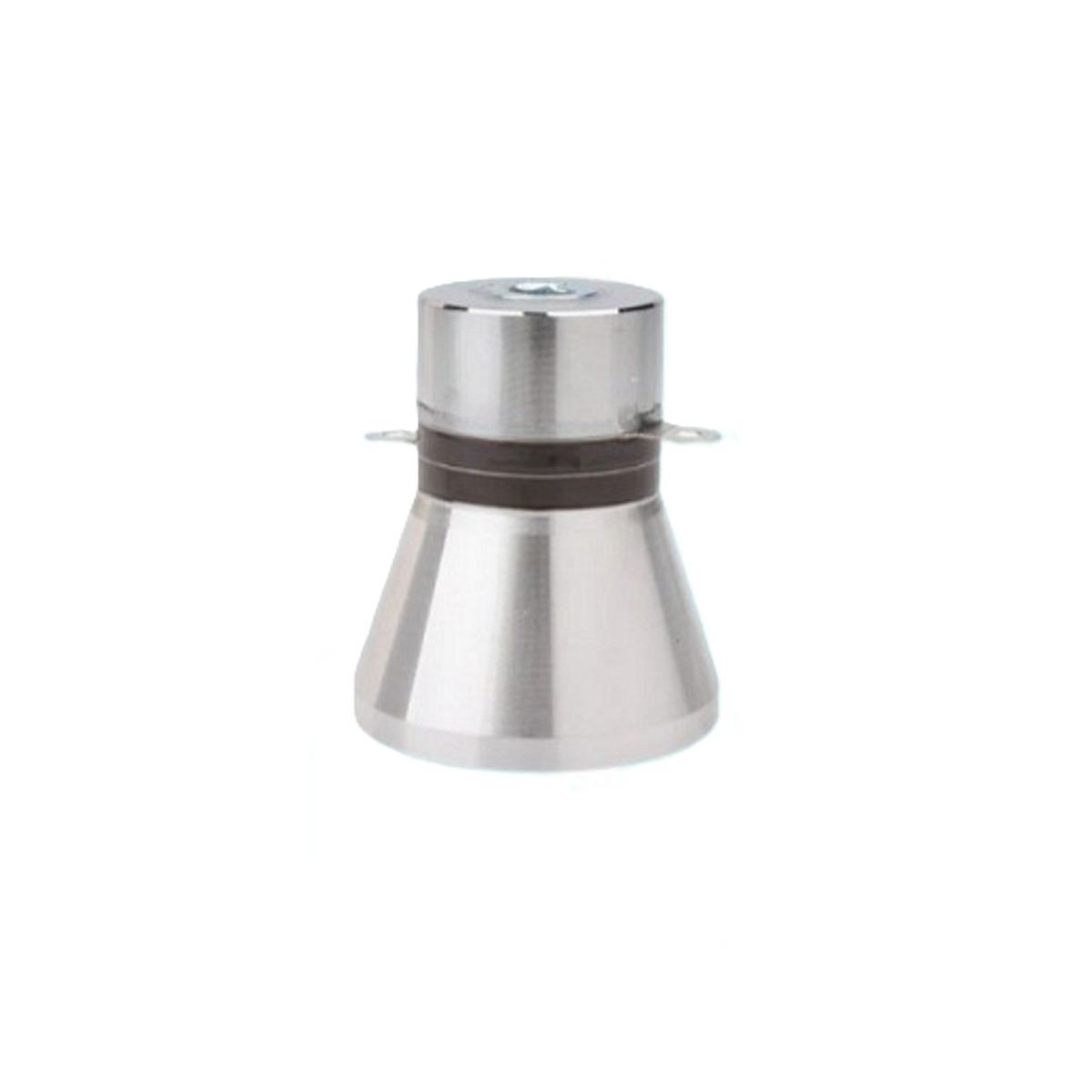

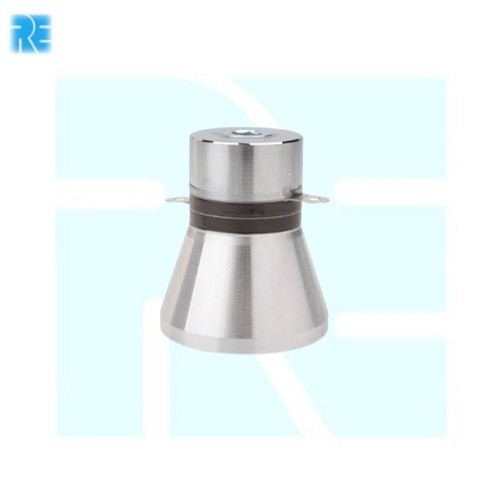

40KHz 60W Adjustable Ultrasonic Cleaning Transducer Piezoelectric Ultrasonic Cleaner Sensor High Efficiency Ultrasonic Vibrator (Ultrasonic Cleaning Transducer)
The 40KHz 60W adjustable ultrasonic cleaning transducer is a piezoelectric ultrasonic vibrator designed for ultrasonic cleaning systems and industrial cleaning equipment. It converts high frequency electrical energy into mechanical ultrasonic vibrations for efficient cleaning performance.
Key Features -
- Operating frequency 40KHz ultrasonic output
- Rated power output 60W
- Adjustable ultrasonic cleaning intensity
- High conversion efficiency piezoelectric design
- High mechanical Q value for stable performance
- Good heat resistance and large vibration amplitude
Specifications -
- Type - ultrasonic cleaning transducer
- Frequency - 40KHz
- Power output - 60W
- Resonance impedance - less than equal to 25 ohm typical
- Capacitance - approx 3500pF to 4800pF typical
- Material - piezoelectric ceramic and aluminium alloy
- Operating temperature - approx 0 to 90 degree C
- Mounting type - bolt mounted ultrasonic transducer
Applications -
- Ultrasonic cleaning machines
- Jewellery and watch cleaning systems
- Medical instrument cleaning
- Industrial parts cleaning
- Laboratory ultrasonic cleaning equipment
- Automotive and mechanical cleaning systems
Pinout Configuration -
- Terminal 1 - ultrasonic drive input
- Terminal 2 - ultrasonic drive input
- Mounting bolt - mechanical fixing connection
