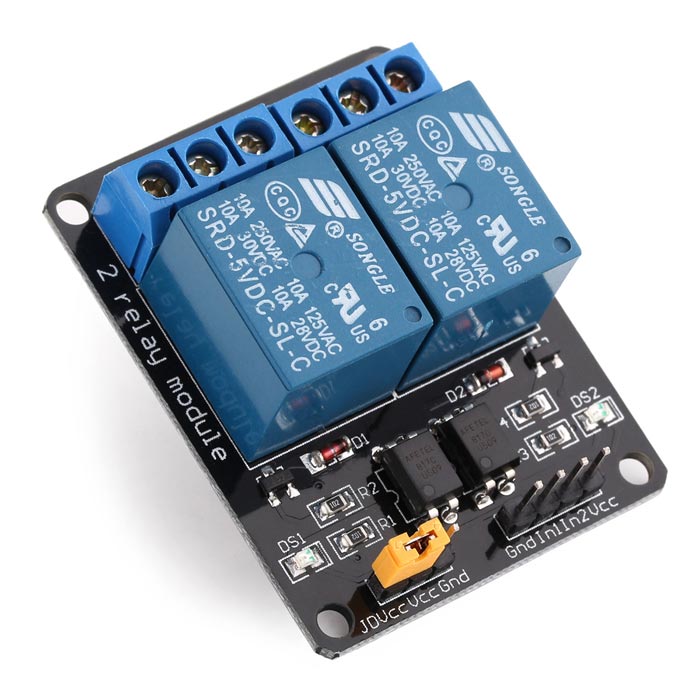

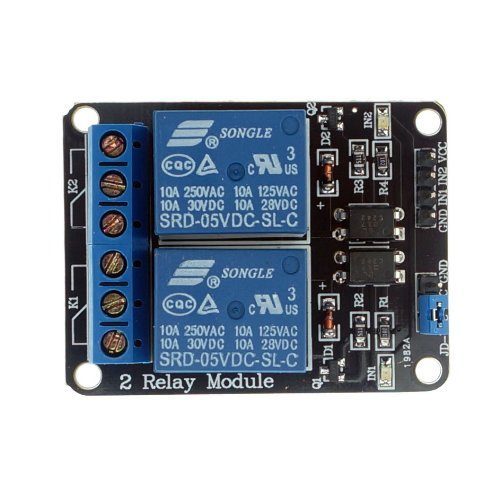

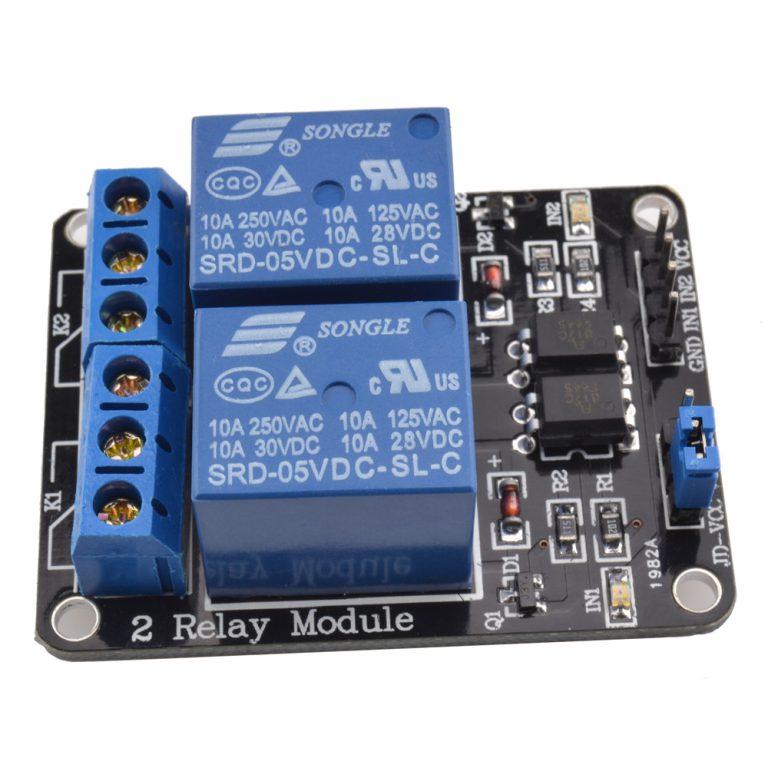

5V 2 Channel Relay Module with Optocoupler
The 5V 2 Channel Relay Module with Optocoupler is a reliable interface board designed for switching two independent high voltage loads using low voltage control signals. It features optocoupler isolation to protect the controlling microcontroller from voltage spikes and electrical noise. The module is compatible with 5V logic and works seamlessly with Arduino, Raspberry Pi (with level shifting), ESP boards, and other microcontroller platforms.
Ideal for home automation, robotics, and industrial control projects, this relay module allows safe switching of high power devices such as motors, lights, and appliances. The onboard indicator LEDs provide visual status of each relay channel, and the screw terminal connectors make wiring simple and secure.
KEY FEATURES
- Operates on 5V DC logic
- 2 independent relay channels
- Optocoupler isolation for protection
- LED status indicators for each channel
- Supports high voltage switching
- Easy screw terminal connections
- Compatible with microcontrollers and development boards
- Suitable for automation and control projects
SPECIFICATIONS
- Control Voltage 5V DC
- Number of Channels 2
- Isolation Optocoupler based
- Relay Type Mechanical
- Max Switching Voltage AC 250V / DC 30V
- Max Switching Current 10A per channel
- Input Interface Logic level
INTERFACES
- VCC 5V DC power input
- GND Ground
- IN1 Control input for relay 1
- IN2 Control input for relay 2
- COM1 Common terminal for relay 1
- NO1 Normally Open terminal relay 1
- NC1 Normally Closed terminal relay 1
- COM2 Common terminal for relay 2
- NO2 Normally Open terminal relay 2
- NC2 Normally Closed terminal relay 2
