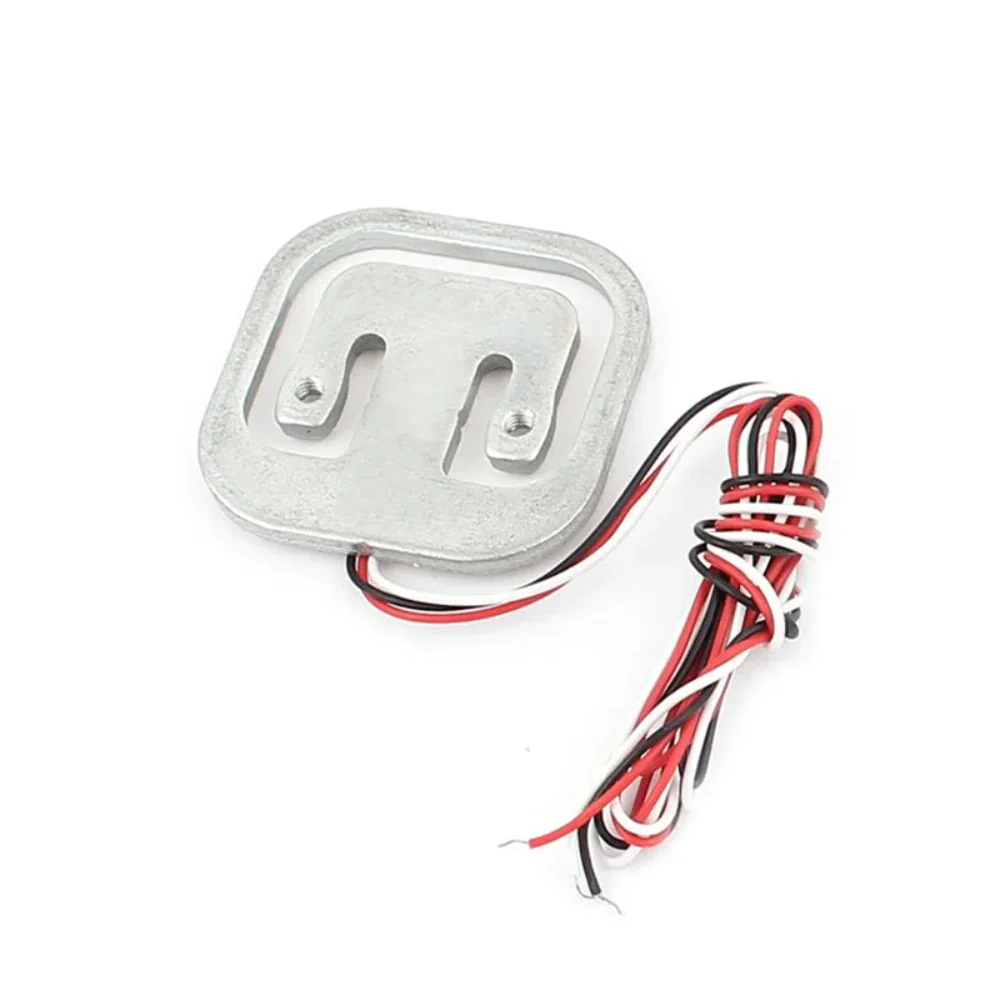

50kg Half-Bridge Load Cell Sensor (Body Scale)

The 50kg Half-Bridge Load Cell Sensor is a strain gauge-based weight sensing element designed for electronic weighing, body scales, force measurement, and DIY weighing projects. It uses a half-bridge configuration and can be combined with additional load cells to form a full Wheatstone bridge for accurate weight measurement.

The lightweight aluminum alloy construction and compatibility with HX711 amplifier modules make it suitable for embedded weighing systems, educational experiments, and small platform scales.

Key Features -

• 50kg rated load capacity

• Half-bridge strain gauge configuration

• Suitable for body scale applications

• High sensitivity output

• Lightweight aluminum alloy construction

• Compatible with HX711 amplifier modules

• Suitable for DIY weighing systems

• Stable and reliable performance

Specifications -

• Product Type = Half-Bridge Load Cell

• Rated Capacity = 50kg

• Bridge Type = Half Bridge

• Output Signal = Millivolt per Volt

• Excitation Voltage = 3V-10V DC

• Sensitivity = Approx. 1.0mV/V typical

• Material = Aluminum Alloy

• Operating Temperature = -10°C to +40°C

• Application = Body Scale / Weight Measurement / Force Sensing

Applications -

• Digital weighing scales

• Body weighing scales

• DIY weighing systems

• Arduino weighing projects

• HX711 load cell projects

• Force measurement

• Educational experiments

• Embedded weighing systems
