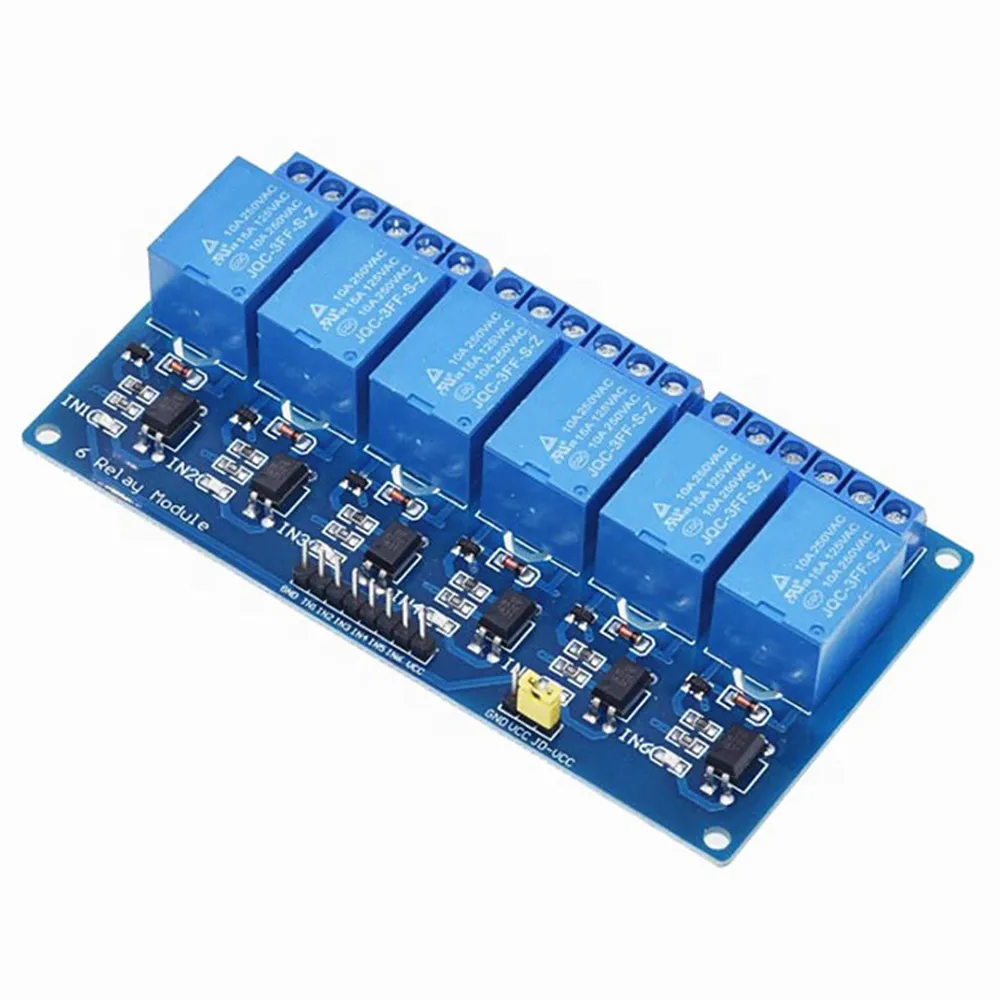

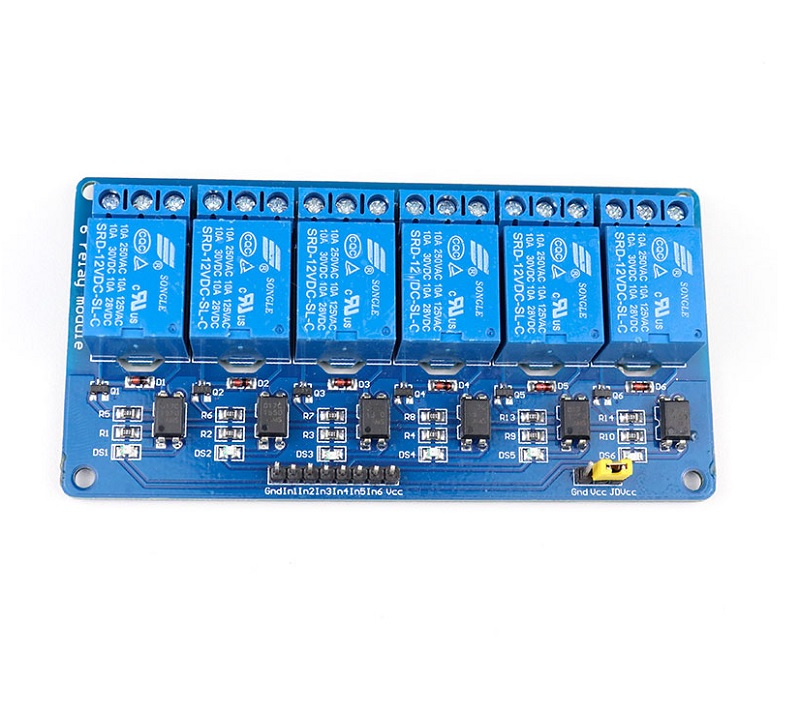

6 Channel 12V Relay Module with Optocoupler Isolation (6-Channel Opto-Isolated Relay Board)

The 6 Channel 12V Relay Module with Optocoupler Isolation is a reliable switching interface board designed to control six independent AC or DC loads using low-voltage control signals. Each relay channel features optocoupler isolation to electrically separate the control circuit from the relay circuit, improving noise immunity and protecting microcontrollers from voltage spikes. Operating from a 12V DC supply, the module is compatible with Arduino, ESP32, STM32, Raspberry Pi (with appropriate interfacing), PLCs, and other embedded control systems. It is ideal for industrial automation, home automation, robotics, power control, and IoT applications.

Key Features -

• Six independent relay channels

• 12V DC operating voltage

• Optocoupler isolation for enhanced protection

• LED indicators for relay status

• High-current mechanical relays

• Screw terminal connections for easy wiring

• Compatible with microcontrollers and PLCs

• Stable and reliable switching performance

• Compact PCB design

• Ideal for automation and control applications

Specifications -

• Product type - Relay Module

• Number of channels - 6

• Operating voltage - 12V DC

• Relay type - Mechanical Relay

• Isolation - Optocoupler Isolation

• Maximum switching voltage - 250V AC / 30V DC

• Maximum switching current - 10A per Channel

• Input type - Digital Logic Control

• Output contacts - NO, NC and COM

• Mounting type - PCB Module

Applications -

• Home automation

• Industrial automation

• Smart control systems

• Robotics

• IoT projects

• Lighting control

• Motor and pump control

• Appliance switching
