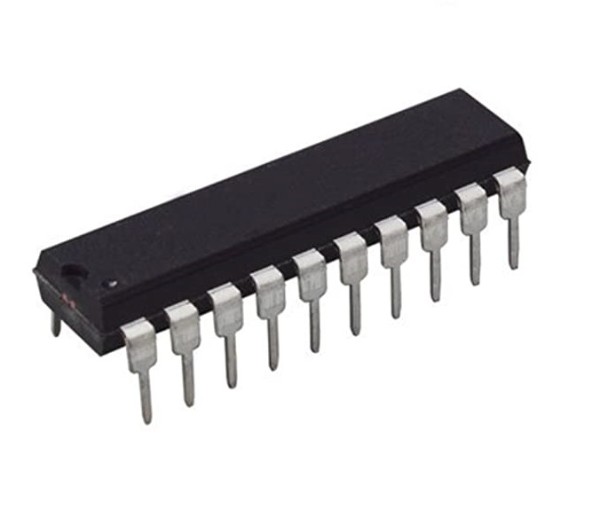

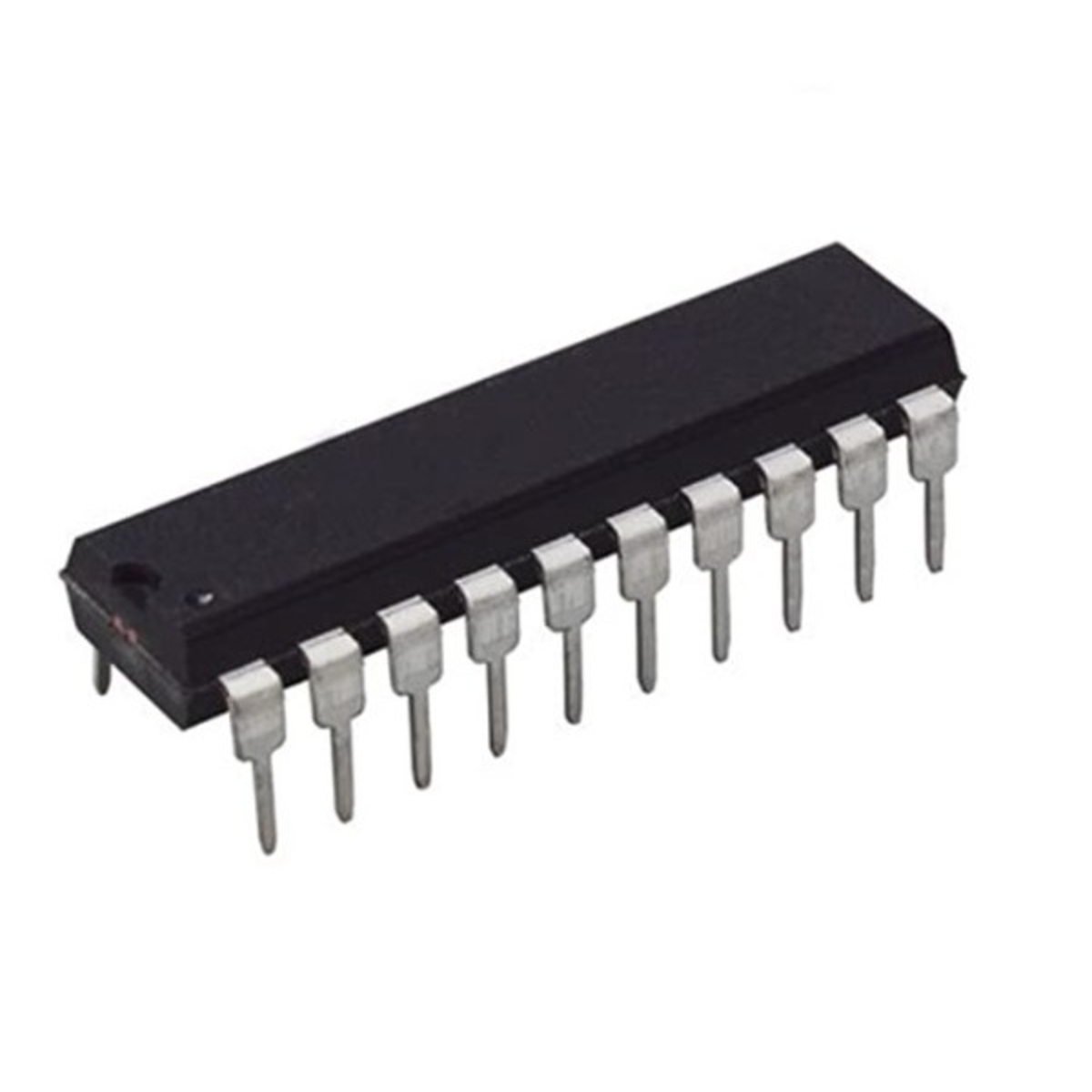

74LS241 DIP Octal Buffer and Line Driver with Non-Inverting 3-State Outputs
The 74LS241 is a high speed TTL integrated circuit designed to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers. This device contains eight independent non-inverting buffers organized into two groups of four. A unique feature of the 74LS241 is the complementary nature of its output-enable inputs: one group is enabled by an active-low signal, while the other is enabled by an active-high signal.
This configuration is specifically intended to facilitate the control of bidirectional data flow or to allow the device to function as a 4-bit multiplexer/demultiplexer. When the respective enable inputs are in their active states, the data is passed directly from the inputs to the outputs without inversion. When disabled, the outputs enter a high-impedance state, allowing multiple devices to share the same bus lines. Its high-current drive capability makes it excellent for driving high-capacitance loads and long transmission lines.
KEY FEATURES
- Octal non-inverting buffers for high-density bus interfacing
- 3-state outputs for efficient bus-oriented system design
- Dual 4-bit sections with one active-high and one active-low enable
- High-current drive capability for heavy bus loads
- Low power Schottky technology for high speed and low thermal dissipation
- Standard 20 pin dual in line package
SPECIFICATIONS
- Supply Voltage 4.75V to 5.25V
- Operating Temperature 0 to 70 Celsius
- Logic Type TTL Low Power Schottky
- Typical Propagation Delay 12ns
- High Level Output Current -15mA
- Low Level Output Current 24mA
- Input Voltage High 2.0V Minimum
INTERFACES
- 1A1 to 1A4 Data inputs group 1
- 2A1 to 2A4 Data inputs group 2
- 1G BAR Output enable group 1 active low
- 2G Output enable group 2 active high
- 1Y1 to 1Y4 Non-inverted outputs group 1
- 2Y1 to 2Y4 Non-inverted outputs group 2
- VCC Positive supply voltage
- GND Ground reference
