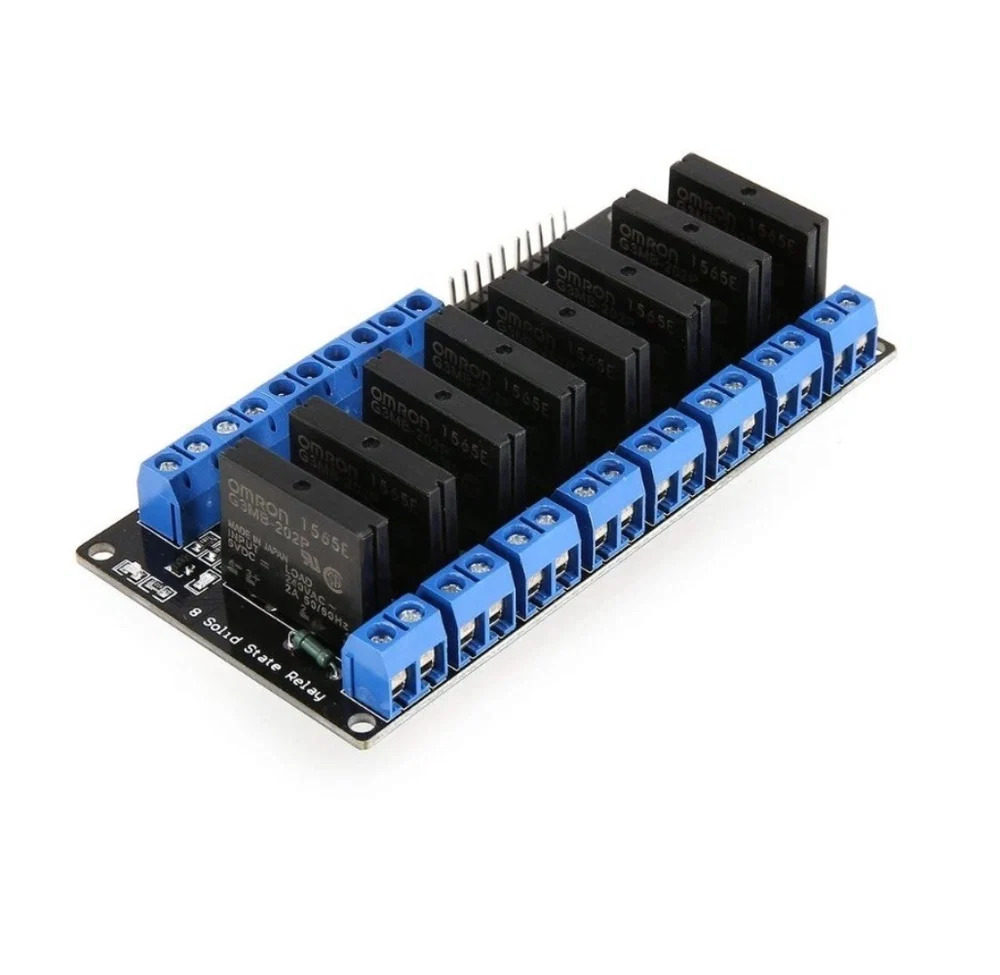

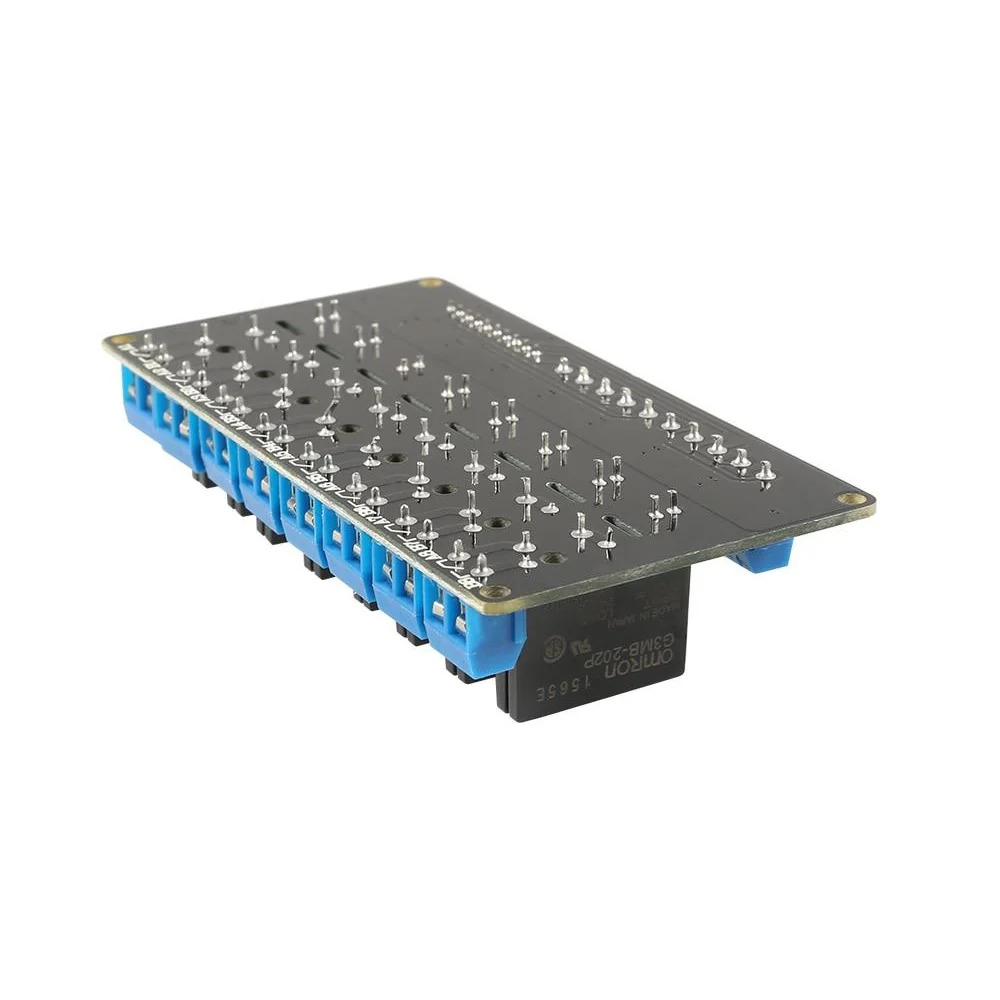

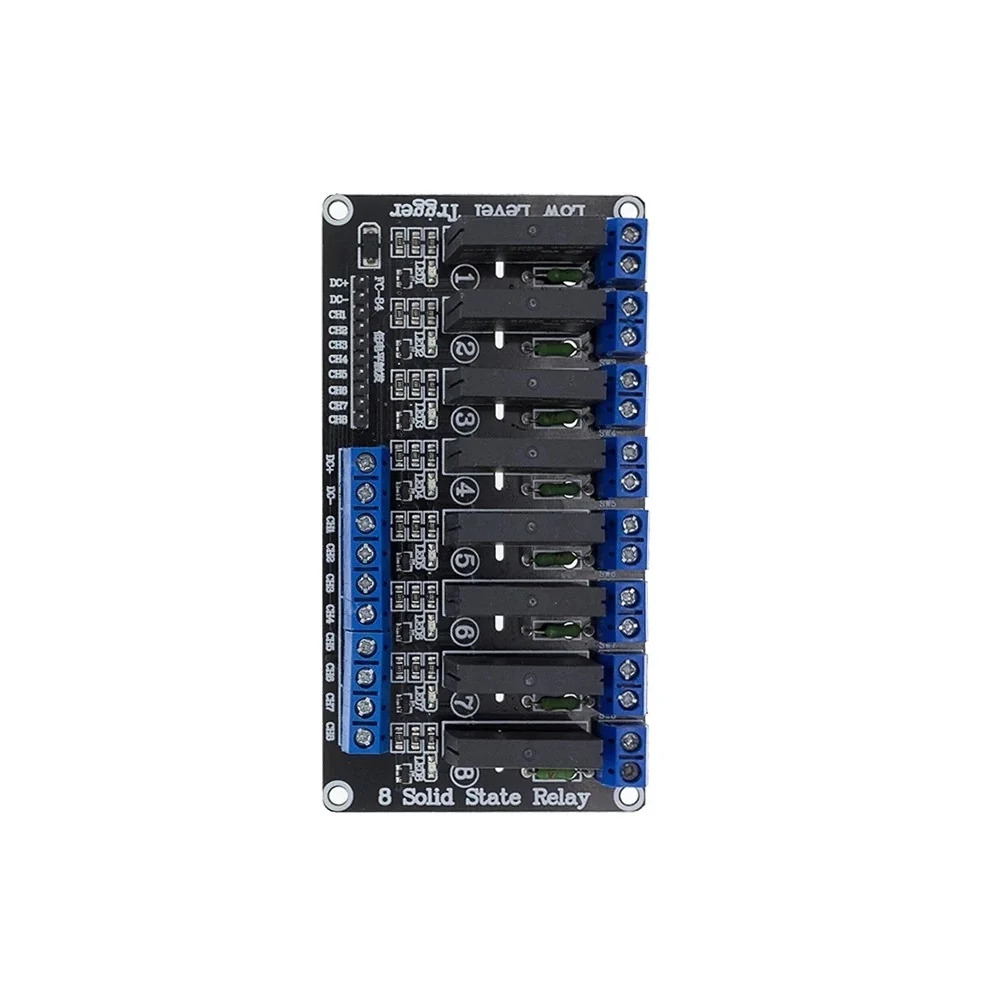

8 Channel 5V SSR Solid State Relay Module (Low Level Trigger)

The 8 Channel 5V SSR Solid State Relay Module is designed to control high voltage AC loads using low voltage control signals from microcontrollers. It uses solid state relays which provide silent operation, fast switching and long operational life compared to mechanical relays.

This module supports low level trigger control and can be directly interfaced with microcontrollers such as Arduino/ESP32/Raspberry Pi. It is widely used in home automation, industrial control systems, lighting control and electrical appliance switching applications.

Key Features

• 8 channel solid state relay control module
• Low level trigger input for microcontroller control
• Operates with 5V logic signals
• Silent operation without mechanical contacts
• High reliability and long switching life
• Suitable for AC load control applications
• Compatible with Arduino/ESP32/Raspberry Pi

Specifications

• Relay Type = Solid state relay SSR
• Number of Channels = 8
• Control Voltage = 5V
• Trigger Type = Low level trigger
• Control Signal = Digital input
• Application = AC load switching automation systems

Interfaces

• VCC = Module power supply input
• GND = Ground connection
• IN1 = Relay channel 1 control input
• IN2 = Relay channel 2 control input
• IN3 = Relay channel 3 control input
• IN4 = Relay channel 4 control input
• IN5 = Relay channel 5 control input
• IN6 = Relay channel 6 control input
• IN7 = Relay channel 7 control input
• IN8 = Relay channel 8 control input
• AC Load Terminal = Load connection output
