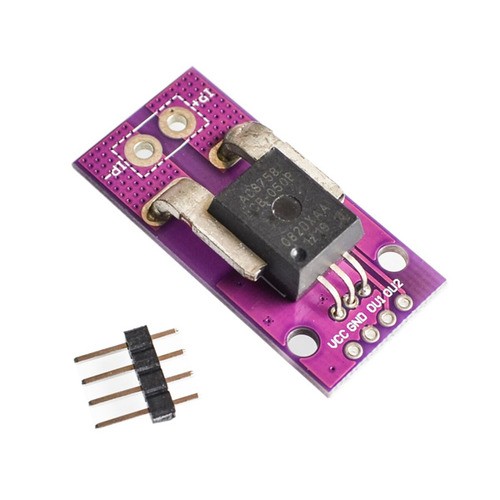

ACS758LCB-050B-PFF-T Hall Effect Based Linear Current Sensor Module
The ACS758LCB-050B-PFF-T Hall Effect based Linear Current Sensor Module is a high accuracy current sensing device designed to measure bidirectional current using integrated Hall effect technology. It provides an isolated analog voltage output proportional to measured current with low drift and high linearity.
This sensor is suitable for power monitoring, motor control, battery management systems, UPS systems, and industrial measurement applications requiring precise AC and DC current sensing. It supports robust performance over wide temperature and supply voltage conditions.
KEY FEATURES
- Hall effect based linear current sensing
- Bidirectional current measurement
- Isolated analog voltage output
- High accuracy and low drift
- Compact IP mount package
- Wide operating temperature range
- Suitable for AC and DC current monitoring
SPECIFICATIONS
- Model - ACS758LCB-050B-PFF-T
- Current Range - ±50A
- Sensor Type - Hall effect linear current sensor
- Output Type - Analog voltage proportional to current
- Supply Voltage - 3.3V to 5V DC typical
- Linearity - High accuracy linear response
- Response Time - Fast dynamic response
- Operating Temperature - -40 to +125 degree C
- Isolation - Electrical isolation between conductor and sensor
INTERFACES
- VCC - Power supply input
- GND - Ground connection
- VOUT - Analog voltage output
- IP plus - Current conductor input positive
- IP minus - Current conductor input negative
