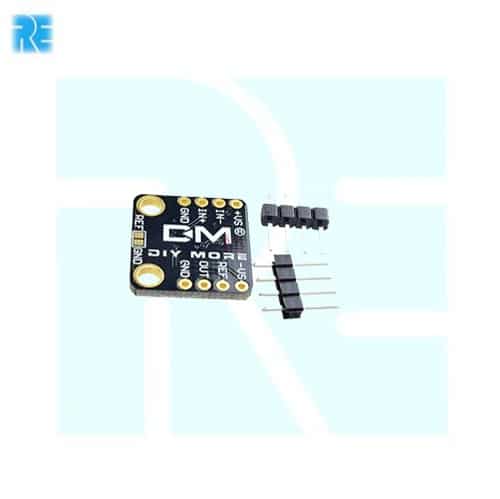

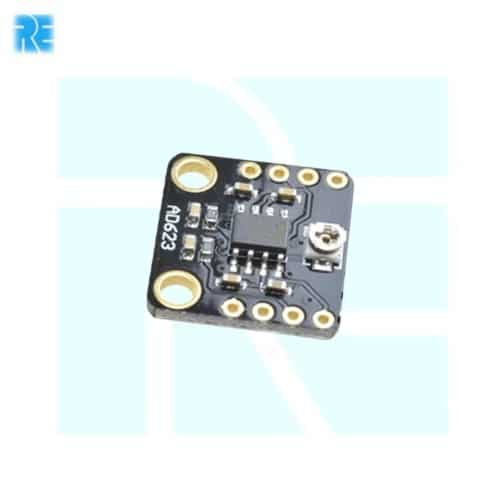

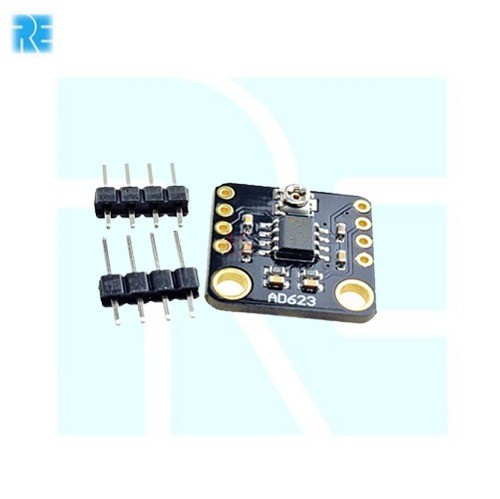

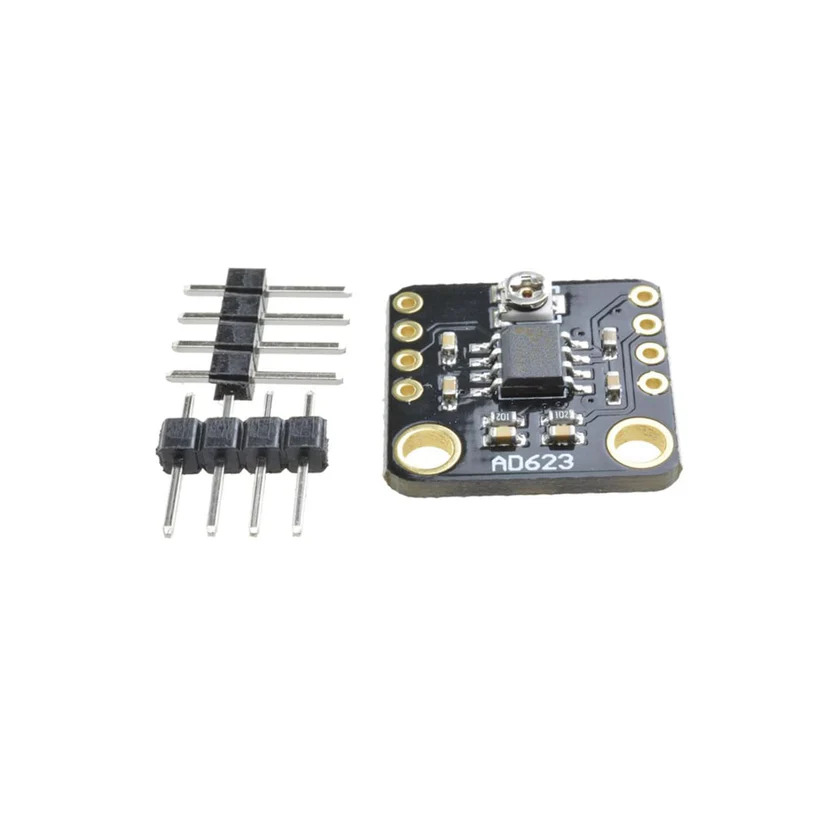

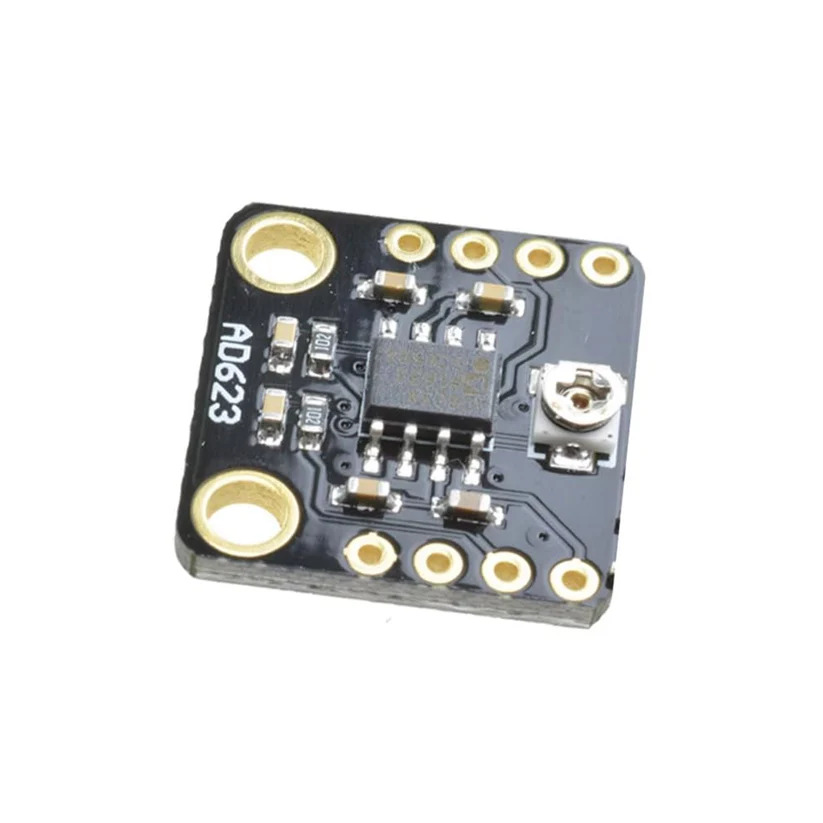

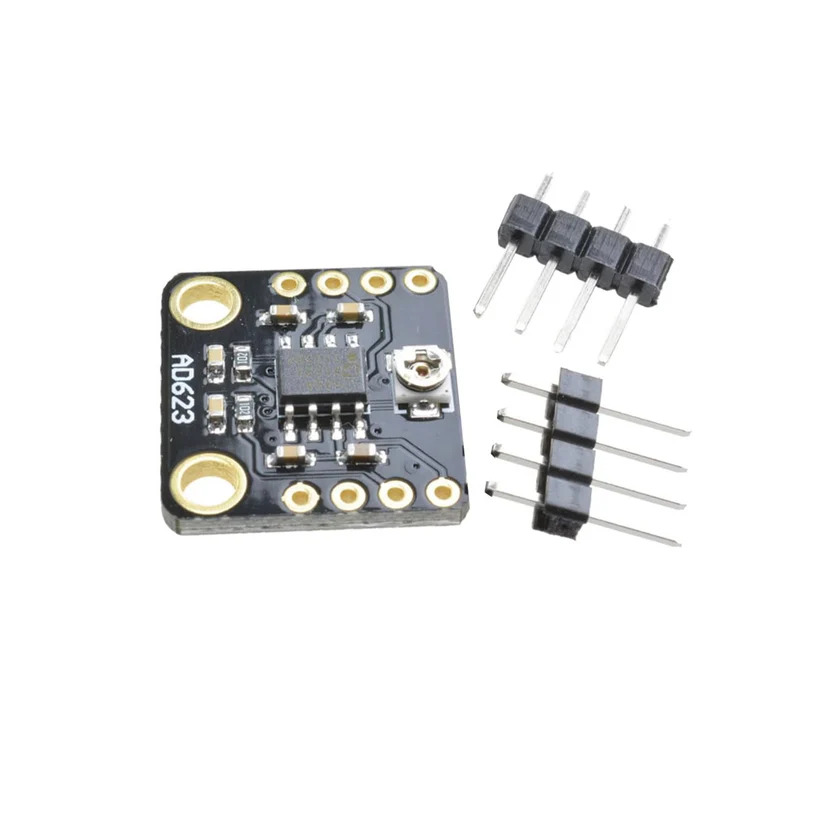

AD623 High Accuracy Programmable Gain Digital DC Instrument Amplifier Board Module

The AD623 Instrument Amplifier Module is a precision signal amplification module designed for measuring small differential signals from sensors and measurement circuits. It is based on the AD623 instrumentation amplifier which provides high accuracy amplification with excellent common mode noise rejection.

This module supports programmable gain adjustment using an external resistor which allows amplification of very low level signals such as those from strain gauges, load cells and biomedical sensors. It is widely used in data acquisition systems, sensor signal conditioning and microcontroller based measurement projects.

Key Features

• Based on AD623 high accuracy instrumentation amplifier
• Programmable gain adjustment using external resistor
• High common mode noise rejection
• Suitable for low level signal amplification
• Compact module for analog signal conditioning
• Stable DC signal amplification
• Suitable for sensor and measurement applications

Specifications

• Amplifier IC = AD623
• Amplifier Type = Instrumentation amplifier
• Operating Voltage = 3V-12V
• Gain Range = Adjustable using resistor
• Input Type = Differential analog input
• Output Type = Analog amplified output
• Application = Sensor signal conditioning and measurement systems

Interfaces

• VCC = Power supply input
• GND = Ground connection
• IN+ = Positive differential signal input
• IN- = Negative differential signal input
• OUT = Amplified analog output signal
• RG Pins = Gain setting resistor connection
