AD8317 RF Power Meter Logarithmic Detector Module – 1MHz to 10GHz

AD8317 RF Power Meter Logarithmic Detector Module – 1MHz to 10GHz

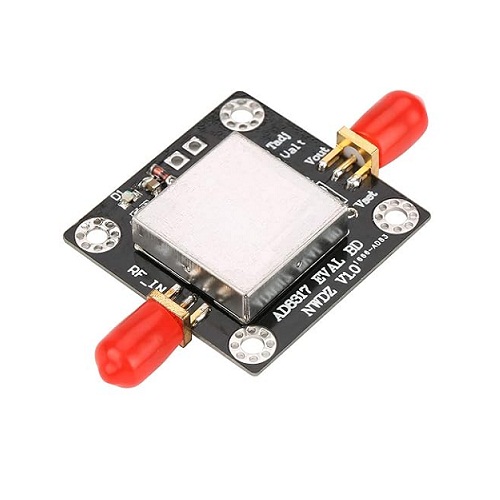

The AD8317 RF Power Meter Module is a high-performance logarithmic RF detector based on the Analog Devices AD8317 integrated circuit. Designed to measure RF signal strength over a wide frequency range from 1MHz to 10GHz, it converts RF input signals into a proportional DC output voltage. With a 60dB dynamic range, the module is ideal for RF signal measurement, wireless communication testing, amplifier control, field strength monitoring, and automatic gain control (AGC) applications.

Key Features -

• Based on the Analog Devices AD8317 logarithmic detector IC

• Wide frequency response from 1MHz to 10GHz

• Measures RF signals from -55dBm to 0dBm

• Converts RF signal power into a proportional DC voltage

• Wide dynamic range of approximately 60dB

• High measurement accuracy and fast response

• Suitable for RF signal monitoring and power measurement

• Compact module for easy integration into RF systems

Specifications -

• Product Type - RF Logarithmic Power Detector Module

• Detector IC - AD8317

• Frequency Range - 1MHz to 10GHz

• Input Signal Range - -55dBm to 0dBm

• Dynamic Range - 60dB

• Detection Method - Logarithmic RF Power Detection

• Output Type - Analog DC Voltage

• Measurement Characteristic - Output Voltage Proportional to Logarithm of RF Input Power

• Mounting Type - PCB Module

• Application - RF Signal Detection and Power Measurement

Applications -

• RF power measurement

• Wireless communication testing

• Signal strength monitoring

• RF laboratory experiments

• Antenna testing and alignment

• Environmental RF field strength detection

• Automatic Gain Control (AGC) systems

• Automatic Level Control (ALC) circuits

• RF amplifier monitoring

• Amateur radio and microwave projects
