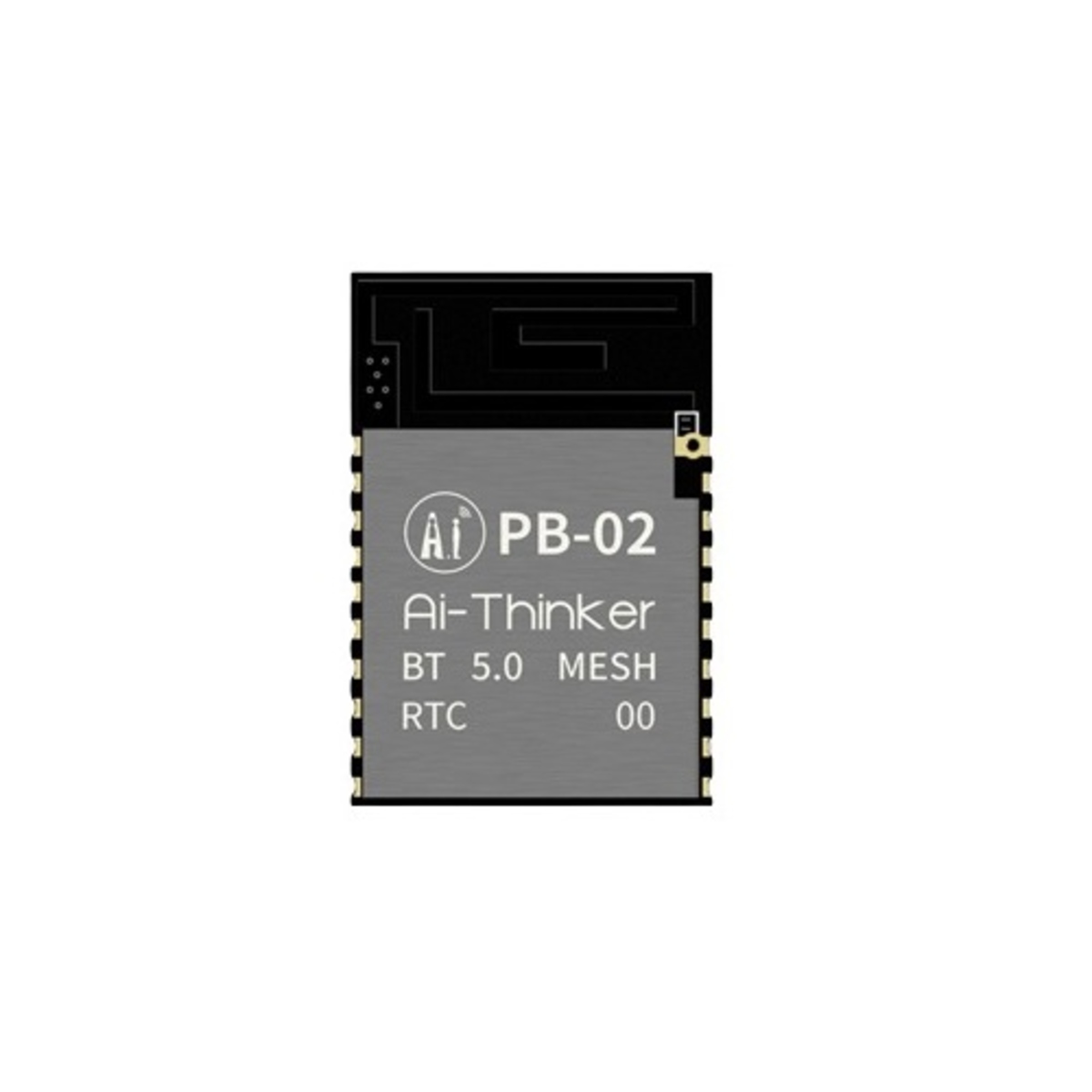

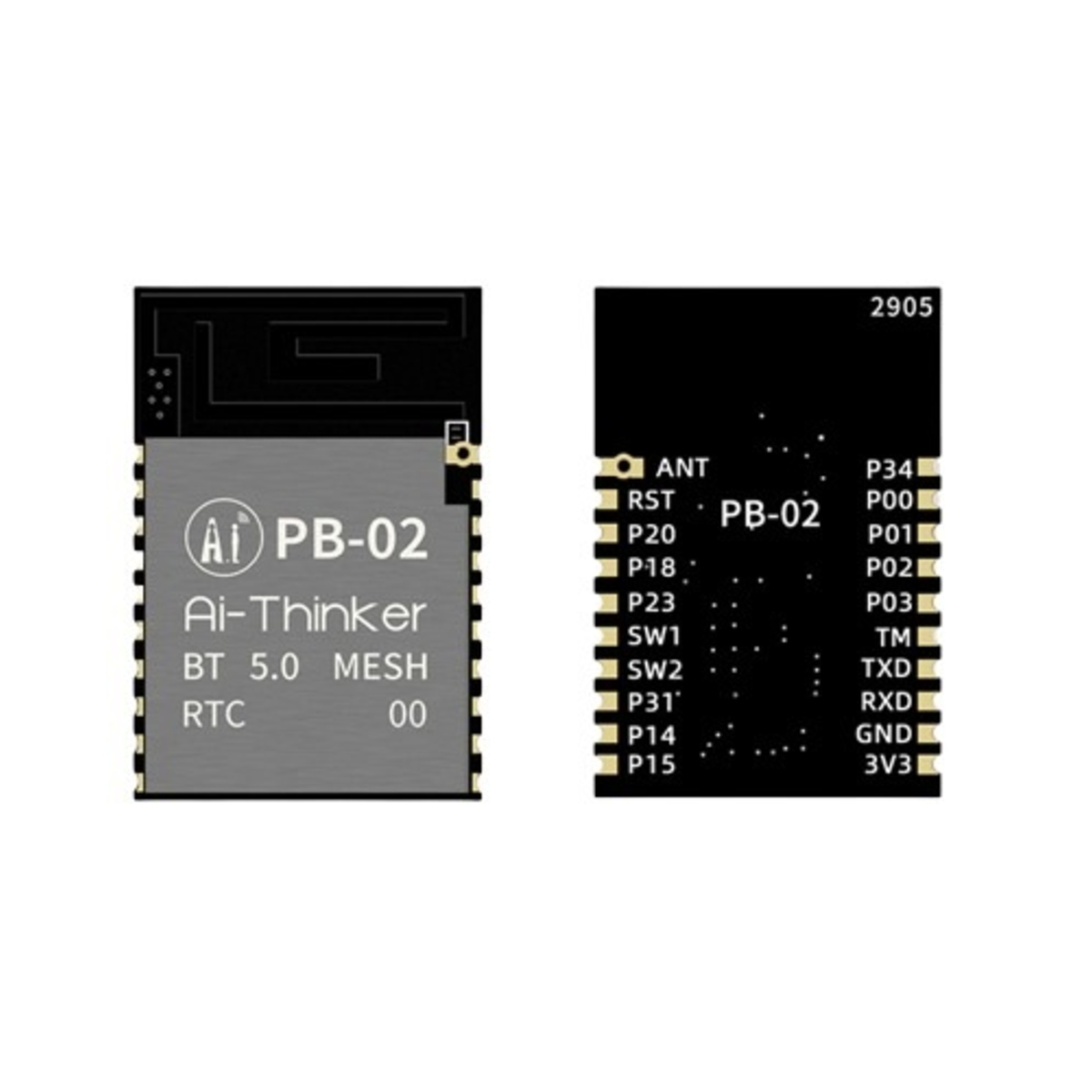

Ai-Thinker PB-02 Bluetooth 5.0 Low Power Module with AT Firmware, PHY6212 Chip and Mesh Networking (PB-02 BLE Module)

The PB-02 from Ai-Thinker is a compact Bluetooth 5.0 low-power wireless communication module based on the PHY6212 chipset. Featuring preloaded AT command firmware, onboard PCB antenna, and SIG Mesh networking support, it is ideal for smart home devices, IoT sensor networks, wireless automation systems, and embedded electronics applications.

Key Features -

• Bluetooth 5.0 low-power wireless communication

• PHY6212 high-performance Bluetooth SoC

• Preloaded AT command firmware

• Supports SIG Mesh networking

• Onboard PCB antenna for easy integration

• ARM Cortex-M0 32-bit processor architecture

• Low power consumption for battery-powered devices

• Supports OTA wireless firmware upgrades

• GPIO, PWM, SPI, ADC, and UART interfaces available

• Compact SMD-20 package design

Specifications -

• Product type - Bluetooth Low Energy (BLE) Module

• Model - PB-02

• Brand - Ai-Thinker

• Chipset - PHY6212

• Bluetooth version - Bluetooth 5.0

• Processor - ARM Cortex-M0 32-bit MCU

• SRAM - 138KB

• Frequency range - 2400MHz to 2483.5MHz

• Maximum transmit power - Up to 10dBm

• Receiving sensitivity - -93dBm (typical)

• Supply voltage - 2.7V to 3.6V DC

• Communication interface - UART (AT Commands), GPIO, PWM, SPI, ADC

• Package type - SMD-20

• Dimensions - 12.2 × 18.6 × 2.3mm

• Operating temperature - -40°C to +85°C

• Antenna type - Onboard PCB Antenna

• Mesh networking - SIG Mesh Supported

Applications -

• Smart home automation systems

• Smart lighting control

• IoT sensor networks

• Wireless automation devices

• Wearable electronics

• Bluetooth gateways and beacons

• Industrial monitoring systems

• Embedded wireless communication projects
