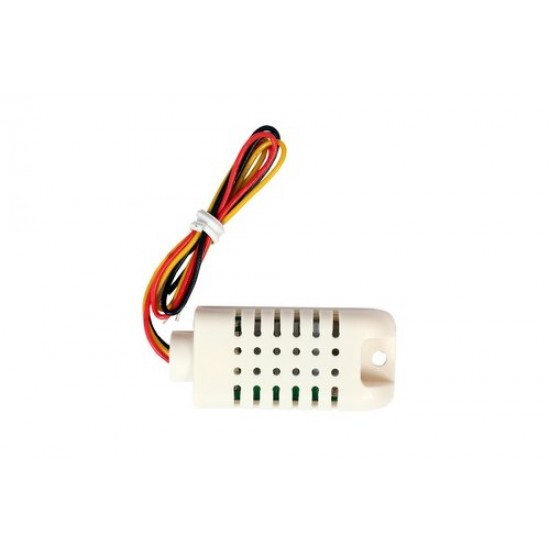

AM2302 (Wired DHT22) Temperature and Humidity Sensor (Digital Temperature & Humidity Sensor)

The AM2302 (Wired DHT22) Temperature and Humidity Sensor is a high-precision digital environmental sensor designed to measure ambient temperature and relative humidity with excellent accuracy and long-term stability. It features a factory-calibrated capacitive humidity sensing element and an NTC temperature sensor, providing calibrated digital output through a single-wire communication interface. The sensor is supplied with a pre-attached cable for easy installation and is widely used in weather stations, HVAC systems, greenhouse monitoring, home automation, IoT devices, and environmental monitoring applications.

Key Features -

• High-accuracy temperature and humidity measurement

• Factory calibrated digital output

• Single-wire digital communication interface

• Capacitive humidity sensing element

• Integrated NTC temperature sensor

• Low power consumption

• Long cable for convenient installation

• Stable long-term performance

• Fast response time

• Suitable for indoor and outdoor monitoring

Specifications -

• Product type - Digital Temperature and Humidity Sensor

• Model - AM2302 (Wired DHT22)

• Sensor type - Digital Temperature and Humidity Sensor

• Humidity range - 0% to 100% RH

• Humidity accuracy - Plus Minus 2% RH (Typical)

• Temperature range - Minus 40C to 80C

• Temperature accuracy - Plus Minus 0.5C (Typical)

• Operating voltage - 3.3V to 6V DC

• Output type - Single-Wire Digital Signal

• Sampling rate - 0.5Hz (One Reading Every 2 Seconds)

• Cable type - Pre-Attached Cable

Applications -

• Weather stations

• Home automation

• HVAC systems

• Greenhouse monitoring

• Environmental monitoring

• IoT devices

• Data logging systems

• Smart agriculture
