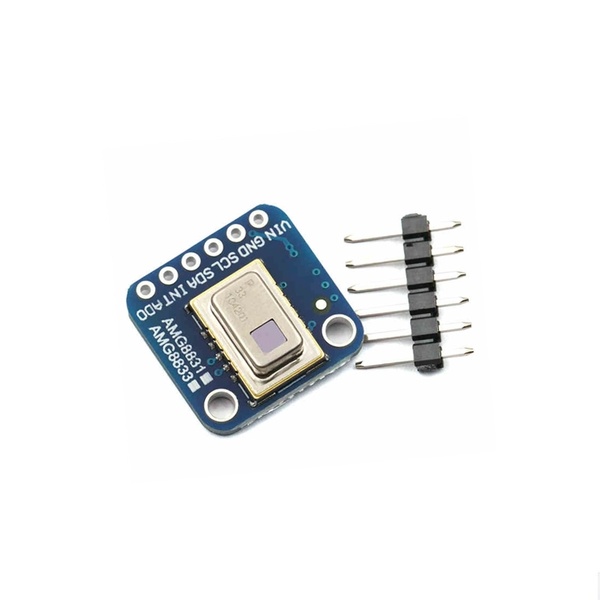

AMG8833 IR 8x8 Thermal Imager Array Temperature Sensor Module (I2C, 64-Pixel Infrared Thermal Camera, 3.3V)

The AMG8833 IR 8x8 Thermal Imager Array Temperature Sensor Module is a compact infrared thermal imaging sensor designed to measure surface temperature without physical contact. Based on the Panasonic AMG8833 Grid-EYE sensor, it features an 8 × 8 array of 64 independent infrared sensing elements that capture real-time thermal data. The module communicates through the I2C interface and is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other microcontroller platforms. It is ideal for thermal monitoring, human presence detection, heat mapping, industrial inspection, smart home automation, and robotics.

Key Features -

• Based on Panasonic AMG8833 Grid-EYE sensor

• 8 × 8 infrared thermal sensor array

• 64 independent temperature sensing pixels

• Non-contact temperature measurement

• I2C digital communication interface

• High thermal sensitivity

• Low power consumption

• Compact PCB module

• Real-time thermal image output

• Ideal for thermal monitoring and automation

Specifications -

• Product type - Infrared Thermal Imager Module

• Sensor model - AMG8833

• Sensor technology - Infrared Thermal Array

• Array resolution - 8 × 8 Pixels (64 Pixels)

• Temperature measurement range - Approximately 0C to 80C

• Temperature resolution - Approximately 0.25C

• Communication interface - I2C

• Operating voltage - 3.3V DC

• Frame rate - Up to 10FPS

• Mounting type - PCB Module

• Operating temperature - -20C to +80C

Applications -

• Thermal monitoring

• Human presence detection

• Heat mapping

• Industrial inspection

• Smart home automation

• Fire detection systems

• Robotics

• Embedded electronics
