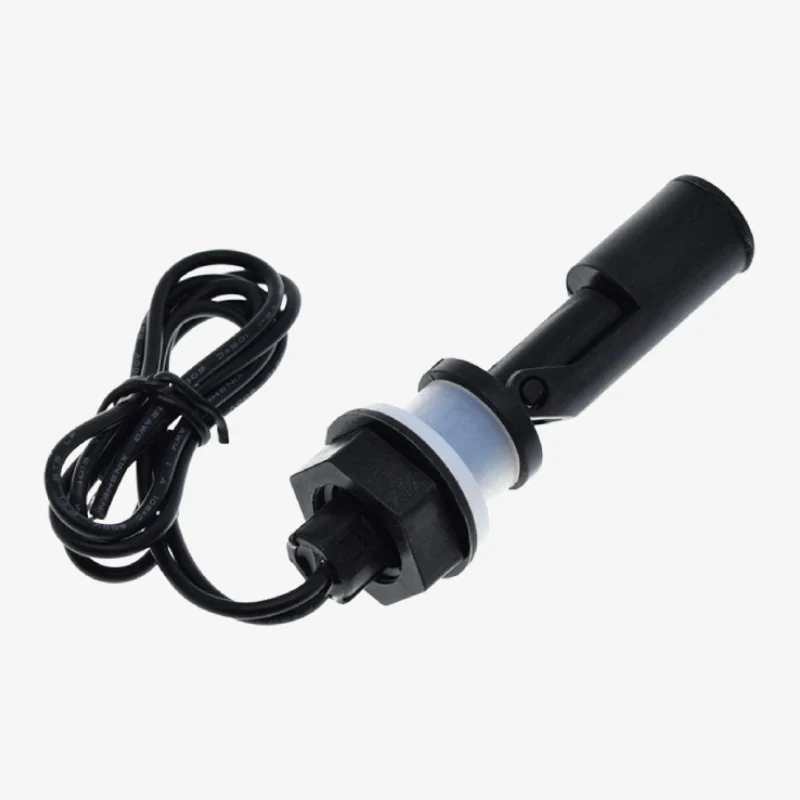

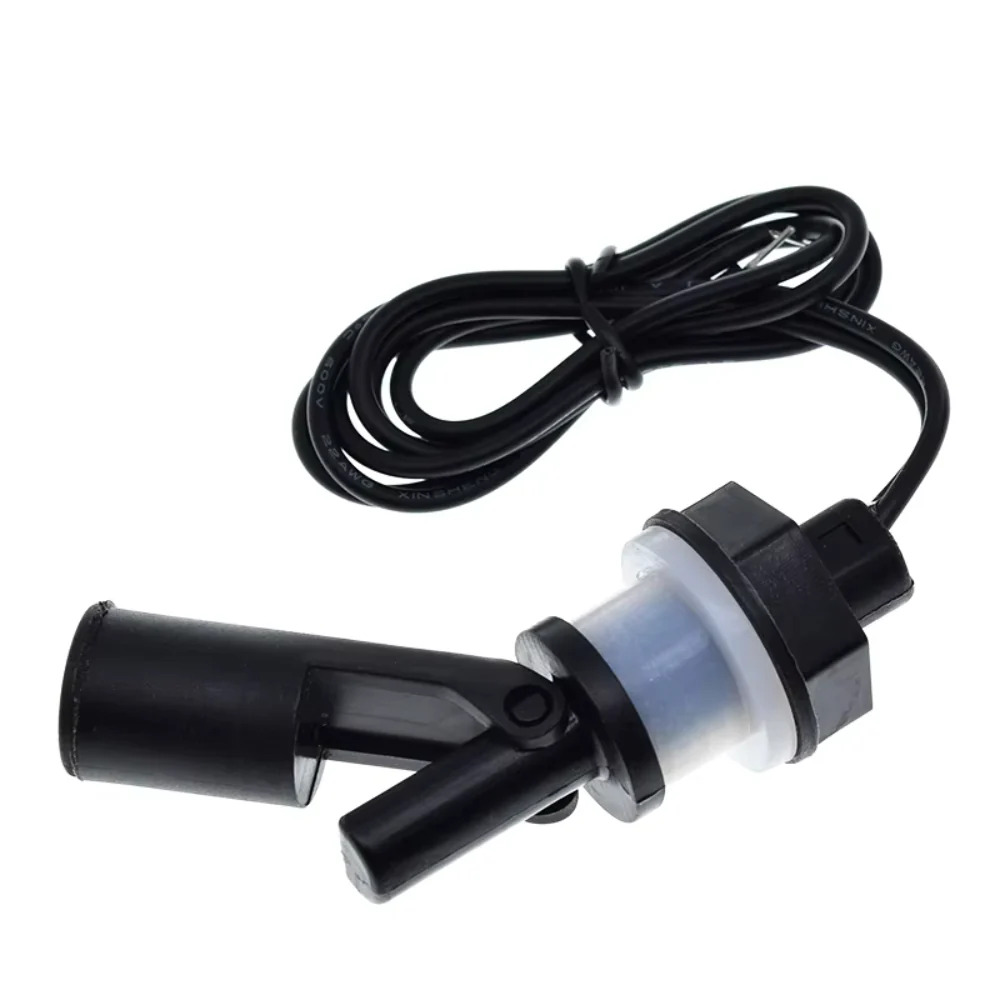

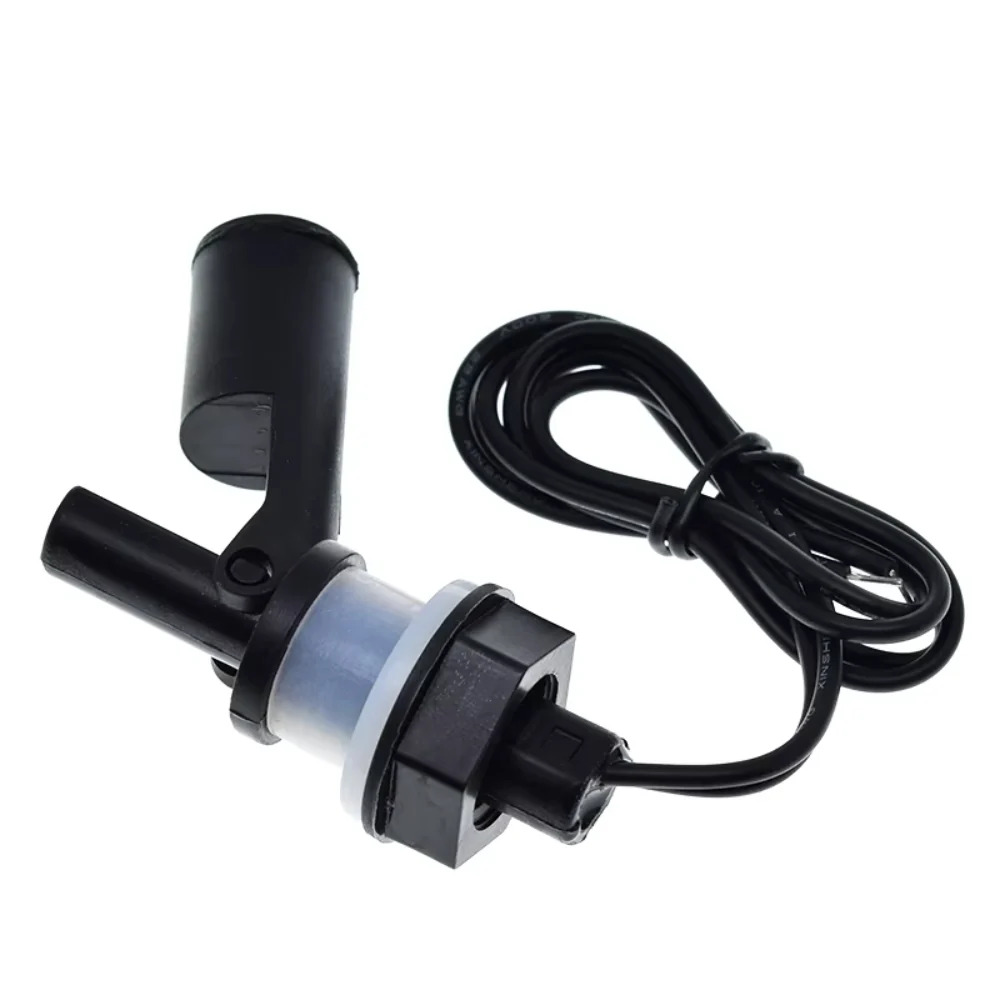

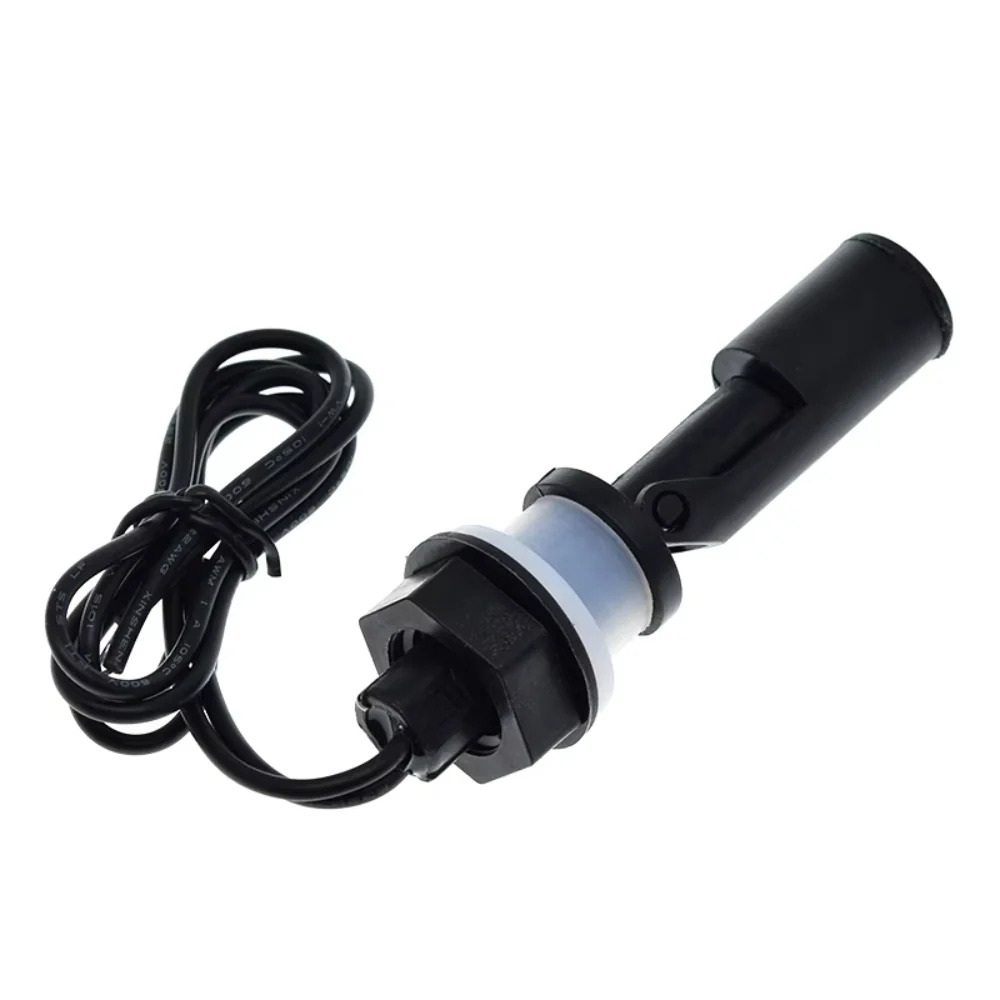

Anti Corrosion Water Level Sensor with Ball Float Switch

The Anti Corrosion Water Level Sensor with Ball Float Switch is a durable liquid level detection device designed for long-term monitoring of water levels in tanks, reservoirs, and industrial containers. It uses a magnetic ball float and an internal reed switch to provide a reliable digital ON/OFF output when the liquid reaches a preset level. Its anti-corrosion construction makes it suitable for continuous use in water and other compatible non-aggressive liquids.

Key Features -

• Anti-corrosion body construction

• Magnetic ball float with internal reed switch

• Reliable liquid level detection

• Digital ON/OFF switching output

• Compact and durable design

• Easy threaded installation

• Suitable for water and compatible non-aggressive liquids

• Low power operation

• Stable and maintenance-free performance

• Easy interfacing with controllers and relays

Specifications -

• Product type - Water Level Float Switch

• Sensor type - Magnetic Ball Float Switch

• Operating voltage - Up to 100V AC/DC (Model Dependent)

• Switch type - Normally Open or Normally Closed (Orientation Dependent)

• Current rating - Typically Up to 0.5A

• Contact type - Reed Switch

• Mounting type - Vertical Threaded Mount

• Body material - Anti-Corrosion Plastic or Stainless Steel (Model Dependent)

• Working temperature - Suitable for Standard Liquid Environments

• Output type - Digital ON/OFF

Applications -

• Water tank level monitoring

• Automatic water filling systems

• Industrial liquid level control

• Water storage tanks

• Pump protection systems

• Water purification equipment

• Aquarium and reservoir monitoring

• Embedded automation projects
