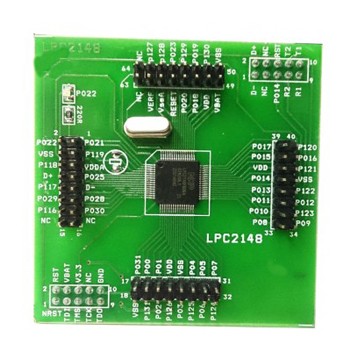

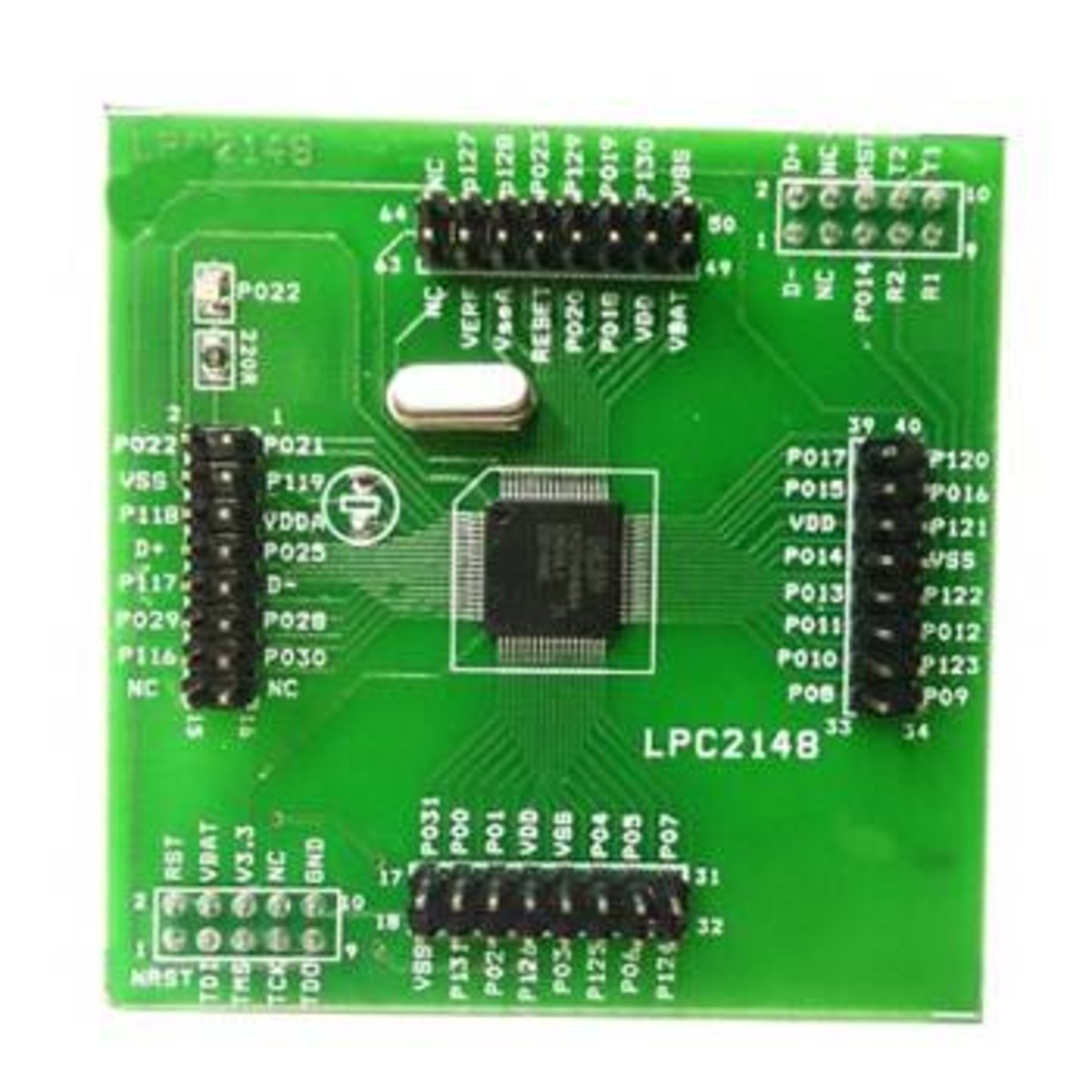

LPC2148 ARM7 Header Development Board (ARM7 Embedded Development Board)

The LPC2148 ARM7 Header Development Board is a compact embedded development platform based on the LPC2148 ARM7TDMI-S microcontroller. It is designed for embedded systems development, robotics, industrial automation, and educational applications. The board provides easy access to GPIO and peripheral interfaces through expansion headers, enabling rapid prototyping and development of ARM-based applications. It supports USB, UART, SPI, I2C, ADC, DAC, PWM, and other onboard peripherals.

Key Features -

• Based on LPC2148 ARM7TDMI-S microcontroller

• Compact header board design

• Easy access to GPIO and peripheral pins

• Supports USB device interface

• Multiple communication interfaces

• Compatible with ARM development tools

• Expansion header connectors

• Onboard reset circuitry

• Crystal oscillator support

• Ideal for embedded development and learning

Specifications -

• Product type - ARM Development Board

• Microcontroller - LPC2148 ARM7TDMI-S

• Architecture - 32-Bit ARM7

• Flash memory - 512KB

• SRAM - 40KB

• Operating voltage - 3.3V DC

• Clock frequency - Up to 60MHz

• Interface support - USB, UART, SPI, I2C, PWM, ADC and DAC

• Board type - ARM Header Development Board

• Mounting type - PCB Module

Applications -

• Embedded systems development

• Robotics and automation

• Industrial control

• Educational projects

• USB communication applications

• IoT development

• Data acquisition systems

• ARM microcontroller learning
