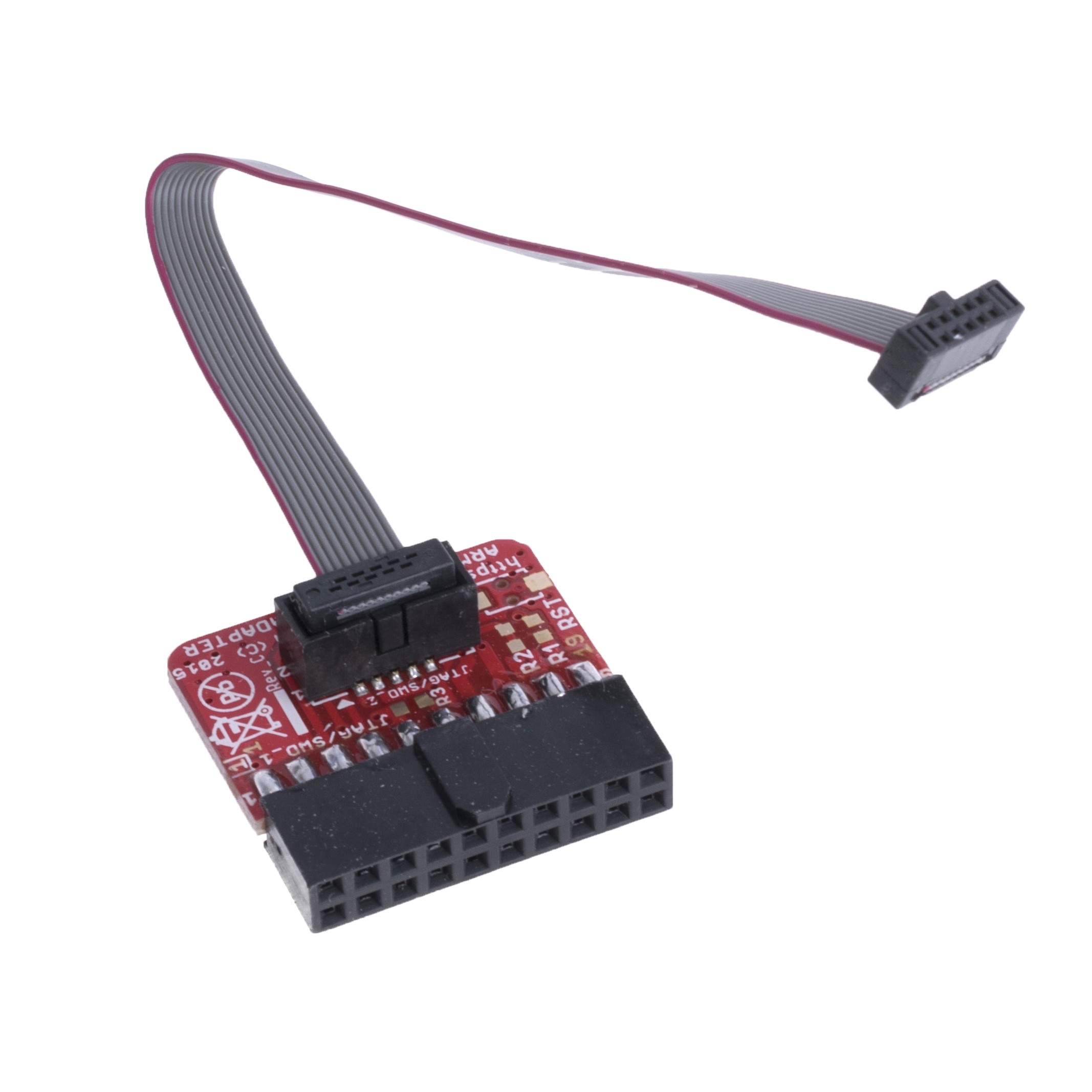

ARM-JTAG-20-10 ARM Micro JTAG Adapter (20-Pin to 10-Pin JTAG Converter)

The ARM-JTAG-20-10 ARM Micro JTAG Adapter is a compact passive interface board designed to convert a standard 20-pin ARM JTAG connector to a 10-pin micro JTAG connector. It enables seamless compatibility between ARM-based development boards and debugging or programming tools that use different JTAG header formats. The adapter provides reliable signal routing for stable communication during firmware programming, debugging, and in-system development.

This adapter is ideal for ARM microcontroller development, embedded system debugging, firmware programming, and hardware prototyping. Its plug-and-play design allows developers to quickly connect JTAG programmers and debuggers to compatible target boards without additional circuitry.

Key Features -

• Converts standard 20-pin JTAG to 10-pin micro JTAG interface

• Compatible with ARM JTAG programmers and debuggers

• Passive adapter with direct signal routing

• Reliable signal transmission for debugging and programming

• Compact and lightweight PCB design

• Plug-and-play operation

• No external power required

• Suitable for ARM microcontroller development

• Easy connection between different JTAG header formats

• Ideal for embedded system debugging and firmware programming

Specifications -

• Product type - JTAG Interface Adapter

• Model - ARM-JTAG-20-10

• Connector type - 20-Pin to 10-Pin JTAG

• Interface type - JTAG

• Adapter type - Passive Signal Adapter

• Compatibility - ARM JTAG Debuggers and Target Boards

• Power requirement - Not Required (Passive Adapter)

• Application - ARM Microcontroller Programming and Debugging

• Package / Mounting type - PCB Adapter Board

Applications -

• ARM microcontroller programming

• Embedded system debugging

• Firmware development and testing

• In-system programming (ISP)

• JTAG interface conversion

• PCB development and prototyping

• Educational embedded electronics

• Industrial controller development

• Hardware debugging and diagnostics

• ARM development board integration
