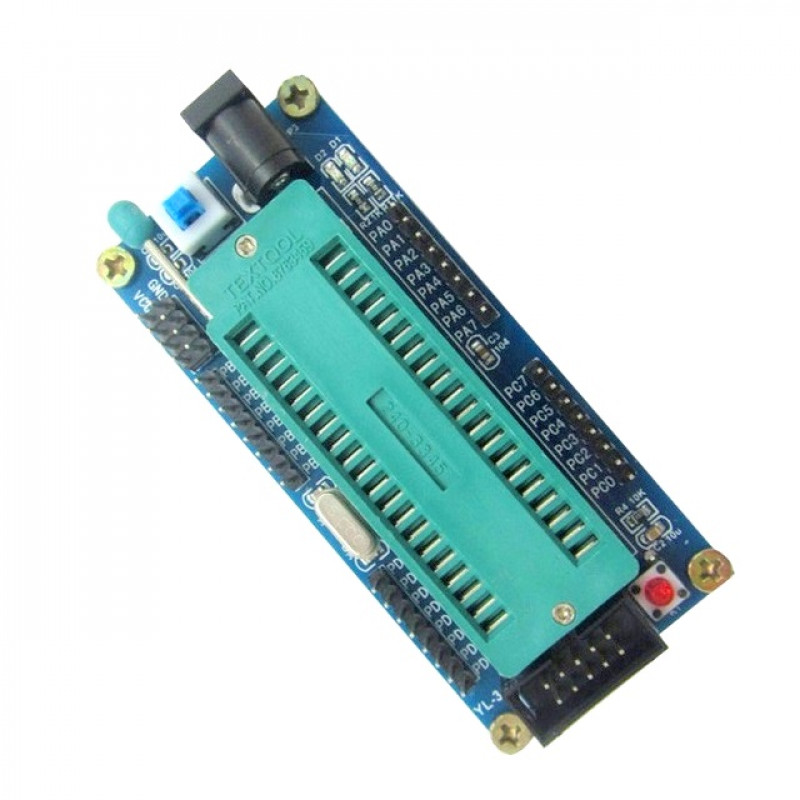

ATMEGA16 ATmega32 ISP AVR Minimum Development System Board Module
The ATMEGA16 ATmega32 ISP AVR Minimum Development System Board is designed to provide a simple and reliable platform for developing applications using AVR microcontrollers. It supports both ATMEGA16 and ATmega32 microcontrollers and includes essential circuitry required for programming and running embedded applications.
The board features an ISP programming interface which allows easy firmware uploading using AVR programmers. It also provides clock oscillator support, reset circuitry and accessible I O pins, making it suitable for learning embedded programming, prototyping and interfacing with sensors and modules.
Key Features
- Supports ATMEGA16 and ATmega32 AVR microcontrollers
- On board ISP programming interface
- Includes crystal oscillator clock circuit
- On board reset button for manual reset
- Easy access to microcontroller I/O pins
- Suitable for embedded system learning and development
- Compatible with AVR programming tools
Specifications
- Supported MCU = ATMEGA16/ATmega32
- Architecture = AVR 8 bit microcontroller
- Programming Method = ISP in system programming
- Clock Source = Crystal oscillator
- Operating Voltage = 5V
- Board Type = Minimum system development board
- Application = Embedded system development and prototyping
Interfaces
- VCC = Power supply input
- GND = Ground connection
- ISP Header = AVR programming interface
- PORTA Pins = Digital input output
- PORTB Pins = Digital input output
- PORTC Pins = Digital input output
- PORTD Pins = Digital input output
- RESET = Microcontroller reset control
