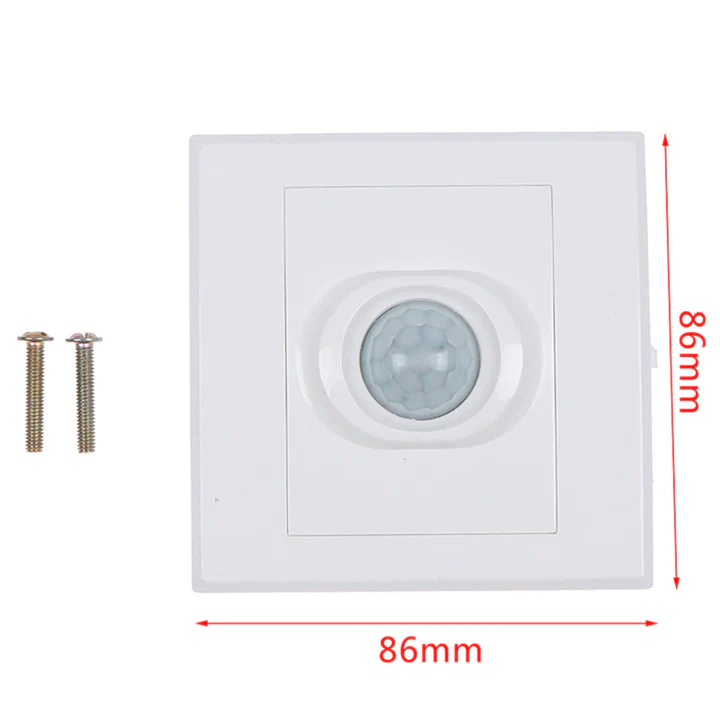

Automatic Infrared PIR Body Motion Sensor Switch – Wall Mount
The Automatic Infrared PIR Body Motion Sensor Switch is a wall-mounted motion-activated switch designed to automatically control lights and electrical loads based on human movement. It uses Passive Infrared (PIR) sensing technology to detect body heat and turns connected devices ON when motion is detected and OFF after a preset delay.
This ready-to-use switch is ideal for homes, offices, corridors, staircases, and energy-saving automation systems, eliminating the need for manual switching.
Key Features
• Automatic motion-based switching
• Passive Infrared (PIR) detection
• Wall-mounted design
• Adjustable delay time
• Adjustable light sensitivity (day/night control)
• Wide detection angle
• Energy-saving operation
• Direct AC load control
• Easy installation
Specifications
Sensor Type: PIR motion detector
Mount Type: Wall mount
Operating Voltage: 110–240V AC (model dependent)
Detection Distance: 5–8 meters (typical)
Detection Angle: ~120°
Delay Time: Adjustable (10 sec – 7 min approx.)
Light Control: Adjustable LUX (day/night)
Load Capacity: Up to 100–300W LED / 500–800W incandescent (typical)
Power Consumption: Low
Housing Material: ABS/Plastic

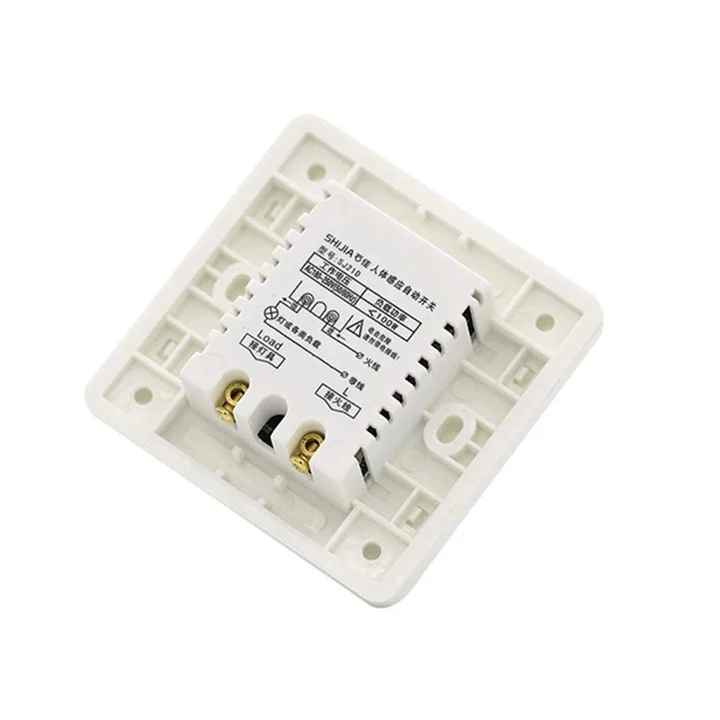

Interfaces / Connections
Live (L IN) – AC input
Neutral (N) – AC neutral
Load (L OUT) – Output to light/device
Applications
• Automatic room lighting
• Staircase and corridor lights
• Washrooms
• Parking areas
• Offices and classrooms
• Home automation
• Energy-saving systems
• Security lighting
