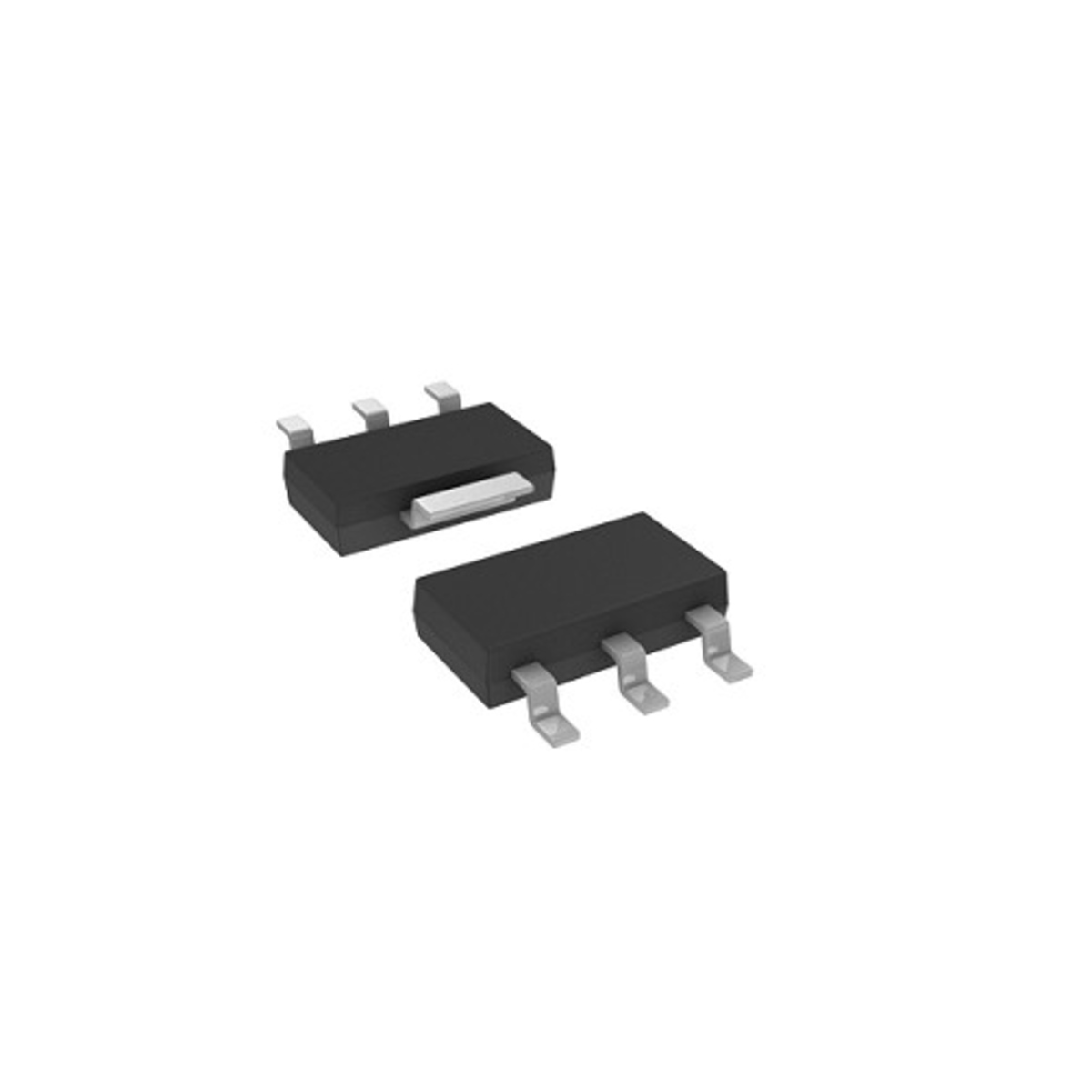

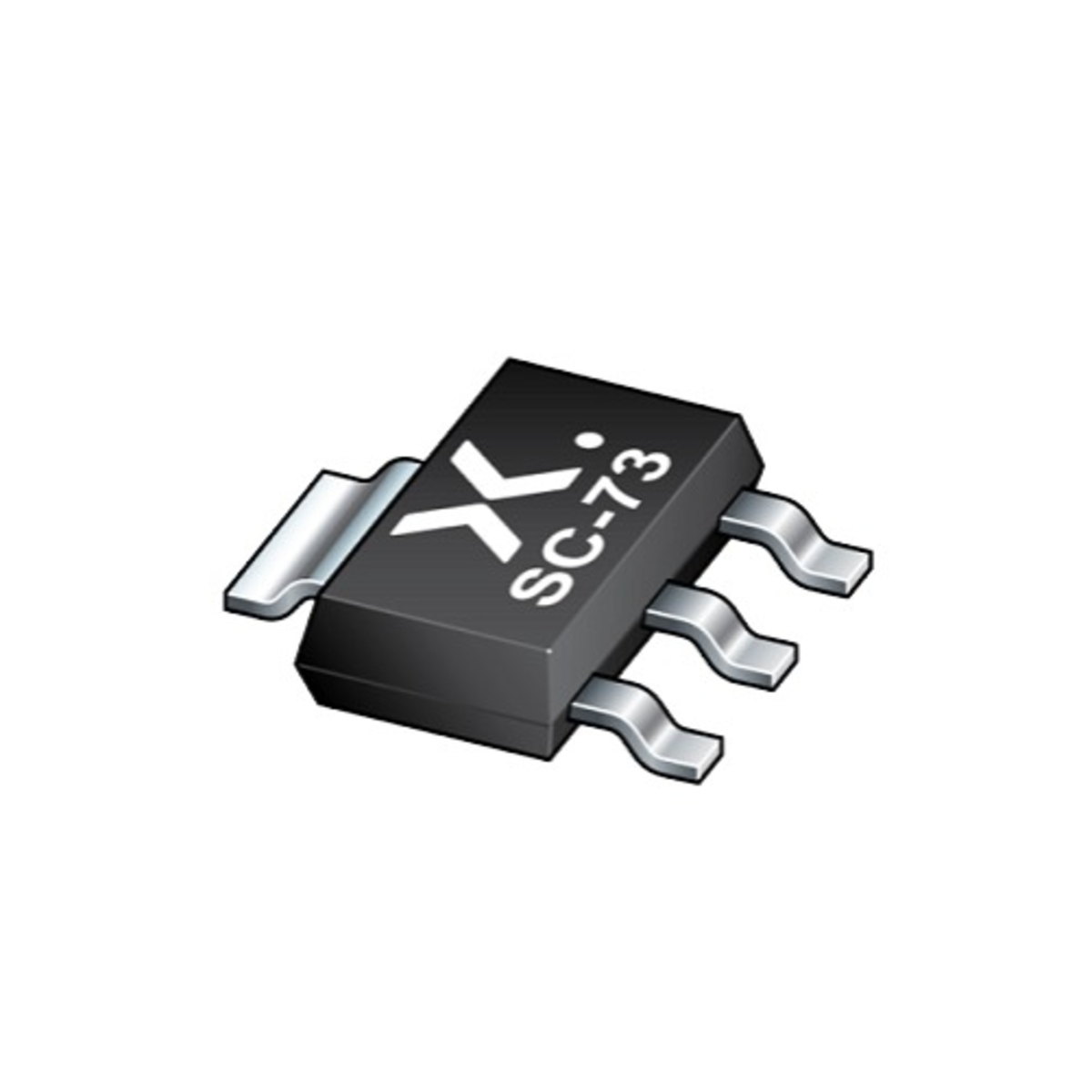

BCP56-16 NPN Bipolar Transistor (80V, 1A, SOT 223)

The BCP56-16 is an NPN bipolar junction transistor designed for medium power switching and amplification applications. It supports a collector emitter voltage up to 80V and collector current up to 1A, with a power dissipation rating of 1.6W. Its compact SOT 223 surface mount package provides effective thermal performance for power management, driver, control and general purpose electronic circuits.

Key Features -

• NPN bipolar junction transistor

• 80V maximum collector emitter voltage

• 1A maximum collector current

• 1.6W power dissipation

• DC current gain from 100 to 250

• Minimum transition frequency of 100MHz

• SOT 223 surface mount package

• SC 73 package designation

• Suitable for switching and amplification

• Compact medium power transistor

Specifications -

• Part Number: BCP56-16

• Product Type: Bipolar Junction Transistor

• Transistor Type: NPN

• Collector Emitter Voltage VCEO: 80V Maximum

• Collector Current IC: 1A Maximum

• Power Dissipation: 1.6W

• DC Current Gain hFE: 100 to 250

• Transition Frequency fT: 100MHz Minimum

• Maximum Junction Temperature: 150C

• Package: SOT 223

• Package Name: SC 73

• Dimensions: 6.5 x 3.5 x 1.65mm

• Mounting Type: SMD

Applications -

• Medium power switching circuits

• Driver circuits

• Power management circuits

• Signal amplification

• Relay and load drivers

• Industrial control electronics

• Consumer electronics

• Embedded systems

• Voltage regulation circuits

• General purpose transistor circuits
