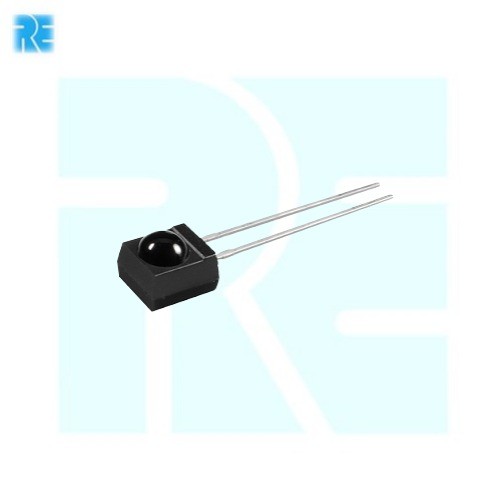

BPV22NF Photodiode Side View 790nm to 1050nm Plus Minus 60 Degree Silicon PIN IR Sensor Detector (BPV22NF Photodiode)

The BPV22NF is a silicon PIN photodiode designed for infrared light detection and optical sensing applications. It features a side view package with daylight blocking filter and provides high radiant sensitivity with fast response time for infrared communication and sensing systems.

Key Features -

• Silicon PIN photodiode detector
• Side view package design
• Spectral response range 790nm to 1050nm
• Peak sensitivity at 940nm
• Plus minus 60 degree angle of half sensitivity
• Fast response time and high radiant sensitivity
• Daylight blocking filter for IR applications

Specifications -

• Model - BPV22NF
• Sensor type - silicon PIN photodiode
• Spectral range - 790nm to 1050nm
• Peak wavelength - 940nm
• Viewing angle - 120 degree total
• Reverse voltage - 60V maximum
• Dark current - approx 2nA typical
• Active area - approx 7.5mm square
• Package type - radial side view through hole
• Operating temperature - approx -40 to 100 degree C

Applications -

• Infrared remote control systems
• Optical and infrared sensing
• Free air data transmission systems
• IR communication receivers
• Industrial automation equipment
• Light detection and measurement circuits

Pinout Configuration -

• Pin 1 - anode
• Pin 2 - cathode
