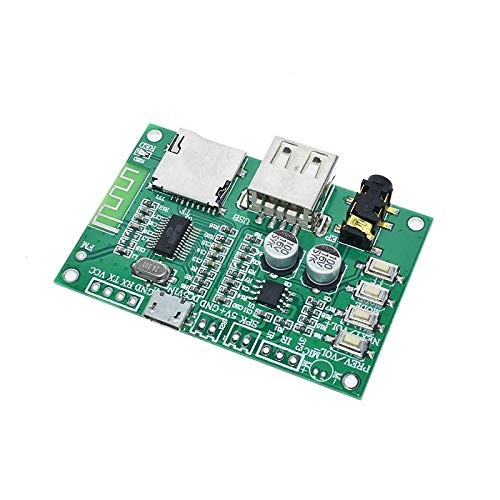

BT201 Bluetooth 5.0 Dual Mode Audio Amplifier Module (TF Card, 5V DC)

The BT201 Bluetooth 5.0 Dual Mode Audio Amplifier Module is a compact wireless audio module designed for Bluetooth music playback and local audio playback through a TF card. It combines Bluetooth audio reception with an integrated power amplifier, making it suitable for compact speaker and portable audio applications.

The module operates from a 5V DC supply and supports Bluetooth 5.0 dual mode connectivity for wireless audio streaming. Its integrated TF card interface provides an additional option for playing stored audio files without requiring a separate audio source.

KEY FEATURES -

• Bluetooth 5.0 dual mode wireless audio

• Supports Bluetooth audio streaming

• TF card interface for local audio playback

• Supports lossless and common audio formats

• Integrated audio power amplifier

• 5V DC operation

• Compact PCB module design

• Suitable for DIY Bluetooth speaker projects

SPECIFICATIONS -

• Model = BT201

• Operating Voltage = 5V DC

• Bluetooth Version = 5.0 dual mode

• Audio Input = Bluetooth / TF card

• Output Power = Up to 5W per channel

• Speaker Impedance = 4 - 8 Ohm

• TF Card Capacity = Up to 32GB

• Audio Format = Lossless and common audio formats

• Board Size = Approx. 50 x 35mm

APPLICATIONS -

• DIY Bluetooth speakers

• Portable audio systems

• Wireless speaker projects

• Battery powered audio devices

• Embedded audio systems

• TF card music players

• Custom multimedia projects
